Benefits
Conforms to Irregular Surfaces
The aluminum backing allows 3M Safety-Walk 510 to follow irregular surface contours, making it suitable for applications where rigid or flat anti-slip tapes may be difficult to install.
High-Friction Mineral Surface
The mineral-coated surface provides a high-friction walking surface for stairs, ramps, platforms and equipment access areas.
Suitable for Industrial Traffic
3M 510 is designed for light to heavy shoe traffic, making it suitable for a wide range of industrial and commercial applications.
Black Industrial Appearance
The black finish provides a traditional industrial appearance and can integrate easily with dark machinery, platforms and metal structures.
Suitable for Wet, Dry and Oily Conditions
The product is designed for selected applications involving dry, wet or oily conditions, subject to proper surface preparation and installation.
Conformable Around Surface Details
The material can conform around:
- Corners
- Curves
- Rivets
- Screw heads
- Diamond plate patterns
- Irregular metal surfaces
Technical Specifications
| Property | 3M™ Safety-Walk™ 510 |
|---|---|
| Product Series | 500 Series Conformable |
| Product Number | 510 |
| Color | Black |
| Surface | Mineral-coated |
| Backing / Carrier | Aluminum foil |
| Adhesive | Pressure-sensitive adhesive |
| Surface Type | High-friction mineral |
| Applied Thickness | Approx. 0.91 mm |
| Applied Weight | Approx. 885 g/m² |
| Minimum Application Temperature | 4°C |
| Minimum Service Temperature | -40°C |
| Maximum Service Temperature | 79°C |
| Intended Traffic | Light to heavy shoe traffic |
| Typical Conditions | Dry, wet and oily |
| Slip Resistance | High-traction Safety-Walk construction |
| NFSI | High Traction Certified |
The Safety-Walk selection information identifies the 500 Series Conformable construction at approximately 0.91 mm applied thickness and 885 g/m² applied weight, with an application temperature down to approximately 4°C and a service temperature range of approximately -40°C to 79°C. Exact performance values depend on the specific product configuration and test method.
Applications
Industrial Stairs
3M Safety-Walk 510 can be used on:
- Metal stairs
- Industrial steps
- Stair edges
- Maintenance stairs
- Equipment access steps
Ladders
The conformable aluminum backing makes 510 suitable for:
- Ladder rungs
- Step ladders
- Industrial ladders
- Equipment access ladders
Diamond Tread Plates
3M 510 is particularly useful on diamond plate / checker plate surfaces, where the aluminum backing can conform to the raised pattern.
Ramps
Potential applications include:
- Loading ramps
- Warehouse ramps
- Equipment ramps
- Vehicle access ramps
- Industrial platforms
Industrial Platforms
- Machine platforms
- Maintenance platforms
- Catwalks
- Walkways
- Equipment access areas
Vehicles & Heavy Equipment
- Vehicle steps
- Truck access areas
- Construction equipment
- Heavy machinery
- Industrial vehicles
Compatible Materials
3M Safety-Walk 510 can be evaluated for use on a variety of properly prepared substrates, particularly rigid and irregular industrial surfaces.
Potential substrates include:
- Aluminum
- Aluminum diamond plate
- Steel
- Stainless steel
- Painted metal
- Powder-coated metal
- Industrial equipment surfaces
- Metal ladder rungs
- Vehicle steps
- Construction equipment
- Platforms and walkways
Actual adhesion depends on the substrate, coating, surface condition, contamination and environmental exposure.
For rough, corroded, oily, painted or coated surfaces, appropriate surface preparation and application testing are recommended before full-scale installation.
Industries
- Manufacturing
- Industrial Equipment
- Construction
- Warehousing & Logistics
- Transportation
- Automotive
- Heavy Equipment
- Marine
- Mining
- Oil & Gas
- Infrastructure
- Commercial Facilities
Why Choose 3M Safety-Walk 510?
Conformable 500 Series Design
The key advantage of 510 is its conformable aluminum backing, which allows it to work on surfaces that are not perfectly flat.
Designed for Irregular Surfaces
It is a strong candidate for:
Diamond Plates → Ladder Rungs → Riveted Surfaces → Screw Heads → Curved Edges → Irregular Platforms
High-Friction Mineral Surface
The mineral-coated surface provides aggressive traction for industrial walking and working areas.
Black Color
The black appearance is suitable for conventional industrial safety applications and equipment surfaces.
Broad Traffic Range
The 500 Series is designed for light to heavy shoe traffic, offering broader industrial applicability than products specifically intended for barefoot use.
Custom Converting
For OEM and industrial customers, custom converting can be evaluated, including:
- Custom widths
- Custom lengths
- Pre-cut strips
- Custom shapes
- Die-cut pieces
- Equipment-specific anti-slip parts
Installation Guide
1. Prepare the Surface
Thoroughly remove:
- Dust
- Dirt
- Oil
- Grease
- Wax
- Moisture
- Loose coatings
- Rust or unstable surface material
The substrate should be clean, dry and structurally sound.
2. Measure the Area
Determine the required:
- Width
- Length
- Shape
- Number of pieces
For irregular surfaces, make sure the selected tape can adequately cover the required contact area.
3. Cut the Tape
Cut 510 to the required dimensions.
For OEM applications, pre-cut or die-cut shapes can be considered according to the application requirements.
4. Position the Tape
Position the material carefully before final bonding.
Make sure the tape follows the contour of the substrate without excessive stretching.
5. Remove the Release Liner
Gradually remove the liner while applying the tape to the surface.
Avoid trapping air beneath the material.
6. Apply Firm Pressure
Apply firm and uniform pressure over the entire tape surface.
For irregular substrates, pay particular attention to corners, edges, rivets and raised patterns.
7. Inspect the Edges
Make sure all edges are firmly bonded without lifting or curling.
Edge protection may be considered for applications exposed to excessive moisture or liquid.
Storage
Store 3M Safety-Walk 510:
- In the original packaging
- In a clean and dry environment
- Away from direct sunlight
- Away from excessive heat and humidity
- Protected from dust and contamination
- With the adhesive surface protected until use
For exact shelf-life requirements, refer to the latest 3M documentation and product labeling for the specific SKU.
FAQ
What is 3M Safety-Walk 510?

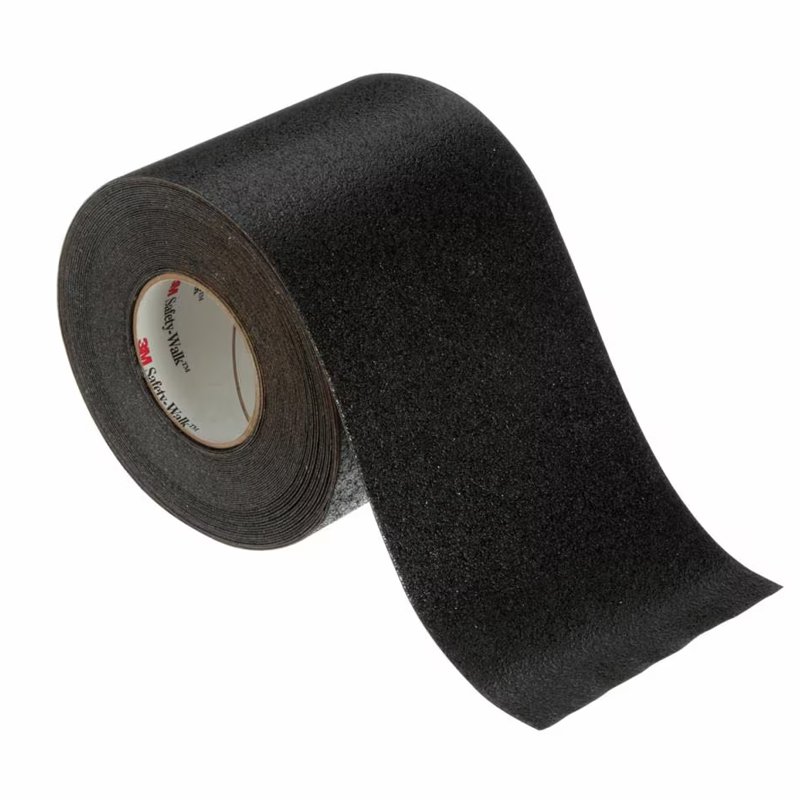

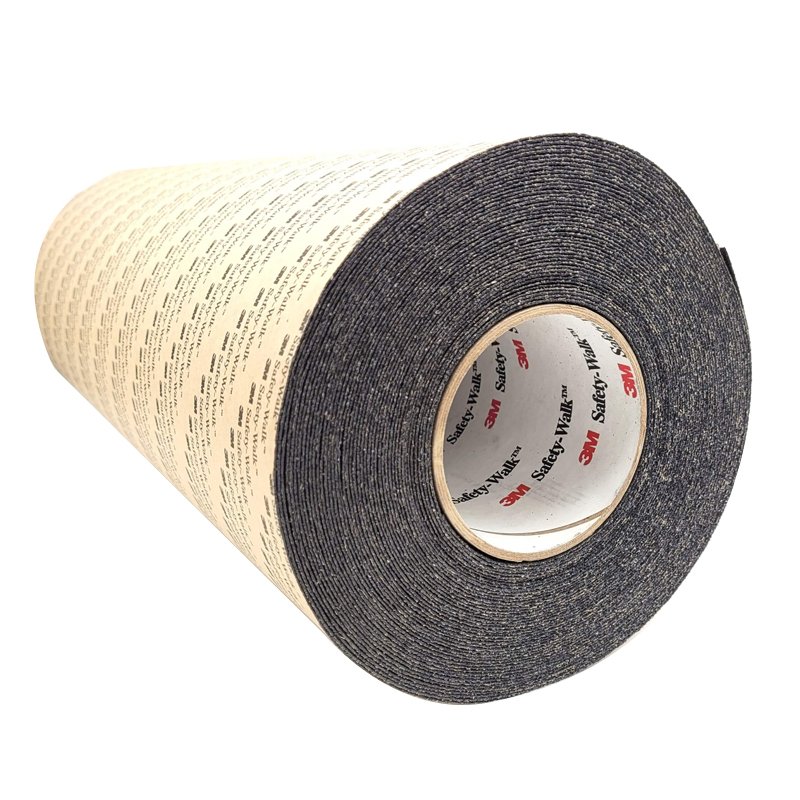

3M Safety-Walk 510 is a black, mineral-coated, conformable anti-slip tape from the 500 Series, designed for light to heavy shoe traffic and irregular surfaces.
What makes 3M 510 different from standard anti-slip tape?
The key difference is its aluminum backing, which allows the tape to conform to corners, curves, diamond plates, rivets, screw heads and other irregular surfaces.
Is 3M Safety-Walk 510 suitable for diamond plate?
Yes. The conformable construction makes 510 suitable for applications involving diamond tread plates and other patterned metal surfaces.
Can 3M 510 be used on ladder rungs?
Yes. Ladder rungs are an appropriate application to evaluate because the conformable backing can follow rounded or irregular surfaces.
Is 3M Safety-Walk 510 suitable for wet environments?
Yes. 3M positions the 500 Series for selected dry, wet and oily conditions. Proper substrate preparation and installation remain important.
Is 3M 510 suitable for heavy shoe traffic?
Yes. The 500 Series Conformable products are designed for light to heavy shoe traffic.
Is 3M 510 suitable for barefoot applications?
510 is primarily an industrial shoe-traffic product rather than a dedicated barefoot anti-slip tape.
For wet areas where barefoot comfort is the primary requirement, consider the 3M Safety-Walk 200 Series, such as 220 or 280.
What is the difference between 3M 510 and 530?
Both are 500 Series Conformable anti-slip products with mineral-coated surfaces and aluminum backing.
The primary visual difference is:
3M 510 – Black
3M 530 – Safety Yellow
Choose 510 when a black industrial appearance is preferred, or 530 when increased visual visibility is desired.
What is the difference between 3M 510 and 610?
Both are mineral-coated Safety-Walk products, but they are designed for different surface conditions.
3M Safety-Walk 510
- 500 Series Conformable
- Aluminum backing
- Designed for irregular and contoured surfaces
- Black
3M Safety-Walk 610
- 600 Series General Purpose
- Designed primarily for general-purpose applications
- Black
- Better suited to relatively flat surfaces
Therefore, 510 is generally the more appropriate series to evaluate when surface irregularity is a key requirement.
Can 3M Safety-Walk 510 be die-cut?
Yes. Custom shapes and sizes can be evaluated for Safety-Walk applications. For OEM projects, provide the drawing, dimensions, quantity and substrate information for converting assessment.
What sizes are available for 3M Safety-Walk 510?
Available widths, lengths and packaging configurations depend on the market and SKU. Standard rolls and custom-converted formats may be available depending on project requirements.
Downloads
Available upon request:
- 3M 510 Anti Slip Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Adhesive Tape Selection Guide
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
