Benefits
Conforms to Irregular Surfaces
The aluminum backing allows 3M 530 to conform to corners, curves and uneven surfaces, making it particularly useful where conventional flat anti-slip tape may not conform adequately.
High-Friction Mineral Surface
The mineral-coated surface provides high friction for walking and working areas requiring enhanced traction.
High Visibility Safety Yellow
The Safety Yellow color helps visually identify steps, edges, platforms and potential slip hazards.
Suitable for Industrial Environments
3M 530 is designed for areas with light to heavy shoe traffic and can be used in selected dry, wet and oily environments.
Strong Adhesive Bond
The aggressive, high-performance pressure-sensitive adhesive is designed to provide a secure bond to properly prepared surfaces.
Reduced Installation Rework
Current 3M configurations incorporate 3M™ Controltac™ Film Technology and 3M™ Comply™ Adhesive Technology in the liner. These features are designed to facilitate positioning and help release trapped air during application.
Technical Specifications
| Property | 3M™ Safety-Walk™ 530 |
|---|---|
| Product Series | 500 Series Conformable |
| Product Number | 530 |
| Color | Safety Yellow |
| Anti-Slip Material | Mineral |
| Backing / Carrier | Aluminum Foil |
| Adhesive Type | Pressure-Sensitive Adhesive (PSA) |
| Surface Type | Mineral-coated, high-friction |
| Applied Thickness | Approx. 0.91 mm |
| Applied Weight | Approx. 885 g/m² |
| Minimum Application Temperature | 4°C |
| Minimum Service Temperature | -40°C |
| Maximum Service Temperature | 79°C |
| Intended Traffic | Light to heavy shoe traffic |
| Typical Environment | Dry, wet and oily conditions |
| Slip Resistance | DIN 51130: R13 / V- |
| NFSI | High Traction Certified |
The 3M Safety-Walk Selection Guide lists 530 at approximately 0.91 mm applied thickness and 885 g/m² applied weight, with a minimum application temperature of 4°C, minimum service temperature of -40°C, and maximum service temperature of 79°C.
Applications
Industrial Stairs
3M 530 can be used on:
- Industrial stairs
- Stair edges
- Metal steps
- Access platforms
- Maintenance stairs
Ladders and Ladder Rungs
The conformable aluminum backing makes 530 suitable for ladder rungs and other rounded or irregular surfaces.

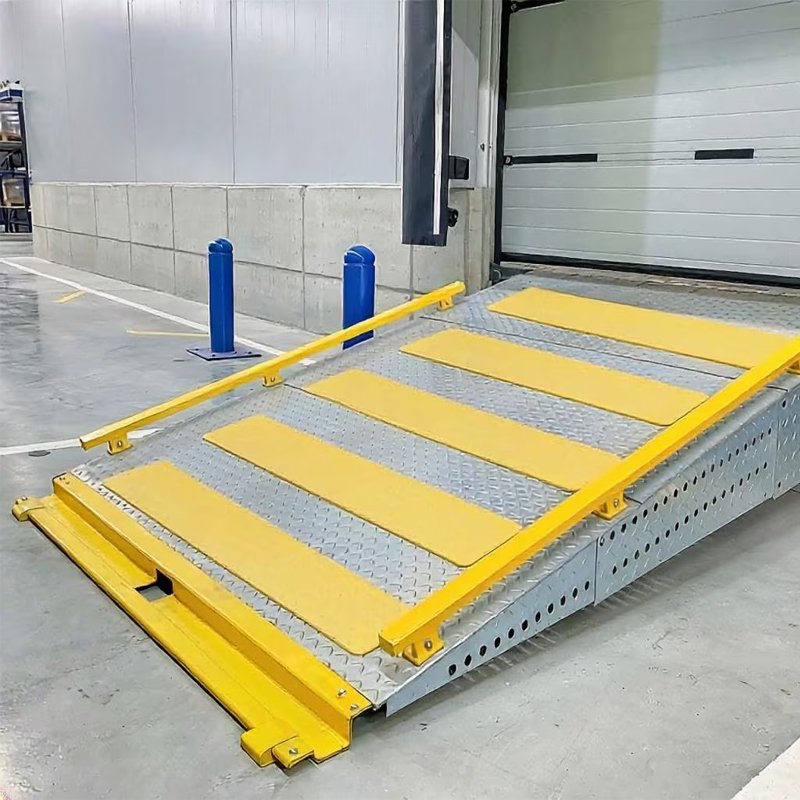

Loading Ramps
Suitable applications include:
- Loading ramps
- Dock areas
- Warehouse ramps
- Equipment access ramps
Diamond Tread Plates
530 is particularly suitable for diamond plate / checker plate surfaces, where the backing can conform around raised patterns.
Industrial Platforms
Potential applications include:
- Machine platforms
- Maintenance platforms
- Equipment access areas
- Walkways
- Catwalks
Heavy Equipment & Vehicles
3M also identifies applications involving heavy equipment and vehicles.
Compatible Materials
3M 530 is especially suitable for applications involving irregular or patterned surfaces.
Potential substrates include:
- Aluminum diamond plate
- Steel diamond plate
- Metal steps
- Painted metal
- Riveted metal surfaces
- Screw-fastened metal surfaces
- Ladder rungs
- Industrial equipment
- Platforms
- Vehicle steps
- Construction equipment
The actual adhesion depends on substrate condition, surface preparation, contamination, coating and environmental exposure. For painted, coated, corroded or contaminated substrates, application testing is recommended before production use.
Industries
- Manufacturing
- Warehousing & Logistics
- Construction
- Transportation
- Heavy Equipment
- Automotive
- Marine
- Food Service
- Commercial Facilities
- Industrial Equipment
- Oil & Gas
- Mining & Infrastructure
For applications involving continuous oil exposure, aggressive chemicals or unusual operating conditions, the exact substrate and environmental conditions should be evaluated before selection.
Why Choose 3M Safety-Walk 530?
Conformable Aluminum Backing
The biggest advantage of 530 is its ability to conform to irregular, curved and patterned surfaces.
High-Friction Mineral Surface
Its mineral-coated surface is designed for demanding slip-resistant applications.
Safety Yellow Visibility
The yellow color provides clear visual identification of safety areas and potential hazards.
Suitable for Irregular Industrial Surfaces
It is particularly useful for:
Diamond Plate → Riveted Surfaces → Ladder Rungs → Curved Edges → Irregular Platforms
Wide Application Range
Unlike products designed specifically for barefoot traffic, 530 is positioned for light to heavy shoe traffic, making it a more industrial-oriented Safety-Walk solution.
Custom Sizes Available
3M states that custom shapes and sizes are available, making the product suitable for application-specific converting requirements.
Installation Guide
1. Prepare the Surface
Remove:
- Dirt
- Dust
- Oil
- Grease
- Moisture
- Loose coatings
- Rust or unstable surface material
The substrate should be clean, dry and structurally sound.
For heavily contaminated or difficult surfaces, appropriate cleaning and surface preparation should be completed before application.
2. Plan the Layout
Measure the application area and determine:
- Required width
- Required length
- Number of pieces
- Corners and curves
- Irregular surface areas
For diamond plate or ladder rungs, check that the tape can fully conform to the surface profile.
3. Cut to Size
Cut the material according to the required application dimensions.
For OEM projects, pre-cut or die-cut shapes can be considered where appropriate.
4. Position the Tape
Place the tape on the substrate and confirm the position before final bonding.
Current 3M configurations may incorporate Controltac Film Technology, allowing repositioning before final adhesion.
5. Remove the Liner
Gradually remove the release liner while applying the material.
Avoid stretching the tape during installation.
6. Apply Firm Pressure
Apply firm and uniform pressure across the entire surface.
On irregular surfaces, ensure that the aluminum backing follows the contours without creating lifting points.
7. Inspect the Edges
Check all edges, corners and transitions to ensure complete contact.
Particular attention should be given to:
- Corners
- Raised patterns
- Screw heads
- Rivets
- Ladder edges
Storage
Store 3M Safety-Walk 530:
- In its original packaging
- In a clean, dry environment
- Away from direct sunlight
- Away from excessive heat and humidity
- Protected from contamination
- With the adhesive protected until installation
For exact shelf-life and storage requirements, follow the latest 3M technical documentation applicable to the specific SKU and production batch.
FAQ
What is 3M Safety-Walk 530?

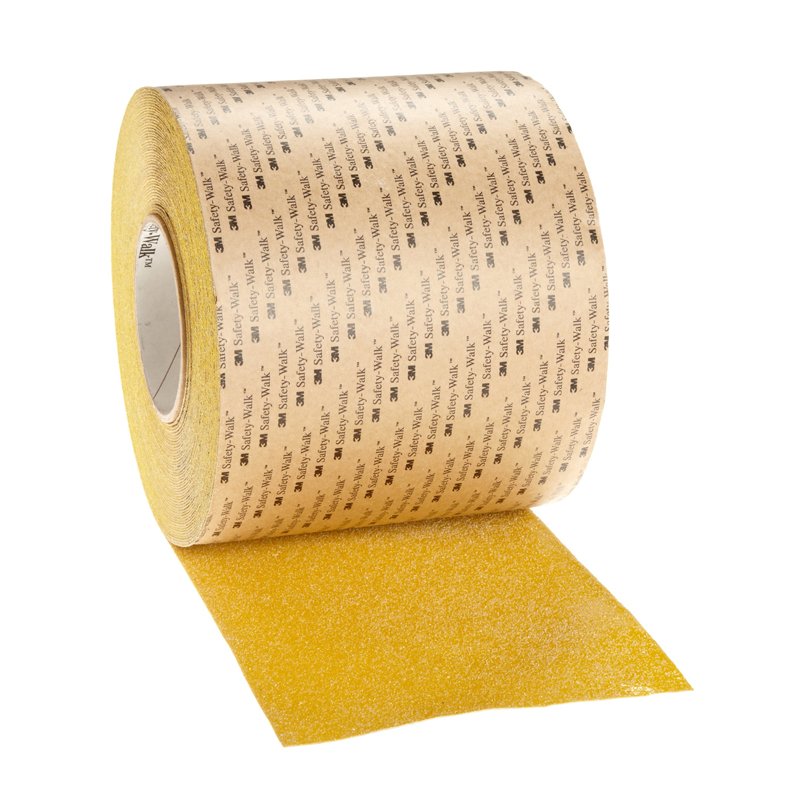

3M Safety-Walk 530 is a Safety Yellow, mineral-coated, conformable anti-slip tape from the 500 Series, designed for irregular and contoured surfaces.
What makes 3M 530 different from standard anti-slip tape?
Its aluminum foil backing allows the material to conform to corners, curves and irregular surfaces such as diamond tread plates, riveted surfaces and ladder rungs.
Is 3M Safety-Walk 530 suitable for diamond plate?
Yes. Diamond tread plates are one of the key applications specifically identified by 3M for the 530 product.
Can 3M 530 be used on ladder rungs?
Yes. 3M specifically identifies ladder rungs as an application for the 530 conformable product.
Can 3M 530 be used in wet environments?
Yes. 3M’s current product information states that 530 is suitable for applications in dry, wet or oily environments.
Is 3M 530 suitable for heavy shoe traffic?
Yes. The product is positioned for light to heavy shoe-traffic areas.
Is 3M 530 suitable for barefoot applications?
It is primarily positioned for shoe-traffic applications rather than as a dedicated barefoot product. For wet barefoot areas, the 3M Safety-Walk 200 Series, such as 220 or 280, should generally be evaluated instead.
What is the difference between 3M 530 and 3M 630?
Both are Safety Yellow Safety-Walk products, but their constructions are different.
3M Safety-Walk 530
- 500 Series Conformable
- Aluminum foil backing
- Designed for irregular and contoured surfaces
- Suitable for diamond plate and ladder rungs
3M Safety-Walk 630
- 600 Series General Purpose
- Designed primarily for general-purpose flat or relatively smooth applications
- Mineral-coated surface
- Suitable for light to heavy shoe traffic
What is the difference between 3M 530 and 510?
Both belong to the 500 Series Conformable category and share the same basic product concept.
The primary visual difference is:
530 – Safety Yellow
510 – Black
Both are designed for irregular and contoured surfaces.
Can 3M Safety-Walk 530 be die-cut?
Yes. 3M states that custom shapes and sizes are available. For OEM applications, custom converting can be evaluated based on the drawing, dimensions, quantity and application requirements.
What sizes are available for 3M 530?
3M currently lists configurations such as 2 in × 60 ft, 6 in × 60 ft and 49.25 in × 300 yd, among other configurations. Exact availability varies by market and SKU.
Downloads
Available upon request:
- 3M 530 Anti Slip Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Adhesive Tape Selection Guide
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
