Benefits
- Reliable LSE bonding: High-performance LSE adhesive is designed to create efficient bonding to suitable low-surface-energy substrates.
- Primer reduction: Can help simplify bonding processes by eliminating primer in suitable applications.
- Stress absorption: The viscoelastic acrylic foam core helps absorb and dissipate static and dynamic loads.
- Strong initial tack: Very good tack supports efficient assembly and positioning.
- Long-term mounting performance: Very good static shear performance at both 23°C and 40°C.
- Flexible design options: Available in 400 μm, 500 μm, 640 μm, 800 μm, 1100 μm and 1500 μm formats.
Technical Specifications
| Property | Tesa 6306 |
|---|---|

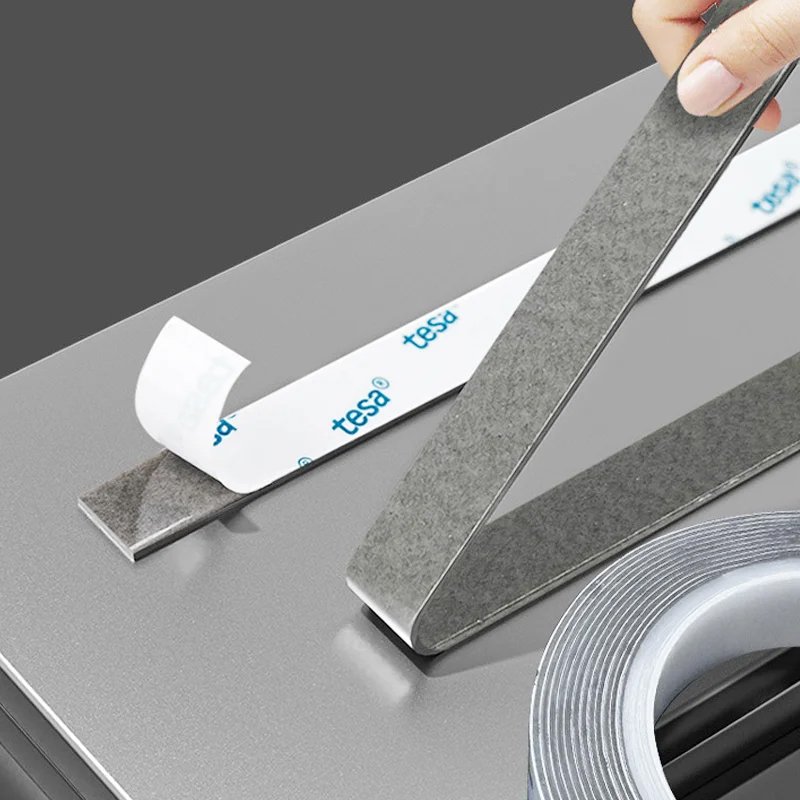

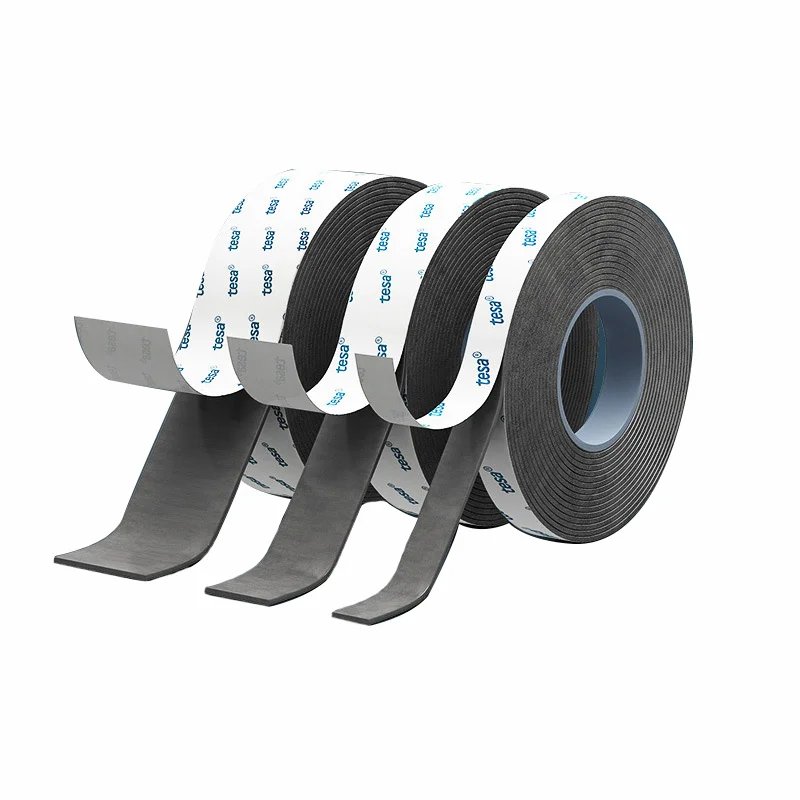

| Product Type | Double-Sided Acrylic Foam Tape |
| Adhesive Type | LSE |
| Carrier | Acrylic Foam |
| Construction | Triple-Layer Symmetrical |
| Color | Gray |
| Standard Thickness | 640 μm / 0.64 mm |
| Available Thicknesses | 400 / 500 / 640 / 800 / 1100 / 1500 μm |
| Liner | PE-coated fabric |
| Initial Adhesion to Steel | 26 N/cm |
| Initial Adhesion to ABS | 24 N/cm |
| Tack | Very Good |
| Static Shear at 23°C | Very Good |
| Static Shear at 40°C | Very Good |
| Short-Term Temperature Resistance | 120°C |
| Long-Term Temperature Resistance | 80°C |
| Moisture Resistance | Very Good |
The values above are representative/typical values from tesa technical documentation and should not be treated as product specifications. The current tesa technical data sheet should be used for final purchasing and engineering qualification.
Applications
- Decorative glass panel mounting
- Plastic panel mounting
- Nameplate mounting
- Component and parts mounting
- TV back panel mounting
- Low-surface-energy plastic bonding
- Decorative panel assembly
- Appliance component mounting
- Electronics component mounting
- Interior component mounting
- Permanent industrial mounting
- Metal-to-plastic bonding
- Plastic-to-plastic assembly
- General permanent mounting applications
The first four applications above are specifically identified by tesa as example applications.
Compatible Materials
Tesa 6306 is particularly relevant to applications involving suitable low-surface-energy (LSE) substrates.
Potential substrate categories include:
- LSE plastics
- PP
- PE
- TPO
- Selected automotive plastics
- ABS
- PC / polycarbonate
- Acrylic / PMMA
- Painted surfaces
- Glass
- Aluminum
- Steel
- Stainless steel
- Decorative plastic panels
- Molded plastic components
Note: Actual substrate compatibility should be confirmed through application testing. PP, PE and TPO are typical LSE material categories; they should not be presented as universally approved substrates for every 6306 application without qualification.
Industries
- Automotive
- Consumer Electronics
- TV & Display
- Appliances
- Electronics
- Furniture
- Interior Decoration
- Building & Construction
- Sign & Display
- Industrial Equipment
- Plastic Components
- General Industrial Assembly
Why Choose
- LSE bonding technology: High-performance LSE adhesive is designed for efficient bonding to suitable low-surface-energy substrates.
- Primerless process potential: tesa 6306 can help eliminate primer in suitable applications, simplifying assembly processes.
- Viscoelastic acrylic foam: Helps absorb and dissipate dynamic and static loads.
- High-performance mounting: Very good tack and static shear performance support demanding permanent mounting.
- Multiple thickness options: Available from 400 μm to 1500 μm for different design and gap-filling requirements.
- Professional converting: Yousan can provide slitting, laminating, kiss cutting, die cutting, custom shapes and other converting services according to project requirements.
Installation Guide
- Prepare the surfaces
Ensure the bonding surfaces are clean, dry and free from dust, oil, grease and release agents. - Check substrate compatibility
For LSE plastics or painted surfaces, conduct application-specific adhesion testing before mass production. - Cut the tape
Convert tesa 6306 into the required roll width, strip or die-cut shape. - Apply the tape
Remove the liner and apply the adhesive side evenly to the first substrate. - Apply pressure
Press firmly across the entire bonding area to promote intimate contact between the adhesive and substrate. - Join the second substrate
Remove the remaining liner and carefully position the mating component. - Apply final pressure
Use sufficient, uniform pressure to maximize contact and bonding performance. - Allow sufficient bonding time
Where possible, avoid applying excessive mechanical load immediately after assembly and allow the adhesive to build adhesion according to the application conditions.
Storage
- Store in the original packaging.
- Keep in a clean, dry and well-ventilated environment.
- Protect from direct sunlight and excessive heat.
- Avoid contamination of the adhesive surface.
- Keep rolls flat or stored according to the manufacturer’s recommended orientation.
- Allow the tape to reach the application environment before converting or bonding where temperature differences are significant.
- Follow the latest tesa storage recommendations for the specific product version.
FAQ
1. What type of tape is tesa 6306?
tesa 6306 is a gray double-sided acrylic foam tape with a high-performance LSE adhesive.
2. What is the standard thickness of tesa 6306?
The standard product thickness is 640 μm (0.64 mm). Other available formats include 400, 500, 800, 1100 and 1500 μm.
3. Is tesa 6306 suitable for low-surface-energy plastics?
Yes. Its LSE adhesive is specifically designed to provide efficient bonding to suitable low-surface-energy substrates and can help eliminate primer in appropriate applications.
4. Can tesa 6306 be used without primer?
In suitable applications, yes. tesa states that the high-performance LSE adhesive can create an efficient and secure bond without primer. Actual performance should be validated on the specific substrate.
5. What is the temperature resistance?
The technical data lists 120°C short-term temperature resistance and 80°C long-term temperature resistance.
6. Is tesa 6306 suitable for permanent mounting?
Yes. tesa specifies the product for a wide range of permanent mounting applications.
7. Can tesa 6306 be die-cut?
Yes. As an acrylic foam tape, it can be considered for converting into custom strips, shapes and die-cut parts, subject to the specific design and processing requirements.
8. Can Yousan provide custom converting?
Yes. Yousan can support custom slitting, laminating, kiss cutting and precision die-cutting according to drawing, dimensions and application requirements.
Downloads
Available upon request:
- Tesa 6306 Foam Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
