Benefits
- Strong bonding: Provides reliable adhesion for automotive and industrial mounting applications.
- High tack: Helps achieve effective initial contact between compatible substrates.
- Conformable foam: Compensates for minor surface irregularities and improves contact.
- Clean appearance: Eliminates visible mechanical fasteners in suitable applications.
- Automotive versatility: Suitable for a variety of automotive accessories, trims, lighting components, and exterior parts.
- Efficient installation: Simplifies assembly compared with conventional mechanical fastening.
- Custom converting: Can be converted into strips, pads, rolls, and precision die-cut components.

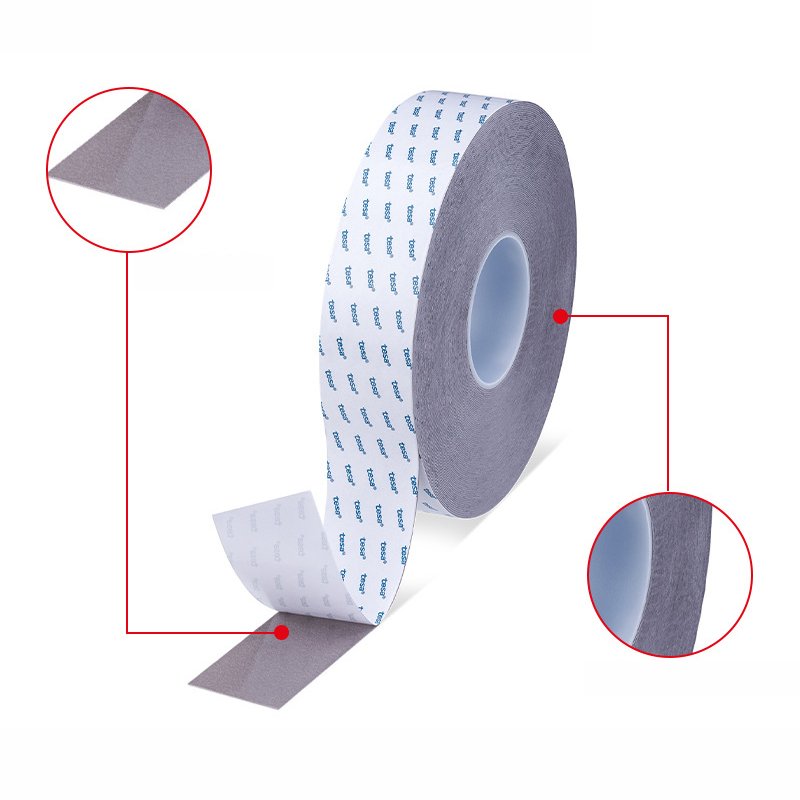

Technical Specifications
| Property | Tesa 6702 |
|---|---|
| Product Type | Double-Sided Acrylic Foam Tape |
| Adhesive Type | Acrylic |
| Tape Structure | Acrylic Foam |
| Adhesive Sides | Double-Sided |
| Color | Gray |
| Thickness | 0.8mm |
| Liner | White PE release paper |
| Temperature Resistance | 200 °C |
| Application | High-Bond Mounting & Assembly |
Technical note: Exact technical values should be verified against the latest official tesa 6702 Technical Data Sheet before publication.

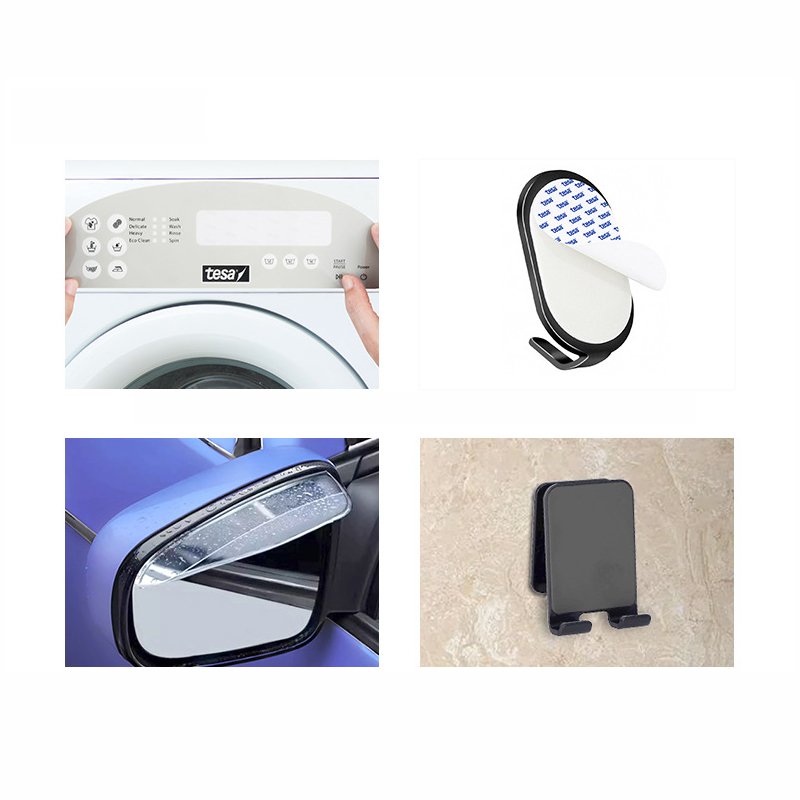

Applications
- Automotive ETC device mounting
- Automotive spoiler mounting
- Car rain guard / rain visor mounting
- Automotive LED light mounting
- Automotive trim attachment
- Car emblem and badge mounting
- Decorative component mounting
- Automotive exterior accessory mounting
- Interior automotive component assembly
- License plate and accessory mounting, where appropriate
- Appliance component mounting
- Sign and display mounting
- General industrial component bonding
Compatible Materials
Tesa 6702 may be suitable for bonding compatible substrates including:
- Painted metal
- Aluminum
- Steel
- Stainless steel
- Glass
- ABS
- PVC
- Acrylic / PMMA
- Polycarbonate
- Selected automotive plastics
- Automotive painted surfaces
- Molded plastic components
- Decorative trims
- Selected composite materials
Actual adhesion depends on the substrate, surface energy, coating, roughness, cleanliness, temperature, and environmental conditions. Testing on the actual substrates is recommended before mass production.
Industries
- Automotive
- Automotive Accessories
- Electronics
- LED Lighting
- Appliances
- Furniture
- Building & Construction
- Sign & Display
- Consumer Products
- General Industrial Assembly
Why Choose tesa 6702
Tesa 6702 provides a strong double-sided acrylic foam bonding solution for applications where reliable adhesion, clean appearance, and simplified assembly are important.
For automotive applications, the tape can be considered for mounting ETC devices, spoilers, rain guards, LED lights, trims, emblems, and other compatible accessories, depending on substrate and load requirements.
Compared with screws, clips, and other mechanical fasteners, acrylic foam tape can provide a concealed bonding line and help create a cleaner finished appearance.
Yousan can support suitable OEM projects with slitting, rewinding, laminating, and precision die-cutting, including custom adhesive pads and application-specific tape components.
Installation Guide
- Prepare the surfaces: Remove dust, oil, grease, wax, moisture, and other contaminants.
- Clean the substrates: Use a cleaning method suitable for the specific automotive or industrial substrate.
- Check compatibility: Test the tape on the actual materials, coatings, and surface finishes.
- Cut the tape: Select the required width and length based on the bonding area and load.
- Apply the tape: Attach the tape evenly to the first substrate without stretching it.
- Apply pressure: Press firmly across the complete bonding area to improve adhesive contact.
- Remove the liner: Carefully remove the release liner without touching or contaminating the adhesive.
- Position the component: Align the second substrate accurately before contact.
- Apply pressure: Press the component firmly over the entire bonding area.
- Allow sufficient bonding time: Avoid excessive load immediately after installation and allow the adhesive to develop its required bonding strength.
Storage
Store tesa 6702 in its original packaging in a clean, dry environment. Keep the tape away from direct sunlight, excessive heat, moisture, dust, and contamination.
For long-term storage, follow the temperature, humidity, shelf-life, and packaging conditions specified in the latest official tesa technical documentation.
FAQ
Q1: What is tesa 6702 used for?
tesa 6702 is a double-sided acrylic foam tape designed for high-bond mounting and assembly applications, particularly where a clean and concealed bonding solution is required.
Q2: Can tesa 6702 be used for automotive ETC mounting?
It can be considered for suitable automotive ETC mounting applications, provided that the actual substrate, device weight, temperature, vibration, and environmental conditions are evaluated.
Q3: Is tesa 6702 suitable for car spoilers?
It may be suitable for compatible spoiler and automotive exterior component mounting applications. Because exterior automotive components experience vibration, temperature changes, wind loads, and moisture, application-specific testing is essential.
Q4: Can it be used for automotive rain guards and LED lights?
Yes, it can be considered for suitable rain guard, LED lighting, trim, and accessory mounting applications. The actual bonding design should be tested under expected environmental and mechanical conditions.
Q5: Is tesa 6702 waterproof?
The acrylic foam construction can offer resistance to environmental exposure, but “waterproof” suitability depends on the complete assembly and application conditions. Continuous water exposure should be validated through testing.
Q6: Is tesa 6702 suitable for outdoor automotive applications?
It can be considered for suitable automotive exterior applications, but outdoor durability depends on substrate, temperature, UV exposure, moisture, load, and installation conditions. Application testing is recommended.
Q7: Can tesa 6702 replace automotive screws or clips?
For suitable applications, acrylic foam tape can provide a concealed alternative to some mechanical fastening methods. The required load capacity and safety factor must be evaluated for each component.
Q8: Can tesa 6702 be die-cut?
Yes. Suitable acrylic foam tape can be converted into custom die-cut pads, strips, rings, mounting pieces, and other application-specific shapes.
Q9: Can Yousan provide customized tesa 6702 converting?
Yousan can support suitable projects with slitting, rewinding, laminating, and precision die-cutting according to customer requirements.
Downloads
Available upon request:
- Tesa 6702 Acrylic Foam Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
