Benefits
- Provides reliable bonding without screws, rivets, or other mechanical fasteners
- Creates a neat and virtually invisible bond line
- Helps simplify assembly processes
- Supports lightweight and space-efficient product designs
- Polyester carrier helps maintain tape integrity during handling and converting
- Suitable for custom die-cut adhesive components
- Can improve production efficiency in repetitive assembly operations
- Provides a versatile bonding option for different material combinations
Technical Specifications
| Property | Description |
|---|---|

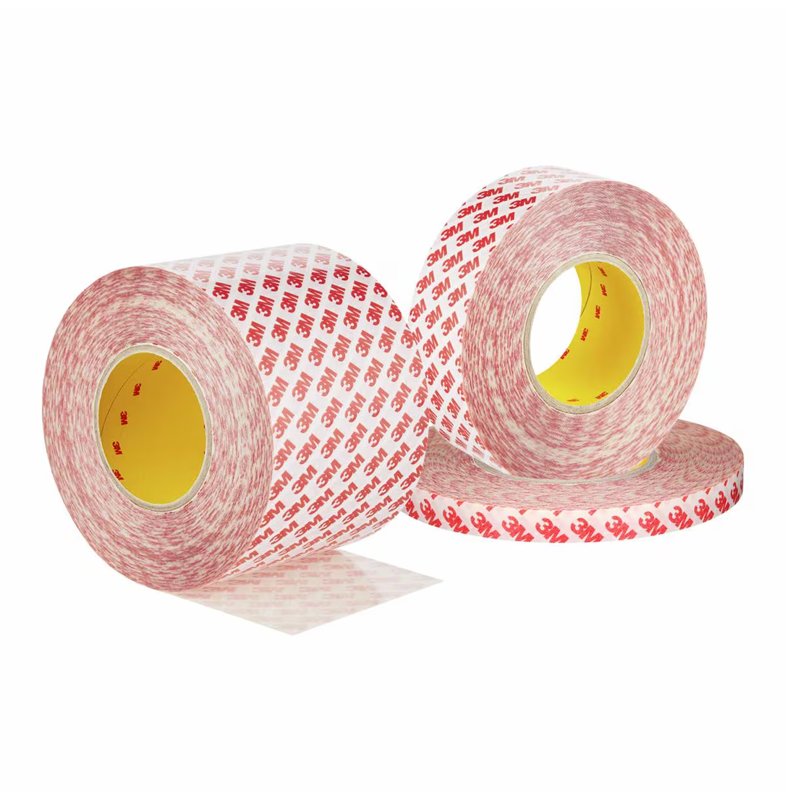

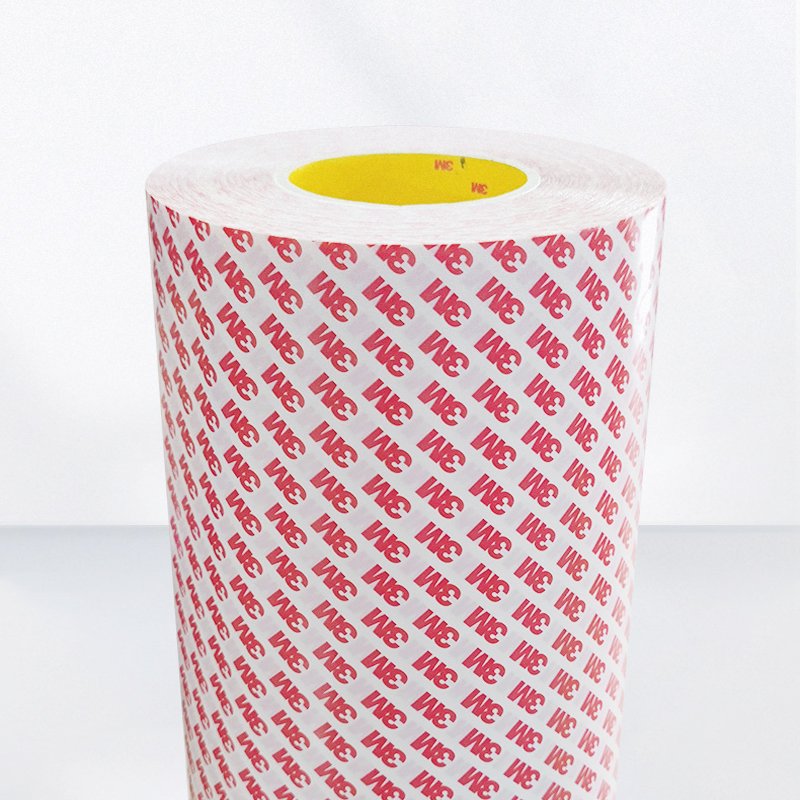

| Product | 3M™ Double Coated Tape GPT-020F |
| Tape Type | Double-coated pressure-sensitive adhesive tape |
| Carrier | Polyester film |
| Adhesive | Pressure-sensitive adhesive |
| Construction | Adhesive / polyester film / adhesive |
| Liner | Release liner |
| Appearance | Translucent / transparent |
| Application | General-purpose industrial bonding and assembly |
| Converting | Slitting, laminating, and die-cutting |
| Application Method | Pressure-sensitive, no curing required |
Exact tape thickness, adhesive type, adhesion values, temperature performance, liner specifications, and other technical properties should be confirmed using the latest official 3M™ GPT-020F technical documentation for the applicable product configuration.
Applications
3M™ GPT-020F can be used for a wide range of industrial bonding, mounting, and assembly applications, including:
- Component mounting
- Nameplate and badge attachment
- Sign and display assembly
- Decorative trim mounting
- Lightweight material assembly
- Plastic component bonding
- Metal component mounting
- Graphic and promotional material mounting
- Electronics assembly
- General industrial assembly
- Laminating and splicing
- Custom die-cut adhesive parts
Compatible Materials
GPT-020F may be suitable for bonding a variety of substrates, depending on surface characteristics and application conditions:
- Plastics
- ABS
- Acrylic
- Polycarbonate
- PVC
- Metals
- Painted metals
- Glass
- Paper
- Cardboard
- Wood
- Coated surfaces
For difficult-to-bond or low-surface-energy materials, additional surface preparation or adhesion testing may be required.
Industries
- Electronics
- Electrical equipment
- Automotive
- Appliances
- Industrial equipment
- Signage and graphics
- Consumer products
- Furniture
- Packaging
- General manufacturing
Why Choose 3M™ Double Coated Tape GPT-020F?
3M™ GPT-020F provides a practical alternative to conventional mechanical fastening for a wide range of industrial assembly applications. Its polyester film carrier offers dimensional stability, while the double-coated pressure-sensitive adhesive construction enables efficient bonding of different substrates.
For manufacturers requiring customized adhesive components, GPT-020F can be supplied in converted formats such as narrow rolls, laminated constructions, and precision die-cut parts. This makes it suitable for both standard assembly and high-volume automated production.
Installation Guide
- Clean the bonding surfaces
Remove dust, oil, grease, moisture, and other contaminants from the substrates. - Prepare the surfaces
Ensure the surfaces are dry and sufficiently smooth for the intended application. - Cut or convert the tape
Cut the tape to the required dimensions or use a custom die-cut part. - Apply the first side
Remove the release liner and position the adhesive tape carefully on the first substrate. - Apply pressure
Press the tape firmly against the surface to maximize adhesive contact. - Remove the remaining liner
Carefully remove the second release liner without contaminating the exposed adhesive. - Position the second substrate
Align the mating material accurately before making full contact. - Apply uniform pressure
Press the entire bonded area to establish good contact. - Allow dwell time
Adhesion typically develops progressively after application. Allow sufficient dwell time before subjecting the assembly to full load.
Storage
Store 3M™ GPT-020F in its original packaging in a clean and dry environment. Protect the tape from direct sunlight, excessive heat, moisture, dust, and contamination.
Keep rolls flat and properly packaged during storage. Follow the latest 3M™ product documentation for the recommended storage temperature, humidity, and shelf-life requirements applicable to the specific product configuration.
FAQ
What is 3M™ GPT-020F?
3M™ GPT-020F is a double-coated pressure-sensitive adhesive tape with a polyester film carrier, designed for general industrial bonding, mounting, and assembly applications.
What is the carrier material of GPT-020F?
GPT-020F uses a polyester film carrier, which provides dimensional stability and supports handling and converting operations.
Can GPT-020F bond plastic and metal?
Yes, GPT-020F can be considered for bonding various plastic and metal substrates. Actual adhesion depends on the specific material, surface condition, and application environment.
Can GPT-020F be die-cut?
Yes. The tape can be converted into custom die-cut shapes for applications requiring precise dimensions and controlled adhesive placement.
Is GPT-020F suitable for electronics?
It can be used for selected electronics assembly and component mounting applications where its adhesive performance meets the application’s requirements. Testing with the actual components is recommended.
Can GPT-020F replace screws or rivets?
For suitable applications, double-sided adhesive tape can replace some mechanical fasteners. Load requirements, substrate compatibility, temperature, humidity, and long-term durability should be evaluated before making a substitution.
How should surfaces be prepared before application?
Surfaces should be clean, dry, and free from oil, dust, grease, and other contaminants. Some difficult substrates may require additional surface preparation.
Can you supply custom GPT-020F die-cut parts?
Yes. GPT-020F can be converted into custom slit rolls or precision die-cut adhesive components according to application and production requirements.
Downloads
Available upon request:
- 3M™ GPT-020F Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Application Guide
- Product Brochure
- Custom Die-Cut Adhesive Solution Guide
Please contact our sales team if you require the latest technical documentation.
