Benefits
- Provides a strong and reliable adhesive bond
- Helps reduce the need for screws, rivets, and other mechanical fasteners
- Creates a clean and low-profile assembly
- Supports efficient production and component mounting
- Suitable for bonding different materials
- Can help simplify product design and assembly
- Supports customized die-cut adhesive solutions
- Suitable for demanding industrial environments when properly specified
Technical Specifications
| Property | Description |
|---|---|

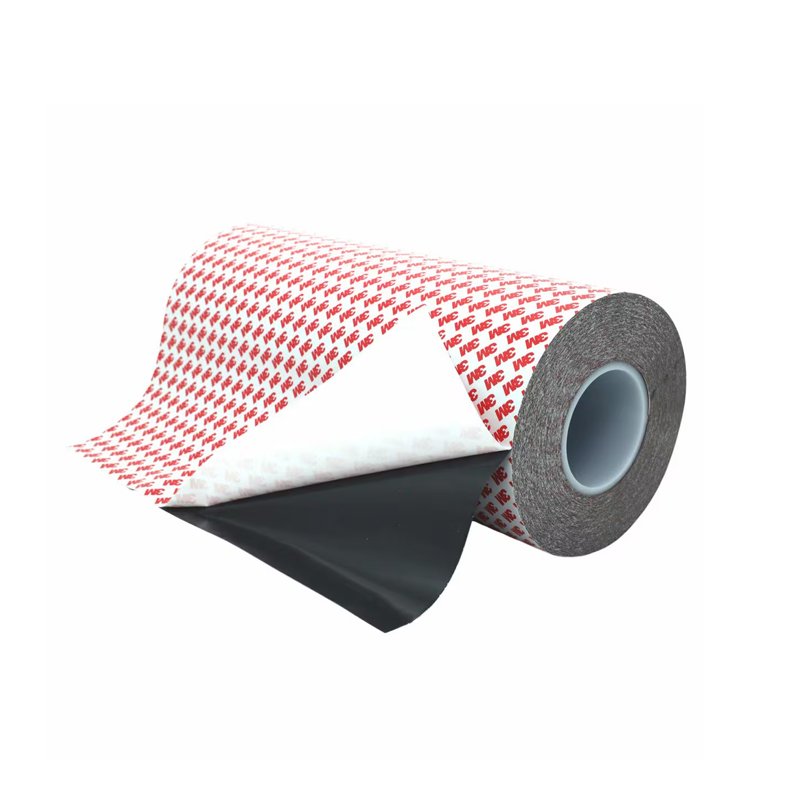

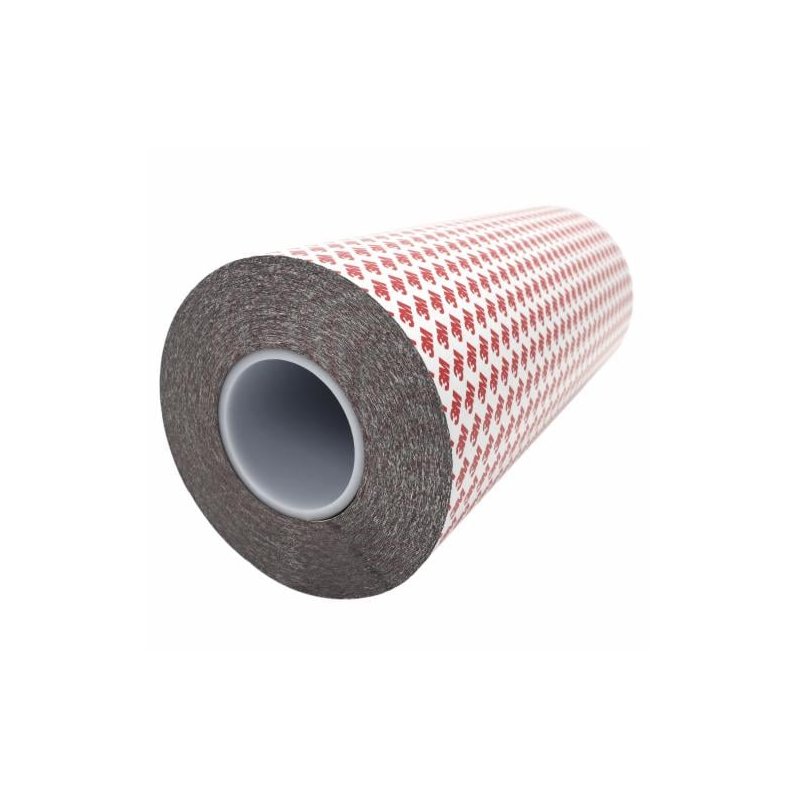

| Product | 3M™ Double Coated Tape 94130HD |
| Tape Type | Heavy-duty double-coated adhesive tape |
| Adhesive | Pressure-sensitive adhesive |
| Construction | Double-coated tape |
| Application | Industrial bonding, mounting, laminating, and assembly |
| Converting | Slitting, laminating, and die-cutting |
| Application Method | Pressure-sensitive, no curing required |
Exact carrier material, adhesive chemistry, total thickness, liner construction, adhesion values, temperature resistance, and other technical specifications should be verified against the latest official 3M™ 94130HD technical documentation for the applicable product configuration.
Applications
3M™ Double Coated Tape 94130HD can be considered for:
- Industrial component mounting
- Metal and plastic assembly
- Appliance assembly
- Automotive component attachment
- Electronics assembly
- Sign and display mounting
- Nameplate attachment
- Decorative trim mounting
- Laminating applications
- General industrial assembly
- Lightweight structural attachment
- Custom die-cut adhesive components
Compatible Materials
Depending on the application and surface characteristics, 3M™ 94130HD may be suitable for bonding:
- Metals
- Painted metals
- Plastics
- ABS
- Acrylic
- Polycarbonate
- PVC
- Glass
- Wood
- Coated surfaces
- Composite materials
- Other industrial substrates
Surface energy, cleanliness, roughness, and environmental exposure can significantly affect adhesive performance. Testing on the actual substrates is recommended before production use.
Industries
- Automotive
- Electronics
- Electrical
- Appliances
- Industrial equipment
- Consumer products
- Signage and graphics
- Furniture
- General manufacturing
- Transportation
- Industrial assembly
Why Choose 3M™ Double Coated Tape 94130HD?
3M™ 94130HD is designed for customers looking for a robust double-sided adhesive solution for demanding industrial assembly applications. Compared with conventional mechanical fastening, double-coated adhesive tape can provide a cleaner appearance while potentially reducing assembly steps and eliminating visible hardware.
For manufacturers, the tape can also be converted into custom widths or precision die-cut shapes, allowing adhesive placement to be optimized for individual components and production processes.
Installation Guide
- Clean the surfaces
Remove dust, oil, grease, moisture, and other contaminants. - Prepare the substrates
Make sure the bonding surfaces are dry and properly prepared. - Cut the tape
Cut the tape to the required size or use a custom die-cut component. - Apply the first side
Remove the release liner and apply the adhesive tape to the first substrate. - Apply pressure
Press firmly and evenly over the tape to establish good adhesive contact. - Remove the remaining liner
Carefully remove the second release liner without contaminating the adhesive. - Align the second substrate
Position the mating material accurately before making full contact. - Apply firm pressure
Press the assembly evenly across the complete bonding area. - Allow sufficient dwell time
Allow the adhesive bond to develop before exposing the assembly to the maximum intended load.
Storage
Store 3M™ Double Coated Tape 94130HD in its original packaging in a clean, dry environment. Protect the product from direct sunlight, excessive heat, moisture, dust, and contamination.
Keep the tape properly packaged during storage and follow the latest official 3M™ documentation for recommended storage conditions and shelf-life requirements.
FAQ
What is 3M™ Double Coated Tape 94130HD?
3M™ 94130HD is a heavy-duty double-coated pressure-sensitive adhesive tape intended for industrial bonding, mounting, laminating, and assembly applications.
What does “HD” mean in 94130HD?
“HD” generally indicates a heavy-duty version or configuration. The exact product construction and performance should be confirmed using the current 3M™ product documentation.
Can 94130HD bond metal and plastic?
It may be suitable for a variety of metal and plastic substrates. Actual performance depends on the substrate, surface preparation, environmental conditions, and required bond strength.
Can 3M™ 94130HD replace mechanical fasteners?
For suitable applications, double-sided adhesive tape can replace some screws, rivets, clips, or other fastening methods. The actual load and environmental requirements should be evaluated before substitution.
Can 94130HD be die-cut?
Yes, double-coated industrial tapes can be converted into custom die-cut components depending on the specific construction and required shape.
Is 94130HD suitable for electronics?
It may be suitable for selected electronic component mounting and assembly applications. Actual component, temperature, and environmental testing is recommended.
How should surfaces be prepared before application?
Surfaces should be clean, dry, and free of dust, oil, grease, and other contaminants. Some low-surface-energy or difficult substrates may require additional surface preparation.
Can you provide custom widths?
Yes. Depending on the product configuration, the tape can be supplied in slit widths or converted into custom die-cut adhesive parts.
Downloads
Available upon request:
- 3M™ 94130HD Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Application Guide
- Product Brochure
- Custom Die-Cut Adhesive Solution Guide
Please contact our sales team if you require the latest technical documentation.
