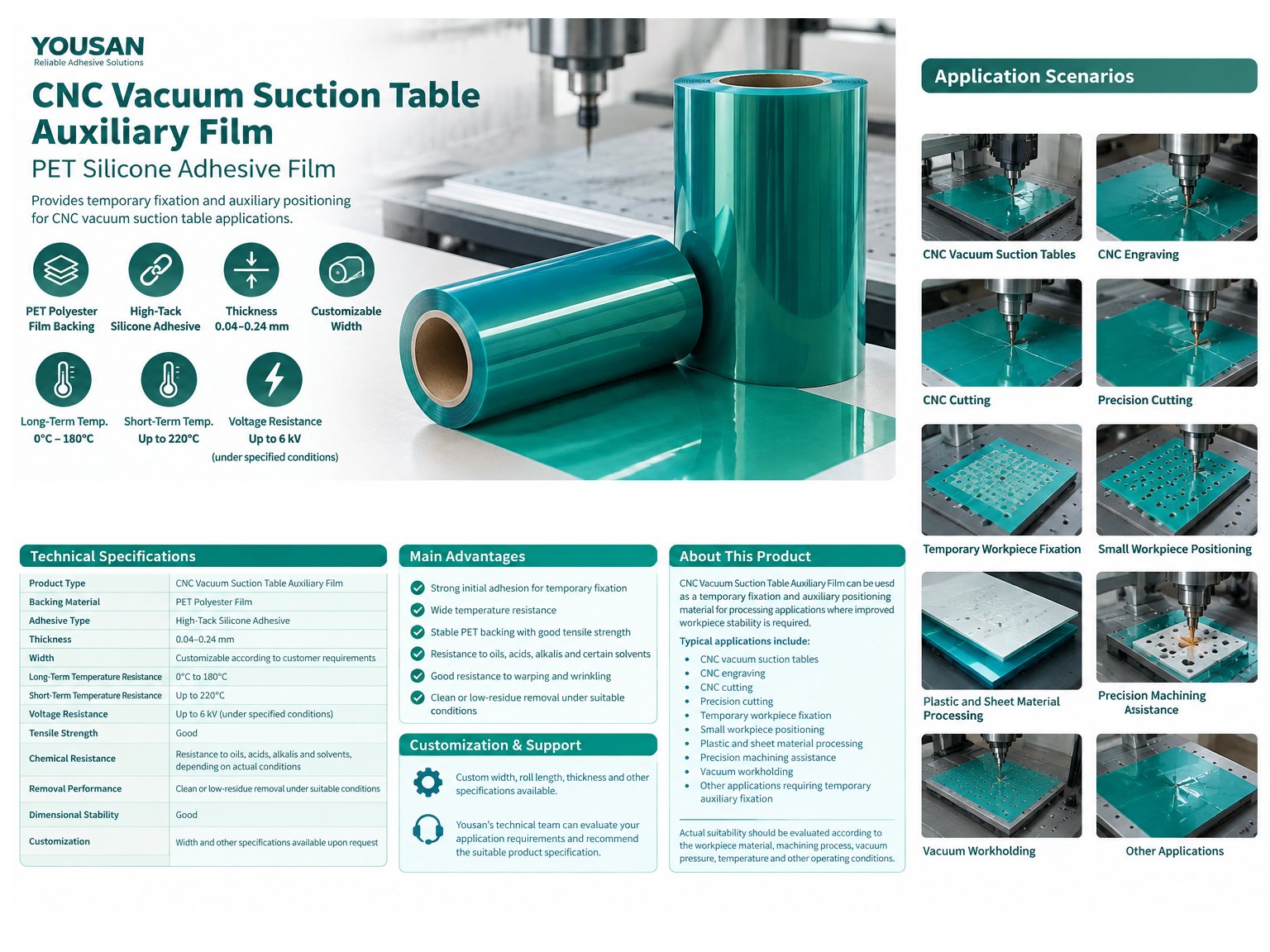

CNC Vacuum Suction Table Auxiliary Film is an auxiliary adhesive film featuring a PET polyester film backing and a high-tack silicone adhesive, primarily designed for temporary fixation and auxiliary positioning on CNC vacuum suction tables.
The film provides additional temporary adhesion during processing and is suitable for applications where improved workpiece positioning stability is required. The PET backing offers good tensile strength and dimensional stability, while the silicone adhesive provides high tack, temperature resistance, and a degree of resistance to oils, acids, alkalis, and solvents.
The product is available in thicknesses from 0.04 mm to 0.24 mm and supports customizable widths, allowing specifications to be matched to different equipment dimensions and application requirements.
Key Features
- PET polyester film backing
- High-tack silicone adhesive
- Thickness range: 0.04–0.24 mm
- Customizable width
- Long-term temperature resistance: 0°C to 180°C
- Short-term temperature resistance: up to 220°C
- Voltage resistance: up to 6 kV under specified test conditions
- Good tensile strength
- Reinforced construction for improved dimensional stability
- Resistance to oils, acids, alkalis, and certain solvents, depending on actual conditions
- Good resistance to warping and wrinkling
- Suitable for temporary auxiliary fixation
- Clean or low-residue removal under suitable application conditions
Benefits
High-Tack Temporary Fixation
The high-tack silicone adhesive provides strong initial adhesion for temporary fixation applications and helps improve workpiece positioning stability during CNC processing.
Wide Temperature Resistance
The film provides a broad temperature range, with a long-term temperature resistance of 0°C to 180°C and short-term temperature resistance of up to 220°C.
Actual temperature performance may be affected by the operating environment, exposure time, pressure, and other application conditions.
Stable PET Backing
The PET polyester film provides good tensile strength and dimensional stability, helping maintain the shape of the adhesive film during handling and processing.
Chemical Resistance
The silicone adhesive provides a degree of resistance to oils, acids, alkalis, and solvents. Actual chemical resistance depends on the type of chemical, concentration, temperature, and contact time.
Clean or Low-Residue Removal
The product is designed for clean or low-residue removal under suitable conditions. Actual removal performance may be affected by the substrate, temperature, pressure, contact time, and application environment.
Technical Specifications
| Property | Specification |
|---|---|
| Product Type | CNC Vacuum Suction Table Auxiliary Film |
| Backing Material | PET Polyester Film |
| Adhesive Type | High-Tack Silicone Adhesive |
| Thickness | 0.04–0.24 mm |
| Width | Customizable according to customer requirements |
| Long-Term Temperature Resistance | 0°C to 180°C |
| Short-Term Temperature Resistance | Up to 220°C |
| Voltage Resistance | Up to 6 kV under specified conditions |
| Tensile Strength | Good |
| Chemical Resistance | Resistance to oils, acids, alkalis, and solvents, depending on actual conditions |
| Removal Performance | Clean or low-residue removal under suitable conditions |
| Dimensional Stability | Good |
| Customization | Width and other specifications available upon request |
Applications
CNC Vacuum Suction Table Auxiliary Film can be used as a temporary fixation and auxiliary positioning material for processing applications where improved workpiece stability is required.
Typical applications include:
- CNC vacuum suction tables
- CNC engraving
- CNC cutting
- Precision cutting
- Temporary workpiece fixation
- Small workpiece positioning
- Plastic and sheet material processing
- Precision machining assistance
- Vacuum workholding
- Other applications requiring temporary auxiliary fixation
Actual suitability should be evaluated according to the workpiece material, machining process, vacuum pressure, temperature, and other operating conditions.
Working Principle
CNC vacuum suction tables normally use vacuum pressure to hold a workpiece against the table surface.
For some small, lightweight, or difficult-to-position workpieces, vacuum suction alone may not provide sufficient fixation. In such cases, an auxiliary adhesive film can provide additional temporary adhesion.
The adhesive film can be applied between the workpiece and the relevant contact surface to provide auxiliary fixation during processing.
Typical Application Process
1. Surface Cleaning
Clean the contact surfaces to remove dust, oil, moisture, and other contaminants.
2. Film Application
Apply the adhesive film evenly to the required area and avoid wrinkles and trapped air.
3. Workpiece Placement
Place the workpiece onto the adhesive surface and apply suitable pressure to ensure sufficient contact.
4. Vacuum Fixation
Activate the vacuum system and confirm that the workpiece is securely positioned.
5. Processing
Carry out CNC machining, engraving, cutting, or other processing according to the actual application.
6. Removal
After processing, remove the workpiece and adhesive film using a suitable peeling method according to the application conditions.
Specific application parameters should be tested and adjusted according to the actual workpiece and processing conditions.
Thickness Selection
The product is available in a 0.04–0.24 mm thickness range.
The appropriate thickness should be selected according to the workpiece, application method, processing conditions, and required adhesion performance.
Customizable Width
CNC Vacuum Suction Table Auxiliary Film supports customizable widths and can be matched to different CNC equipment dimensions and application requirements.
Customers can provide the following information for specification evaluation:
- Required width
- Required roll length
- Film thickness
- Actual application conditions
- Estimated purchase quantity
Yousan’s technical team can evaluate the application requirements and recommend a suitable product specification.
Why Choose Yousan CNC Vacuum Suction Table Auxiliary Film?
PET Polyester Film Backing
The PET backing provides good tensile strength and dimensional stability for industrial adhesive applications.
Silicone Adhesive
The high-tack silicone adhesive provides strong adhesion together with good temperature resistance.
Customized Specifications
The product width can be customized according to customer requirements, while other specifications can also be technically evaluated according to the application.
Precision Coating and Die-Cutting Capabilities
For applications requiring customized shapes or pre-cut adhesive films, precision coating, slitting, and die-cutting solutions can be provided according to project requirements.
Storage Recommendations
Store the product in a clean and dry environment and protect it from direct sunlight, excessive heat, moisture, and chemical contamination.
Before use, keep the product in its original packaging and follow the storage requirements specified for the particular product.
FAQ: How to Choose a High-Temperature Film for CNC Machining?
1. What type of high-temperature film is suitable for CNC machining?
The right film depends on the machining process, operating temperature, workpiece material, and application requirements. PET film with silicone adhesive may be suitable for temporary workpiece fixation on CNC vacuum tables, while polyimide (PI) film is commonly considered for high-temperature masking and electrical insulation applications.
2. Can PET silicone adhesive film be used for CNC vacuum suction tables?
Yes. PET silicone adhesive film can serve as an auxiliary fixation and positioning material for CNC vacuum suction table applications. Its suitability depends on the workpiece surface, vacuum pressure, machining conditions, and required holding force.
3. What temperature can CNC vacuum suction table auxiliary film withstand?
The specified CNC vacuum suction table auxiliary film has a long-term temperature resistance of 0°C to 180°C and a short-term temperature resistance of up to 220°C. Actual performance should be evaluated under the intended operating conditions.
4. Should I choose PET film or polyimide film for CNC machining?
PET silicone adhesive film may be suitable for temporary workpiece fixation and auxiliary positioning. Polyimide film may be more appropriate for certain high-temperature masking and insulation applications. Selection should be based on actual temperature exposure, adhesive compatibility, and the required performance.
5. How can I prevent adhesive residue after CNC machining?
Choose a film with adhesive properties compatible with the workpiece material and test its removal performance under actual machining conditions. Surface cleanliness, application time, temperature, and contact pressure can affect residue. Clean removal should be confirmed through testing rather than assumed.
6. Is the CNC auxiliary film available in custom thicknesses and widths?
Yes. The film thickness range specified for this product is 0.04–0.24 mm, and the width can be customized according to customer requirements. Roll length and other specifications can also be discussed based on the application.
7. What information is needed to select the right CNC machining film?
To recommend a suitable film, provide the workpiece material, machining method, operating temperature, required holding force, film dimensions, exposure to cutting fluids or oils, and removal requirements. These details help determine whether the product is suitable for the intended application.
Applications in Precision Manufacturing
CNC Vacuum Suction Table Auxiliary Film is suitable for precision manufacturing applications requiring temporary fixation and auxiliary positioning.
In certain CNC machining applications, conventional mechanical clamps may occupy working space or interfere with tool paths. Combining vacuum suction with an auxiliary adhesive film can provide additional temporary fixation under suitable application conditions while reducing interference from mechanical clamping around the machining area.
Conclusion
CNC Vacuum Suction Table Auxiliary Film provides a temporary fixation and auxiliary positioning solution for CNC vacuum suction table applications. The product combines a PET polyester film backing with a high-tack silicone adhesive, is available in a 0.04–0.24 mm thickness range, and supports customizable widths for different application requirements.
With 0°C to 180°C long-term temperature resistance and up to 220°C short-term temperature resistance, together with good tensile strength, dimensional stability, and resistance to oils, acids, alkalis, and solvents under suitable conditions, the film can support a range of industrial auxiliary fixation applications.
For customized width, thickness, roll length, or other specifications, customers can provide their application conditions and technical requirements for product evaluation and specification recommendations.
