Benefits
- Creates clear, highly visible markings without painting
- Helps improve workplace organization and visual management
- Flexible backing conforms to curved and irregular surfaces
- Provides durable markings for industrial environments
- Multiple colors support efficient color-coding systems
- Helps identify equipment, storage areas, walkways, and production zones
- Easy to install and replace compared with painted markings
- Suitable for both general industrial and maintenance applications
Technical Specifications
| Property | 3M™ Vinyl Tape 471 |
|---|---|
| Product Type | Vinyl Tape |
| Backing | Vinyl |
| Adhesive | Rubber |
| Adhesive Type | Pressure-sensitive |

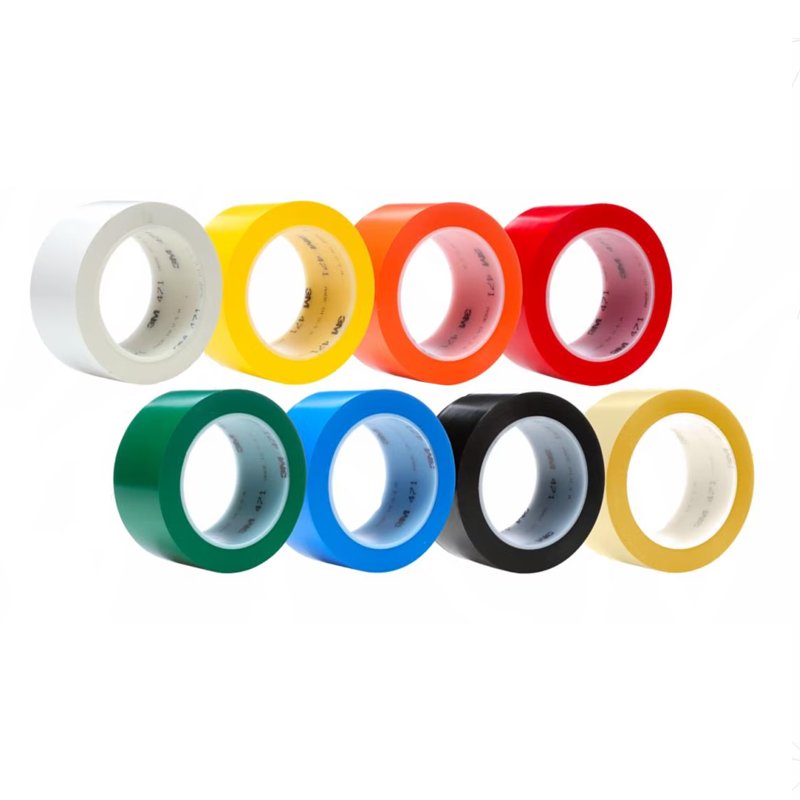

| Available Colors | Multiple colors, depending on product configuration |
| Thickness | Approx. 0.14 mm / 5.6 mil |
| Application | Marking, color coding, masking, bundling |
| Surface Finish | Smooth |
| Conformability | Excellent |
| Temperature Resistance | Up to approximately 107°C / 225°F for short-term applications |
| Indoor Use | Yes |
| Outdoor Use | Suitable for selected applications; exposure conditions should be evaluated |
| Converting | Slitting, rewinding, custom cutting and die cutting |
Technical values are typical values and may vary according to product color, size and configuration. Always refer to the applicable 3M technical documentation for specification limits.
Applications

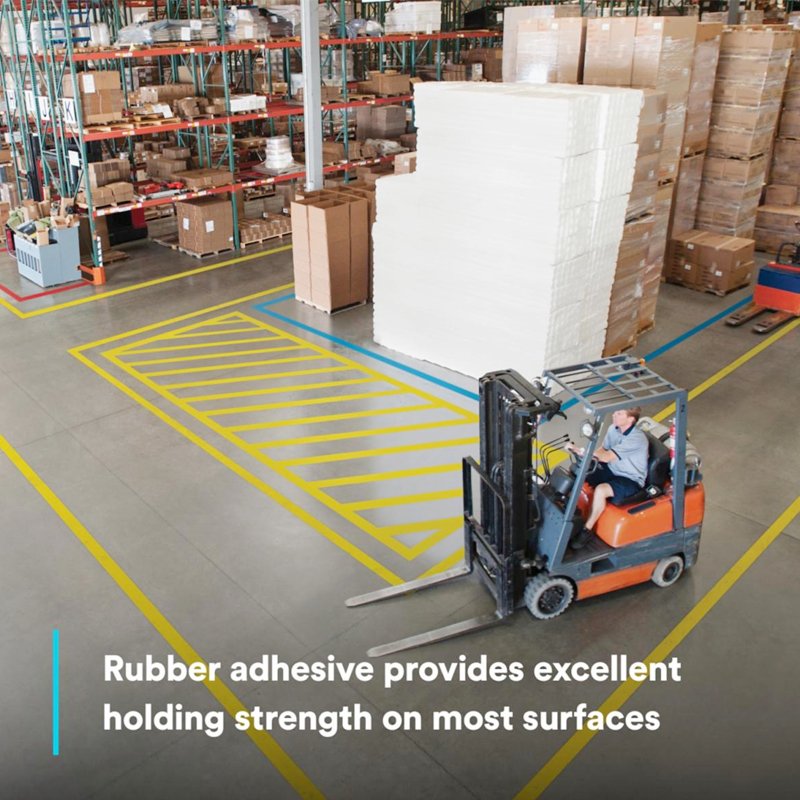

- Floor marking
- Aisle marking
- Lane marking
- Safety marking
- Color coding
- Warehouse organization
- Equipment identification
- Pipe and line identification
- Production-area marking
- Workstation identification
- Bundling
- Temporary masking
- Decorative striping
- General industrial marking
Compatible Materials
3M™ Vinyl Tape 471 can be applied to many clean, dry surfaces, including:
- Painted metal
- Aluminum
- Stainless steel
- Steel
- Glass
- Plastic
- Wood
- Industrial equipment
- Smooth concrete
- Other common painted or finished surfaces
For porous, rough, contaminated, freshly painted, powder-coated, or low-surface-energy substrates, application testing is recommended before production use.
Industries
- Manufacturing
- Automotive
- Warehouse & Logistics
- Construction
- Electronics
- Metalworking
- HVAC
- Industrial Equipment
- Aerospace
- Transportation
- Facility Management
- Maintenance & Repair
Why Choose 3M™ Vinyl Tape 471
3M™ Vinyl Tape 471 is a versatile industrial marking tape that combines flexibility, strong adhesion, abrasion resistance, and high visibility.
For factories and warehouses, it provides a convenient alternative to painted floor markings and can be used to establish visual management systems quickly. Different colors can be used to distinguish production areas, pedestrian walkways, equipment zones, storage locations, and safety boundaries.
For OEM and industrial customers, Yousan can provide converting services including:
- Custom widths
- Narrow rolls
- Rewinding
- Slitting
- Custom lengths
- Kiss cutting
- Die cutting
- Custom adhesive tape components
Installation Guide
1. Prepare the surface
Clean the surface and remove dust, grease, oil, moisture, and other contaminants.
2. Dry completely
Make sure the substrate is completely dry before application.
3. Plan the marking layout
Determine the required tape length and position before removing the liner or applying the tape.
4. Apply the tape
Place the tape gradually while maintaining alignment. Avoid excessive stretching during installation.
5. Apply pressure
Press the tape firmly against the substrate to achieve good adhesive contact.
6. Check the edges
Make sure edges and corners are firmly bonded, particularly in areas exposed to traffic or abrasion.
7. Allow adequate bonding time
Adhesion generally increases with time. Avoid excessive mechanical stress immediately after application.
Storage
Store 3M™ Vinyl Tape 471 in its original packaging under clean and dry conditions.
Recommended storage conditions are generally:
- Temperature: approximately 16–27°C (60–80°F)
- Relative humidity: approximately 40–60%
- Keep away from direct sunlight
- Avoid excessive heat and moisture
- Store rolls in their original packaging
- Avoid crushing or deforming the rolls
For best performance, use the product within the recommended shelf-life period specified by 3M.
FAQ
Q1: What is 3M™ Vinyl Tape 471 used for?
3M™ Vinyl Tape 471 is commonly used for floor marking, lane marking, color coding, safety identification, bundling and general industrial marking.
Q2: Is 3M 471 suitable for floor marking?
Yes. Floor and lane marking are important applications for 3M™ Vinyl Tape 471. The vinyl backing provides flexibility and abrasion resistance for industrial marking applications.
Q3: Is 3M 471 a masking tape?
It can be used for certain masking applications, particularly where a flexible vinyl backing is beneficial. However, it is primarily recognized as a vinyl marking and color-coding tape rather than a conventional paper masking tape.
Q4: Can 3M 471 be used on concrete?
It can be evaluated on smooth, clean concrete. Because concrete surfaces vary significantly in porosity and texture, adhesion testing is recommended before large-scale application.
Q5: Can 3M 471 be used outdoors?
It can be considered for selected outdoor marking applications, but outdoor durability depends on UV exposure, weather, temperature, substrate condition and application duration.
Q6: Is 3M 471 available in different colors?
Yes. 3M™ Vinyl Tape 471 is available in multiple colors for different marking and color-coding requirements.
Q7: Can 3M 471 be custom slit?
Yes. Yousan can provide custom slitting and rewinding according to required roll width and length.
Q8: Can 3M 471 be die-cut?
Yes. Vinyl tape can be converted into custom shapes, labels and components through die-cutting, depending on the required design and quantity.
Q9: What is the difference between 3M 471 and 3M 471+?
They are different 3M vinyl tape products and should not be treated as interchangeable. For a specific application, compare their backing, adhesive, thickness, temperature resistance and durability requirements.
Downloads
Available upon request:
- 3M 471 Floor Marking Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Adhesive Tape Selection Guide
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
