Benefits
- Excellent LSE bonding: Designed for reliable bonding to suitable low-surface-energy materials.
- Primerless bonding: Can be used without primer in suitable applications, potentially simplifying the production process.
- High initial adhesion: Provides high initial bonding performance across different temperature conditions.
- Stress compensation: The viscoelastic acrylic foam core helps accommodate stress between dissimilar materials.
- Gap compensation: The 0.8 mm acrylic foam structure can conform to minor surface irregularities.
- Curved-surface bonding: Flexible acrylic foam supports mounting on curved surfaces and around edges.
- Permanent mounting: Suitable for a broad range of permanent assembly applications.
- Flexible converting: Can be converted into strips, rolls and custom die-cut parts.
Technical Specifications
| Property | Tesa 6308 |
|---|---|
| Product Type | Double-Sided Acrylic Foam Tape |
| Adhesive Type | LSE |
| Backing / Carrier | Acrylic Foam |
| Construction | Triple-Layer Symmetrical |
| Color | Gray |
| Total Thickness | 800 μm / 0.8 mm |
| Liner | PE |
| Temperature Resistance, Long Term | 80°C |
| Temperature Resistance, Short Term | 120°C |
| Adhesion to ABS, Initial | 26 N/cm |
| Adhesion to ABS, After 3 Days | 30 N/cm |
| Adhesion to PP, Initial | 29 N/cm |
| Adhesion to PP, After 3 Days | 32 N/cm |
| Adhesion to Steel, Initial | 28 N/cm |
| Adhesion to Steel, After 3 Days | 33 N/cm |
| Other Available Thicknesses | 400 / 500 / 640 / 1100 / 1500 μm |
The technical values are representative/typical values from tesa documentation and should not be treated as specifications.
Applications
- Decorative glass panel mounting
- Plastic panel mounting
- Nameplate mounting
- Parts and component mounting
- TV back panel mounting
- Plastic panel assembly
- LSE plastic bonding
- Decorative component mounting
- Electronics assembly
- Appliance component mounting
- Interior component mounting
- Permanent industrial mounting
- Metal-to-plastic bonding
- Plastic-to-plastic bonding
- Curved component mounting
- Edge and profile mounting
The first four applications are specifically identified by tesa as example mounting applications.
Compatible Materials
Tesa 6308 is particularly suitable for applications involving low-surface-energy substrates.
Potential materials include:
- PP (polypropylene)
- PE (polyethylene)
- TPO
- ABS
- Other suitable LSE plastics
- Polycarbonate (PC)
- Acrylic / PMMA
- Painted metal
- Aluminum
- Steel
- Stainless steel
- Glass
- Plastic panels
- Decorative panels
- Molded plastic components
The official technical data provides adhesion values specifically for ABS, PP and steel, including both initial and 3-day adhesion. Actual compatibility should be validated on the customer’s specific substrate and surface condition.
Industries
- Automotive
- Consumer Electronics
- TV & Display
- Appliances
- Electronics
- Furniture
- Interior Decoration
- Building & Construction
- Sign & Display
- Industrial Equipment
- Plastic Components
- General Industrial Assembly
Why Choose
- LSE adhesive technology for demanding low-surface-energy substrates
- Primerless bonding potential for suitable applications
- 800 μm acrylic foam provides thickness and conformability
- High initial adhesion across various temperatures
- Viscoelastic foam core helps manage stress between different materials
- Suitable for curved and edge surfaces
- Permanent mounting performance
- Multiple thickness options for different assembly requirements
- Professional converting and die-cutting available from Yousan
For Yousan’s B2B positioning, the strongest differentiator is:
tesa 6308 + LSE bonding + primerless application + custom die-cutting
Installation Guide
- Clean the bonding surfaces
Remove dust, oil, grease, moisture and other contaminants. - Check substrate compatibility
Confirm that the substrates are suitable for LSE bonding and conduct application testing where necessary. - Prepare the tape
Slit or die-cut the tape according to the required dimensions. - Apply the first side

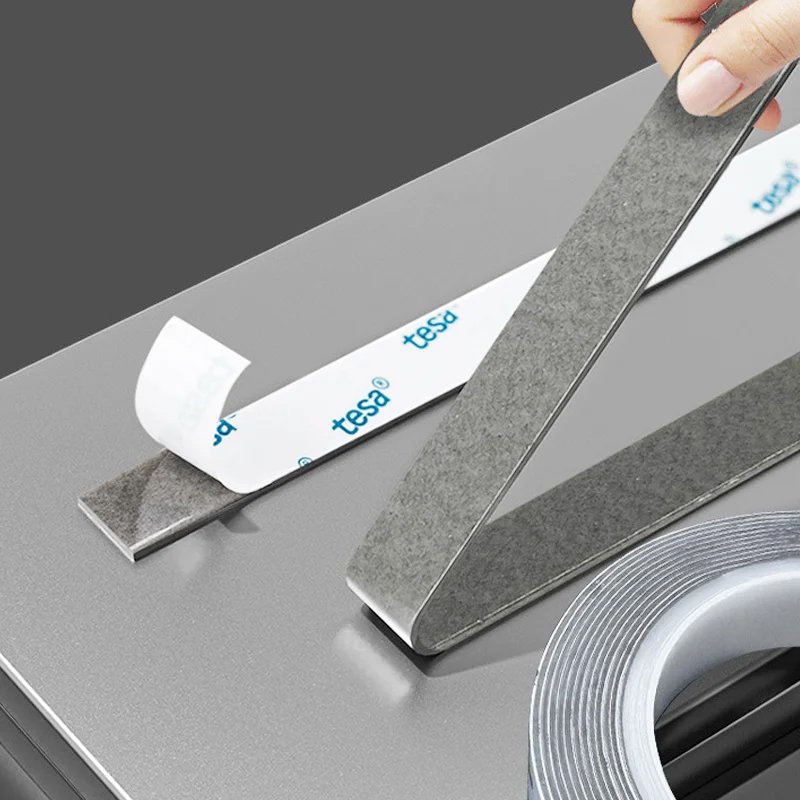

Remove the liner and apply the tape evenly to the first substrate. - Apply sufficient pressure
Press the tape firmly over the complete bonding area to establish good surface contact. - Remove the remaining liner
Avoid touching or contaminating the exposed adhesive. - Join the second substrate
Align the components carefully and press them together. - Allow bonding to develop
Avoid excessive mechanical stress immediately after assembly and allow sufficient time for adhesion development.
Storage
- Store in the original packaging.
- Keep in a clean, dry and well-ventilated environment.
- Protect from direct sunlight and excessive heat.
- Avoid contamination, moisture and dust.
- Keep the adhesive surface protected until application.
- Store rolls in a stable position to prevent deformation.
- Follow the latest manufacturer’s storage recommendations for the applicable product version.
FAQ
1. What is tesa 6308?

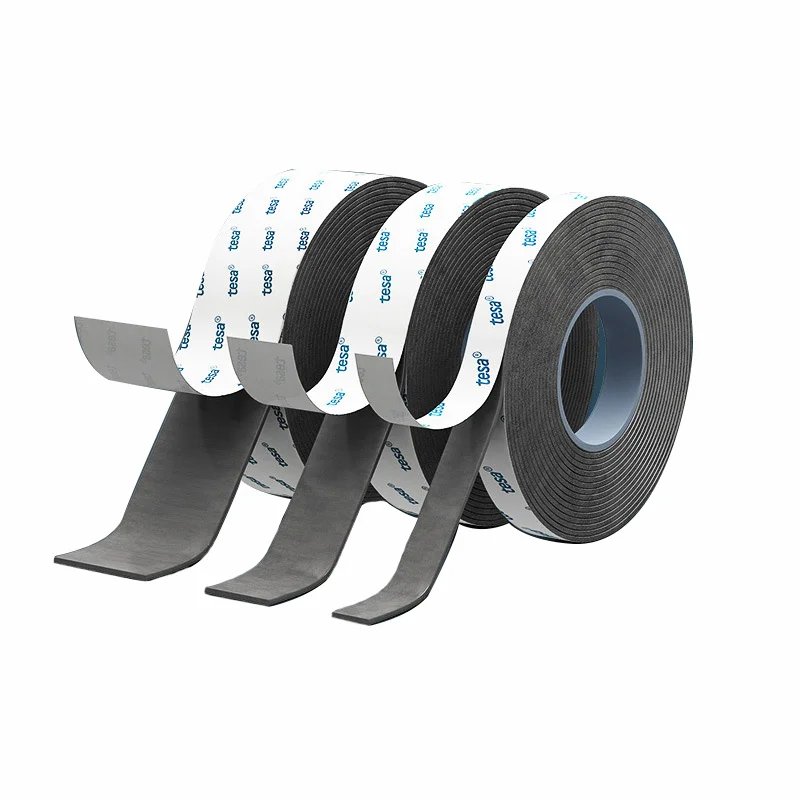

tesa 6308 New Bond is a gray double-sided acrylic foam tape with high-performance LSE adhesive.
2. What is the thickness of tesa 6308?
The standard thickness is 800 μm (0.8 mm). Other formats include 400, 500, 640, 1100 and 1500 μm.
3. Is tesa 6308 suitable for LSE plastics?
Yes. The product is specifically designed for excellent bonding performance on suitable low-surface-energy substrates.
4. Can tesa 6308 be used without primer?
Yes, in suitable applications. tesa specifically states that its high-performance LSE adhesive can provide efficient bonding without primer.
5. Is tesa 6308 suitable for PP?
Yes. tesa’s technical data reports adhesion to PP of 29 N/cm initially and 32 N/cm after 3 days under the stated test conditions. Actual application performance should still be validated.
6. What is the temperature resistance of tesa 6308?
The listed temperature resistance is 80°C long term and 120°C short term.
7. Can tesa 6308 be used on curved surfaces?
Yes. Its flexible acrylic foam construction is suitable for applications involving curved surfaces and edges, subject to application testing.
8. Can tesa 6308 replace mechanical fasteners?
It can be considered for permanent mounting applications where the required bonding performance is achieved. Application-specific testing is recommended before replacing screws, clips or other mechanical fasteners.
9. Can tesa 6308 be die-cut?
Yes. It can be considered for custom converting into strips, pads and precision die-cut parts according to the application.
10. Can Yousan provide custom tesa 6308 converting?
Yes. Yousan can provide slitting, laminating, kiss cutting and precision die-cutting based on customer drawings and dimensional requirements.
Downloads
Available upon request:
- Tesa 6308 Foam Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
