Benefits
- Reliable mounting: Provides dependable adhesion for a variety of substrates.
- Surface conformability: PE foam adapts to slightly uneven or irregular surfaces.
- Gap compensation: Foam construction helps fill small gaps between mating surfaces.
- Cushioning: Helps absorb minor vibration and movement between bonded components.
- Clean appearance: Black foam construction can provide a neat appearance for dark or black components.
- Process efficiency: Double-sided adhesive construction can reduce the need for screws, clips, or other mechanical fastening methods.
- Custom converting: Can be supplied in rolls, strips, narrow widths, or custom die-cut parts.
Technical Specifications
| Property | 3M™ 4492 Black |
|---|---|
| Product Type | Double Coated PE Foam Tape |
| Foam Carrier | Polyethylene (PE) Foam |
| Color | Black |
| Adhesive | Pressure-Sensitive Adhesive |
| Construction | Double Coated |
| Primary Functions | Mounting, bonding, sealing, cushioning |
| Form | Roll / Converted Parts |
| Converting | Slitting, rewinding, laminating, die-cutting |
| Thickness | 0.8mm |
| Width | Customizable according to application |
| Length | Available according to roll specification |
| Temperature Resistance | 70~82℃ |
Note: Exact thickness, adhesion, temperature resistance, liner construction, and other performance values should be confirmed against the latest 3M™ 4492 Black TDS for the specific product configuration.
Applications
- General component mounting
- Sign and display mounting
- Nameplate and label mounting
- Decorative trim attachment
- Panel and profile mounting
- Lightweight assembly
- Sealing and gap filling
- Cushioning between components
- Appliance component mounting
- Furniture and interior assembly
- Industrial component bonding
- Custom die-cut adhesive parts
Compatible Materials
3M™ 4492 Black may be used for bonding suitable combinations of:
- Metal
- Aluminum
- Painted metal
- Glass
- ABS
- PVC
- Acrylic
- Polycarbonate (PC)
- Plastic components
- Wood and engineered wood
- Decorative panels
- Other substrates after application testing
Substrate preparation and adhesive compatibility testing are recommended, especially for low-surface-energy plastics such as PE and PP.
Industries
- Automotive
- Appliance
- Electronics
- Furniture
- Sign & Display
- Building & Construction
- Industrial Manufacturing
- HVAC
- Consumer Products
- General Assembly
Why Choose

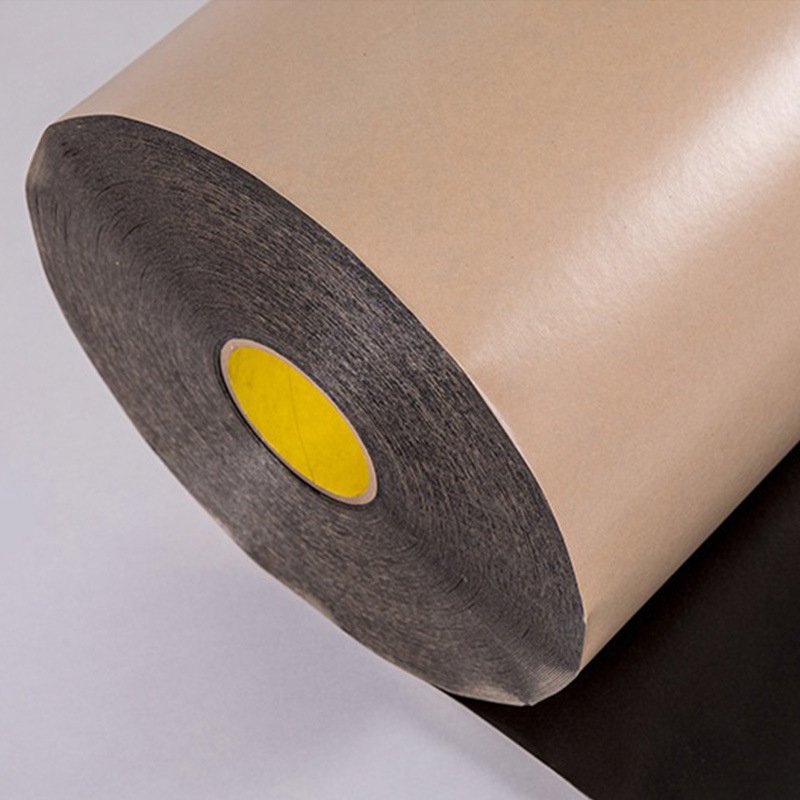

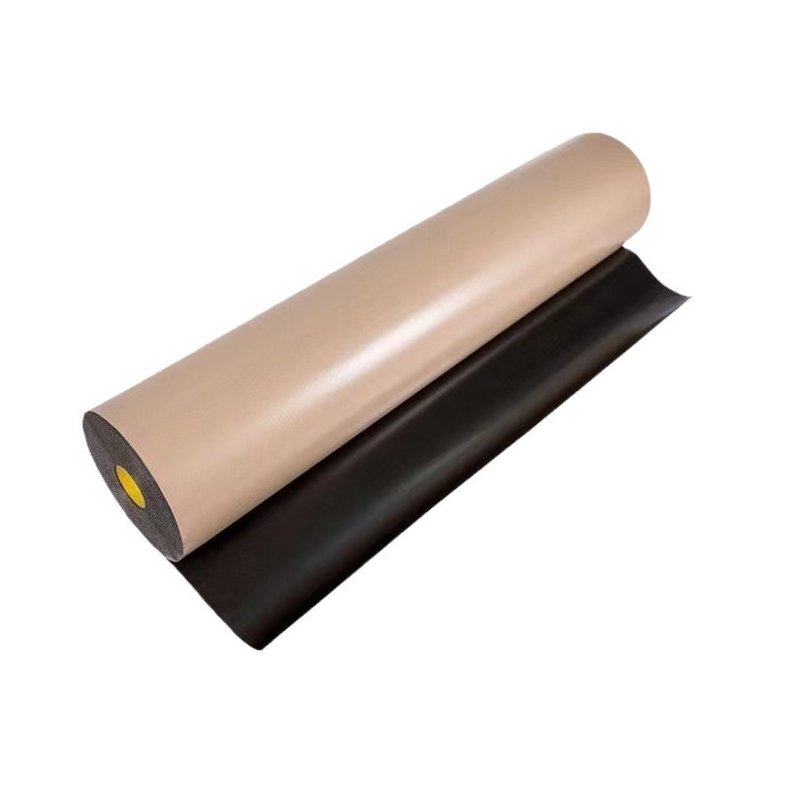

3M™ Double Coated Polyethylene Foam Tape 4492 Black is a practical solution for applications requiring a flexible PE foam carrier and double-sided adhesive construction.
With Yousan’s converting capabilities, 3M™ 4492 can be supplied in custom widths, rolls, strips, and precision die-cut adhesive components. We support OEM and industrial customers with material selection, sample preparation, slitting, laminating, rewinding, and custom converting according to project requirements.
Installation Guide
- Clean the surfaces: Remove dust, oil, grease, moisture, and other contaminants.
- Dry completely: Ensure both bonding surfaces are clean and dry before application.
- Check compatibility: Test the tape on the actual substrates and surface finish.
- Apply the tape: Apply 3M™ 4492 evenly without stretching the foam tape.
- Apply firm pressure: Use a roller or suitable pressure to ensure intimate contact with the substrate.
- Remove the liner: Avoid touching or contaminating the exposed adhesive.
- Join the substrates: Align the components carefully and apply firm pressure.
- Allow sufficient dwell time: Adhesion generally increases over time; follow the applicable 3M technical recommendations for the specific application.
Storage
Store 3M™ 4492 Black in its original packaging in a clean, dry environment away from direct sunlight, excessive heat, and moisture.
For the recommended storage temperature, relative humidity, shelf life, and storage period, please refer to the latest 3M™ 4492 technical documentation for the specific product configuration.
FAQ
Q1: What is 3M™ 4492 Black?
3M™ 4492 Black is a double-coated polyethylene (PE) foam tape designed for mounting, bonding, sealing, cushioning, and general assembly applications.
Q2: Is 3M™ 4492 a VHB tape?
No. 3M™ 4492 is a PE foam tape and should not be categorized as a 3M™ VHB acrylic foam tape.
Q3: Is 3M™ 4492 suitable for outdoor applications?
Suitability depends on the specific environmental conditions, substrates, and required service life. Application testing and review of the current 3M technical data are recommended.
Q4: Can 3M™ 4492 be die-cut?
Yes. The tape can be converted into strips, pads, gaskets, custom shapes, and other adhesive components, subject to the specific construction and converting requirements.
Q5: Can Yousan supply custom widths of 3M™ 4492?
Yes. Yousan supports custom slitting, rewinding, laminating, and die-cutting according to customer requirements.
Q6: Can 3M™ 4492 bond plastic?
It can be used with suitable plastic substrates, but adhesive performance depends on the plastic type, surface energy, surface treatment, and application conditions. Testing is recommended before production.
Q7: What is the difference between 3M™ 4492 and 3M™ VHB™ tape?
3M™ 4492 uses a PE foam carrier, while 3M™ VHB™ products generally use an acrylic foam construction. They serve different application and performance requirements.
Downloads
Available upon request:
- 3M 4492 Black PE Foam Tape Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
