Glass Fiber Teflon Tape for High Temperature, Non-Stick & Industrial Applications
Teflon Tape

Glass Fiber Teflon Tape for High Temperature, Non-Stick & Industrial Applications

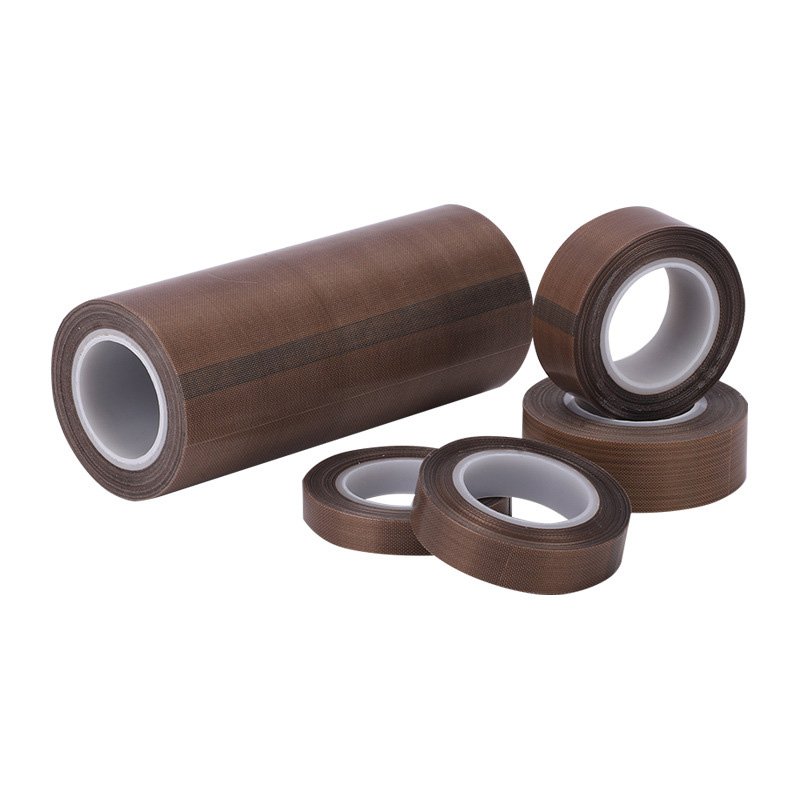

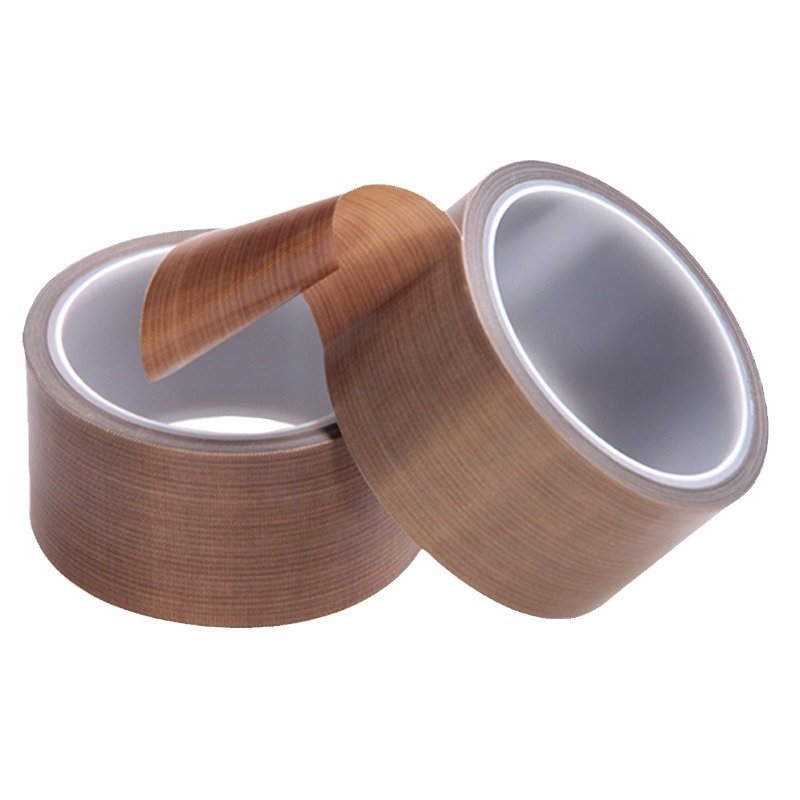

Glass Fiber Teflon Tape is a high-performance composite tape made of woven fiberglass fabric impregnated with PTFE (Teflon) coating and backed with a silicone or acrylic adhesive. It offers a smooth, non-stick surface, excellent heat resistance, and high mechanical strength, making it ideal for applications in heat sealing, lamination, electrical insulation, and industrial release liners.

Features:

  • Excellent heat resistance: withstands temperatures up to -70°C ~ 300°C.
  • Non-stick PTFE surface for easy release and anti-adhesion.
  • High tensile strength due to fiberglass reinforcement.
  • Chemical resistance to acids, solvents, and oils.
  • Available with silicone or acrylic adhesive for different surfaces.
  • Can be die-cut, slit, or laminated for custom applications.

Applications:

Heat sealing and packaging machinery (e.g., impulse sealers), Release sheets for vacuum pressing, composite molding, and hot pressing, Insulation wrapping for wires, cables, and heating elements, Non-stick surface lining in food processing and industrial rollers, Battery and EV module insulation where high temp + mechanical strength are required.

Additional Documents:

Glass Fiber Teflon Tape (TDS)

Adhesive Tapes Selection Guide

Category:

Technical data

Product Code / Technical Parameters P0213 P0216 P0218 P0225 P0230 P0213Y P0213BY P0216Y P0218Y P0225Y

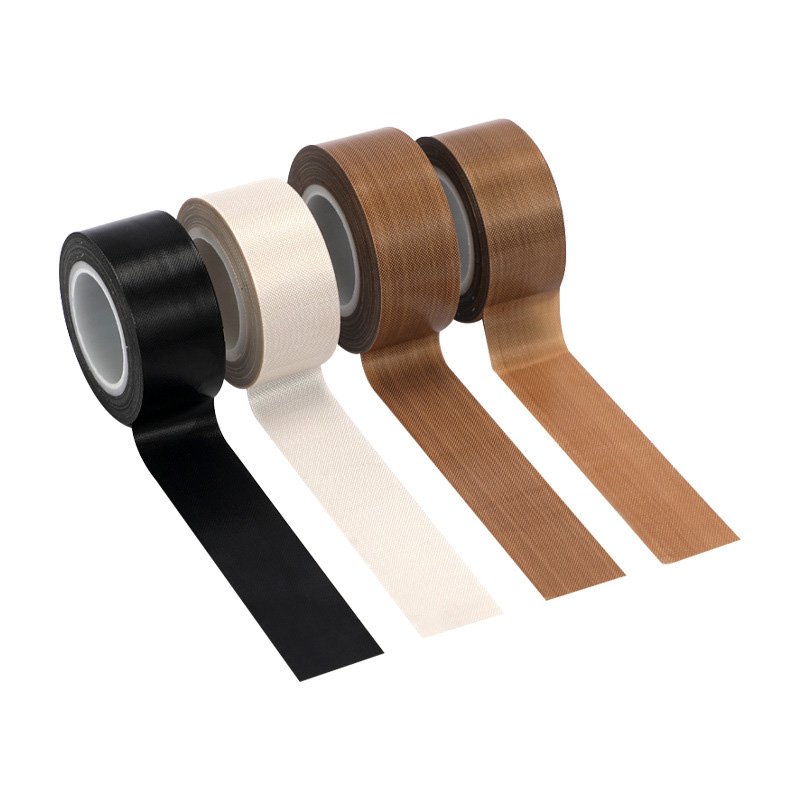

Color Brown/Black/
creamy-white		 Brown/Black/
creamy-white		 Brown Brown Brown Brown Black Brown Brown Brown
Total Thickness[mm]    0.13 0.16 0.18 0.25 0.3 0.13 0.13 0.16 0.18 0.25
Backing Thickness[mm] 0.08 0.08 0.13 0.18 0.25 0.08 0.08 0.11 0.125 0.18
Backing Teflon Fiberglass Cloth
Adhesive Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone
Release material – – – – – Yellow release liner Yellow release liner Yellow release liner Yellow release liner Yellow release liner
180°Peel Strength[N/100mm] 21 22 22 24 24 21 21 22 22 24
Tensile Strength[N/100mm] 900 1300 1300 1950 2250 900 900 1300 1300 1950
Long-Term Temperature Resistance[℃] –70～260 –70～260 –70～260 –70～260 –70～260 –70～260 –70～260 –70～260 –70～260 –70～260
Short-Term Temperature Resistance[℃] –70～300 –70～300 –70～300 –70～300 –70～300 –70～300 –70～300 –70～300 –70～300 –70～300

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

✔️ OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

✔️ ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

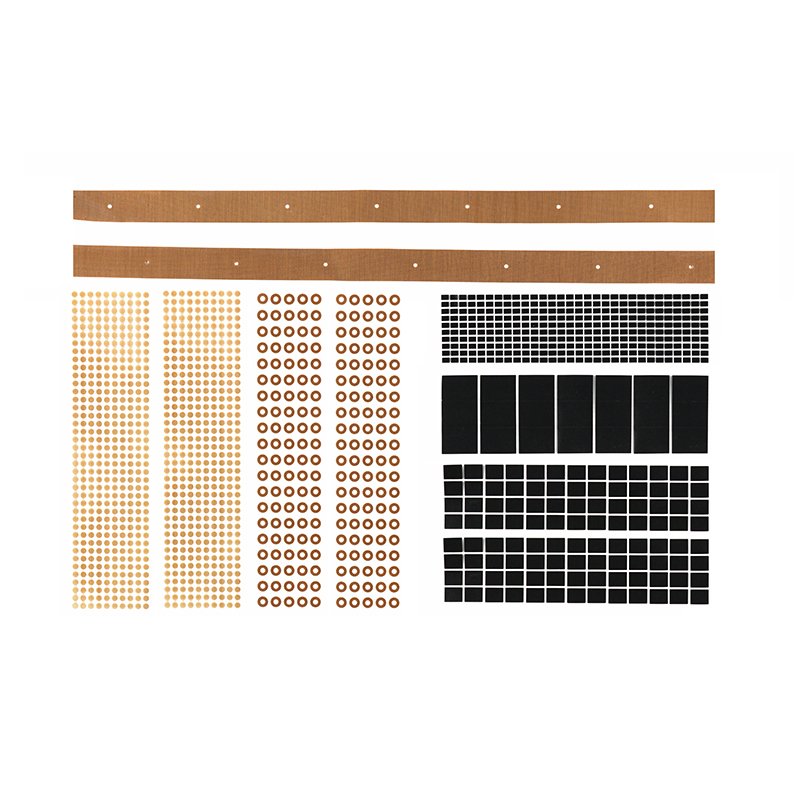

✔️ Die cutting tape are available in rolls, sheets, or custom-cut parts, tailored to a wide range of industry standards or customer-specific designs.

Glass Fiber Teflon Tape Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
