Benefits
- Reliable Bonding: Provides strong adhesion to various materials, including ABS, glass, PC, PE, and steel.
- Excellent Initial Tack: Supports quick positioning and bonding during assembly.
- High Temperature Resistance: Suitable for selected applications involving short-term exposure to elevated temperatures.
- Efficient Die-Cutting: The thick PE-coated paper liner supports precision converting and custom adhesive shapes.
- Material Versatility: Suitable for foam, felt, plastic molded parts, nameplates, and other industrial components.
- Moisture and UV Resistance: Helps maintain adhesive performance in demanding environmental conditions.
- Industrial Converting Compatibility: Suitable for slitting, laminating, kiss-cutting, and custom die-cutting, subject to application requirements.
Technical Specifications
| Property | Typical Value |
|---|---|

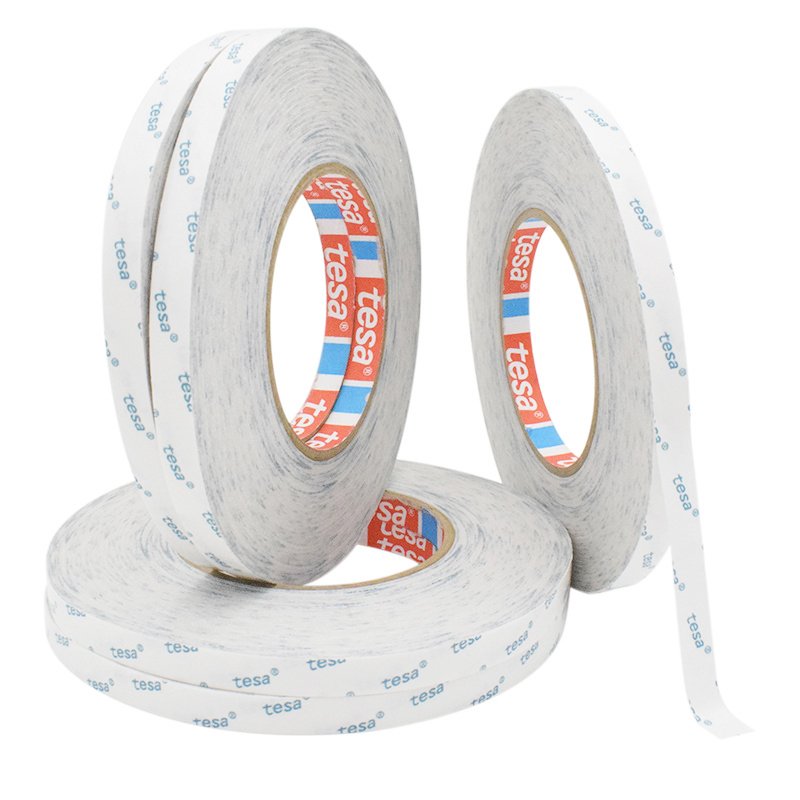

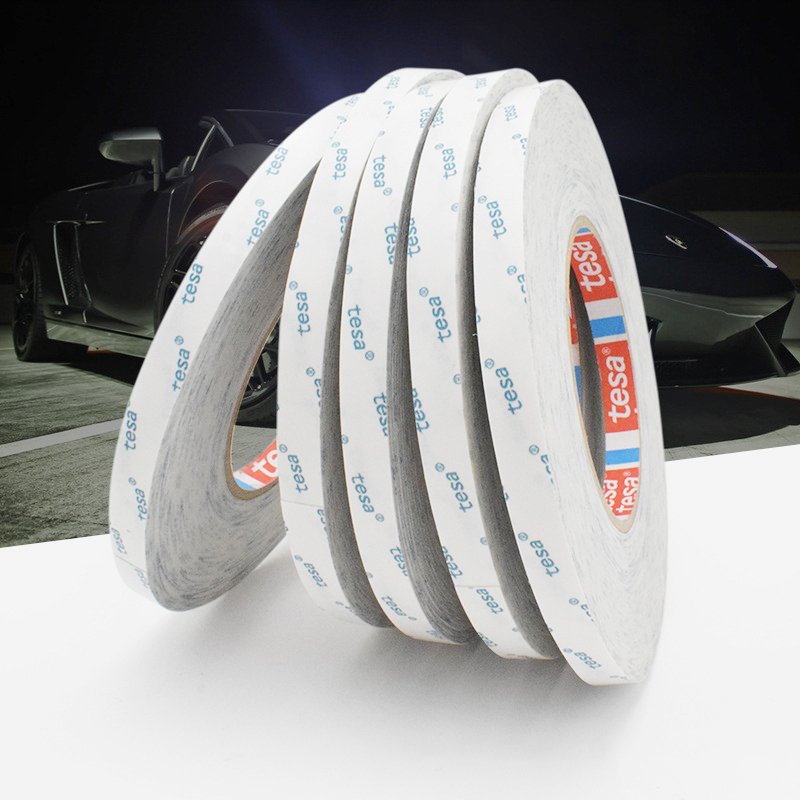

| Product | Tesa 60980 |
| Product Type | Double-sided non-woven adhesive tape |
| Total Thickness | 140 μm |
| Color | Translucent |
| Backing Material | Non-woven |
| Adhesive Type | Tackified acrylic |
| Liner Type | PE-coated paper |
| Tack | Very good |
| Static Shear Resistance at 23°C | Good |
| Humidity Resistance | Very good |
| UV Ageing Resistance | Very good |
| Chemical Resistance | Good |
| Softener Resistance | Medium |
| Short-Term Temperature Resistance | 200°C |
| Long-Term Temperature Resistance | 80°C |
Typical Adhesion Values
| Substrate | Initial Adhesion | After 14 Days |
|---|---|---|
| ABS | 9.0 N/cm | 11.2 N/cm |
| Glass | 9.9 N/cm | 10.4 N/cm |
| PC | 10.2 N/cm | 12.2 N/cm |
| PE | 4.3 N/cm | 4.6 N/cm |
| Steel | 9.8 N/cm | 12.1 N/cm |
The values above are typical average values and should not be used as product specifications. Actual performance depends on substrate, surface condition, application method, and environmental conditions.
Applications
- Foam and felt lamination
- Mounting plastic molded parts
- Nameplate mounting
- Automotive interior material fixing
- Ceiling PVC sheet mounting
- Fixing acrylic display panels
- Mounting expanded polystyrene components
- Gasket and sealing material fixation
- Paper and plastic film lamination
- Temporary positioning of leather and leather products
- Custom adhesive component production
- Industrial assembly and material bonding
Application suitability should be evaluated through testing with the actual substrate and operating conditions.
Compatible Materials
Tesa 60980 can be evaluated for bonding and laminating the following materials:
- ABS
- Polycarbonate (PC)
- Polyethylene (PE)
- Glass
- Steel
- Plastic molded parts
- Foam materials
- Felt
- PVC sheets
- Acrylic panels
- Expanded polystyrene
- Paper and plastic films
- Leather and synthetic leather
Note: PE and other low-surface-energy materials may require application-specific testing, surface treatment, or process optimization.
Industries
- Automotive Interior
- Electronics and Electrical Components
- Furniture and Decorative Materials
- Signage and Nameplate Manufacturing
- Plastic Product Manufacturing
- Display and Advertising
- Foam and Felt Converting
- Packaging and Industrial Converting
- General Industrial Assembly
- Leather and Textile Processing
Why Choose tesa 60980 from Yousan?
Yousan provides adhesive tape converting and customized processing services for industrial applications.
Our capabilities include:
- Custom roll slitting
- Precision die-cutting
- Kiss-cut adhesive shapes
- Laminating and material bonding
- Custom widths and roll lengths
- Adhesive component converting
- Foam, felt, plastic, and film lamination
- Application-based tape selection support
We can help evaluate tesa 60980 for your specific bonding requirements and provide customized tape formats based on drawings, dimensions, application conditions, and production needs.
Installation Guide
1. Prepare the Surface
Ensure that the bonding surfaces are clean, dry, and free from dust, oil, grease, and other contaminants.
2. Check Material Compatibility
Test the tape on the actual substrates, especially when bonding PE, PVC, foam, felt, or plastic molded parts.
3. Apply the Tape
Apply the tape evenly without stretching. Avoid wrinkles, air bubbles, or contamination of the adhesive surface.
4. Apply Firm Pressure
Use consistent pressure to improve adhesive contact and wetting. A roller or suitable pressing tool may be used.
5. Allow Sufficient Bond Development
Adhesion generally increases over time. The required dwell time depends on the substrate, temperature, pressure, and application conditions.
6. Validate Before Mass Production
Conduct peel, shear, temperature, humidity, and ageing tests where necessary before production use.
Storage
- Store in the original packaging.
- Keep the tape in a clean and dry environment.
- Protect it from direct sunlight and excessive heat.
- Avoid high humidity and contamination.
- Store under controlled conditions according to the latest tesa technical documentation.
- Check product condition before use, particularly after extended storage.
FAQ
1. What type of tape is tesa 60980?
Tesa 60980 is a 140 μm double-sided non-woven tape with a tackified acrylic adhesive.
2. Is tesa 60980 suitable for foam and felt?
Yes. Foam and felt lamination are listed among its main application fields.
3. What is the thickness of tesa 60980?
The total tape thickness is approximately 140 μm.
4. Can tesa 60980 bond PE materials?
It shows typical adhesion to PE, but actual performance depends on the specific PE material, surface condition, and application. Testing is recommended.
5. What is the temperature resistance of tesa 60980?
The typical short-term temperature resistance is 200°C, while the long-term temperature resistance is 80°C.
6. Is tesa 60980 suitable for die-cutting?
Yes. Its PE-coated paper liner is designed to support good die-cutting performance.
7. Can Yousan provide custom die-cut tesa 60980?
Yousan can evaluate custom slitting, laminating, and die-cutting requirements based on the product format, drawing, tolerance, and application.
8. Is tesa 60980 suitable for outdoor applications?
It has very good UV ageing and humidity resistance, but outdoor suitability should be validated according to the specific environment and service conditions.
Downloads
Available upon request:
- Tesa 60980 Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
