Benefits
Strong Permanent Bonding
The 100MP acrylic adhesive technology provides reliable structural bonding performance and can replace:
- Screws
- Rivets
- Welding
- Mechanical fasteners
- Liquid adhesives
This helps reduce assembly steps while improving product appearance.
Better Gap Filling Capability
Compared with thinner transfer tapes such as F9460PC (0.05 mm) and F9469PC (0.13 mm), F9473PC provides a thicker adhesive layer for improved contact on:
- Slightly rough surfaces
- Textured materials
- Curved components
- Uneven substrates
Excellent Outdoor Durability
The acrylic adhesive provides resistance against:
- UV exposure
- Moisture
- Temperature changes
- Chemical exposure
Suitable for demanding industrial environments.
Invisible Bonding Appearance
The transparent adhesive allows:
- Clean product appearance
- Hidden bonding solutions
- Improved design flexibility
Ideal for glass, transparent plastics, and decorative applications.
Technical Specifications
| Property | Specification |
|---|---|

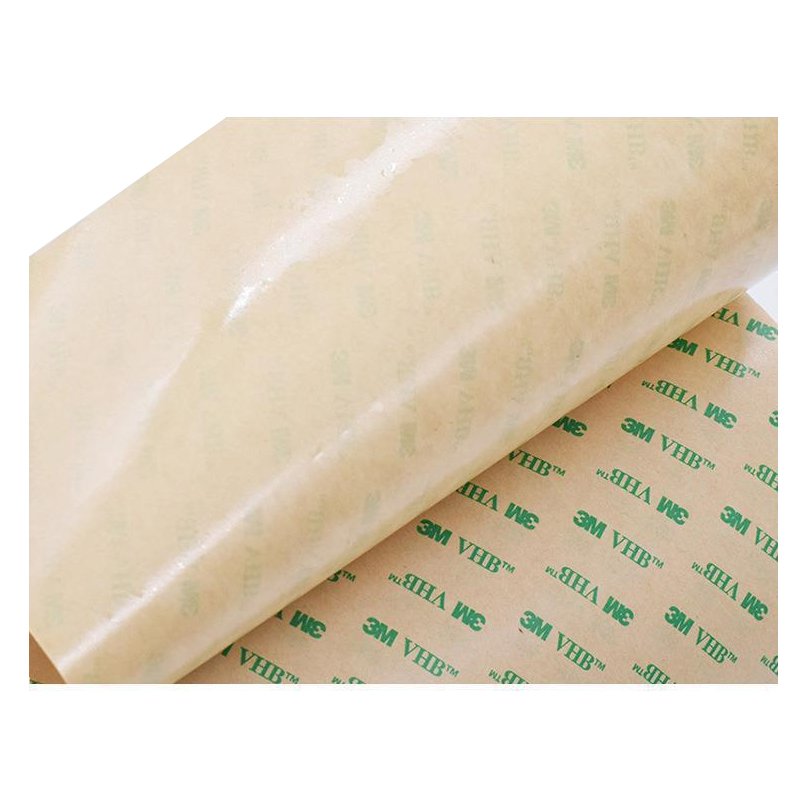

| Product Name | 3M™ VHB™ F9473PC Adhesive Transfer Tape |
| Tape Type | Adhesive Transfer Tape |
| Adhesive Technology | 3M™ High Performance Acrylic Adhesive 100MP |
| Carrier | None |
| Color | Transparent |
| Thickness | Approx. 0.25 mm (10 mil) |
| Liner | Polycoated Kraft Paper |
| Temperature Resistance | Up to 149°C continuous |
| Short-Term Temperature Resistance | Up to 260°C |
| UV Resistance | Excellent |
| Chemical Resistance | Excellent |
| Outdoor Use | Yes |
| Processing | Die Cutting / Laminating / Slitting |
Applications
Electronics
- Display component bonding
- Electronic housing assembly
- Heat sink mounting
- Sensor attachment
- FPC reinforcement bonding
- Battery component fixing
Automotive
- Interior trim attachment
- Decorative parts
- Emblem mounting
- Sensor fixation
- Panel bonding
Industrial Assembly
- Metal panel bonding
- Equipment assembly
- Nameplates
- Industrial signage
- Decorative components
Glass & Display Applications
- Glass panel bonding
- Transparent component assembly
- Acrylic sheet mounting
- Decorative trim attachment
Compatible Materials
| Material | Application |
|---|---|
| Aluminum | Panels and structures |
| Stainless Steel | Industrial parts |
| Glass | Display applications |
| Acrylic | Transparent panels |
| Polycarbonate (PC) | Electronic housings |
| ABS Plastic | Mechanical components |
| PET Film | Film lamination |
| Polyimide Film | Electronics |
| Painted Metal | Equipment panels |
| Powder Coated Surfaces | Industrial bonding |
Industries
- Consumer Electronics
- Automotive Electronics
- Display Manufacturing
- Industrial Equipment
- Medical Devices
- Renewable Energy
- Sign & Graphics
- Precision Manufacturing
Why Choose 3M™ VHB™ F9473PC?
Compared with standard thin double-sided tapes, F9473PC offers:
✅ Higher adhesive thickness
✅ Better stress absorption
✅ Improved gap filling
✅ Stronger permanent bonding
✅ Excellent environmental durability
✅ Clean invisible bond line
It is especially suitable for applications where high strength + design appearance + long-term reliability are required.
Product Comparison
| Product | Thickness | Main Feature |
|---|---|---|
| 3M™ VHB™ F9460PC | 0.05 mm | Ultra-thin bonding |
| 3M™ VHB™ F9469PC | 0.13 mm | Balanced strength and thickness |
| 3M™ VHB™ F9473PC | 0.25 mm | Maximum gap filling and stress relaxation |
Installation Guide
- Clean the bonding surface with IPA or recommended cleaner.
- Remove dust, oil, and contaminants.
- Ensure surfaces are dry.
- Apply tape without stretching.
- Apply firm pressure to improve adhesive contact.
- Allow sufficient dwell time for maximum bond strength.
- Test performance under actual application conditions.
Storage
Recommended storage conditions:
- Temperature: 15–25°C
- Relative Humidity: 40–60% RH
- Keep original packaging sealed
- Avoid direct sunlight
- Protect from moisture and contamination
- Store rolls horizontally
- Follow FIFO inventory management
FAQ
What is 3M™ VHB™ F9473PC used for?
F9473PC is mainly used for permanent bonding of metals, plastics, glass, and industrial components where high strength and durability are required.
Is F9473PC a foam tape?
No. F9473PC is an adhesive transfer tape without a foam carrier. It uses a thick acrylic adhesive layer.
What is the difference between F9473PC and F9469PC?
| Product | F9473PC | F9469PC |
|---|---|---|
| Adhesive | 100MP Acrylic | 100MP Acrylic |
| Thickness | 0.25 mm | 0.13 mm |
| Gap Filling | Excellent | Good |
| Stress Absorption | Higher | Medium |
| Application | Uneven/curved surfaces | General high-strength bonding |
Can F9473PC be die-cut?
Yes. It is widely used for precision die-cut adhesive components.
Can F9473PC replace mechanical fasteners?
Yes. For many industrial applications, it can replace screws, rivets, and welding processes.
Downloads
Available upon request:
- 3M™ VHB™ F9473PC Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
