Benefits
- Provides strong and reliable bonding without a carrier
- Conforms well to irregular and textured surfaces
- Helps improve contact with rough substrates
- High tack supports efficient assembly
- Adhesive can flow into small surface irregularities without heat
- Suitable for bonding foam and gasket materials
- Supports fabric and textile lamination
- Good environmental resistance for demanding applications
- Carrierless construction provides a thin adhesive interface
- Suitable for precision die-cut adhesive components
- Can help simplify material assembly and lamination processes
Technical Specifications
| Property | Specification |
|---|---|

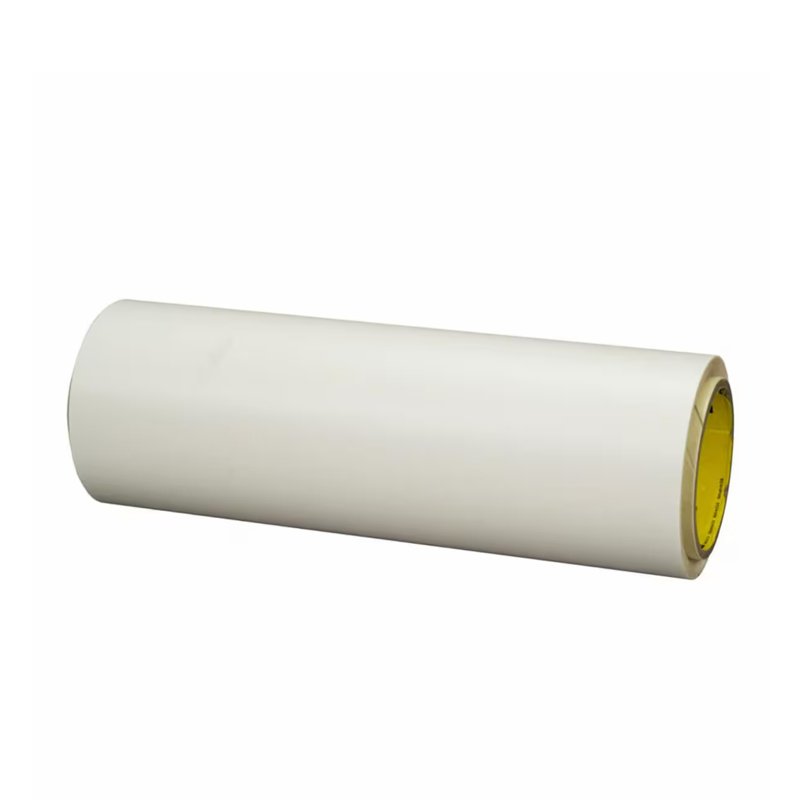

| Product | 3M™ Adhesive Transfer Tape 9773WL+ |
| Previous / Common Model | 3M™ 9773WL |
| Tape Type | Adhesive transfer tape |
| Adhesive | 3M™ Adhesive 300MP+ |
| Adhesive Type | Acrylic |
| Carrier | None |
| Adhesive Thickness | 0.076 mm (3 mil) |
| Liner | 96 lb white polycoated kraft paper |
| Liner Thickness | 0.18 mm (7 mil) |
| Liner Color | White |
| Product Color | Transparent |
| Density | 0.91 g/cm³ |
| Short-Term Temperature Resistance | 121°C (250°F) |
| Long-Term Temperature Resistance | 107°C (225°F) |
| 180° Peel – Stainless Steel, 72 h, 23°C | 11.55 N/cm |
| 180° Peel – ABS, 72 h, 23°C | 8.96 N/cm |
| 180° Peel – PP, 72 h, 23°C | 4.82 N/cm |
| Static Shear – Stainless Steel, 23°C | 10,000 min |
| Static Shear – Stainless Steel, 70°C | 10,000 min |
These are typical values from 3M’s technical documentation and should not be used as product specifications. Actual performance depends on substrate, surface preparation, pressure, dwell time, temperature and application conditions.
Applications
3M™ Adhesive Transfer Tape 9773WL+ is suitable for a broad range of industrial bonding and converting applications, including:
- Foam gasket bonding
- Foam lamination
- Gasket fabrication
- Fabric bonding
- Textile lamination
- Floor covering lamination
- Plastic bonding
- Rubber bonding
- Wood bonding
- Felt bonding
- Metal bonding
- Component assembly
- Rough-surface bonding
- Textured-surface bonding
- Industrial laminating
- Die-cut adhesive components
3M specifically identifies applications involving foam gaskets, textured and rough surfaces, fabric and textile materials, and floor covering lamination.
Compatible Materials
3M™ 9773WL+ can be used with a wide variety of substrates, including:
Plastics
- ABS
- Polypropylene (PP)
- Other plastics
Foams
- Polyurethane foam
- Polyethylene foam
- Other fabricated foams
- Foam gasket materials
Fabrics & Textiles
- Fabrics
- Textile materials
- Felt
- Floor covering materials
Other Materials
- Wood
- Paper
- Rubber
- Metals
- Plywood
- Other industrial substrates
The older 9773WL technical documentation specifically identifies metal, plastics, paper, rubber, textile, felt and plywood among suitable materials.
Industries
- General manufacturing
- Industrial assembly
- Automotive
- Appliances
- Electronics
- Furniture
- Flooring
- Textile
- Gasket manufacturing
- Foam converting
- Signage and graphics
- Consumer products
Why Choose 3M™ Adhesive Transfer Tape 9773WL?
The key advantage of 3M™ 9773WL+ is its combination of high-tack 300MP+ acrylic adhesive and carrierless construction.
Unlike a conventional double-coated tape with a PET, tissue or foam carrier, an adhesive transfer tape consists primarily of adhesive on a release liner. This allows the adhesive to conform closely to irregular and textured surfaces.
The 300MP+ adhesive is particularly useful for manufacturers working with foam, fabrics, plastics, wood and gasket materials, while its ability to flow into surface irregularities without heat can improve contact on challenging substrates.
For converters, the 96 lb polycoated kraft liner also provides a practical construction for slitting, laminating and precision die-cutting.
Installation Guide
1. Prepare the Surface
Clean the bonding surfaces and remove dust, oil, grease, moisture and other contaminants.
2. Cut the Tape
Cut 9773WL+ to the required dimensions or use a precision die-cut adhesive component.
3. Apply to the First Substrate
Remove the release liner and carefully apply the exposed adhesive to the first substrate.
4. Apply Pressure
Apply firm and uniform pressure across the bonding area. Adequate pressure helps maximize adhesive contact.
5. Remove the Liner
Remove the remaining release liner carefully to expose the second adhesive surface.
6. Position the Second Substrate
Align the mating material accurately before applying it to the adhesive.
7. Apply Pressure
Press the complete assembly firmly and evenly.
8. Allow Bond Development
The adhesive develops increasing bond strength with time. 3M indicates that full adhesion develops within approximately 48–72 hours under appropriate conditions.
Storage
Store 3M™ Adhesive Transfer Tape 9773WL+ in its original packaging in a clean, dry environment.
Recommended practices:
- Keep the product in its original packaging
- Protect from direct sunlight
- Avoid excessive heat and humidity
- Keep away from dust and contamination
- Avoid unnecessary exposure of the adhesive to moisture and chemicals
- Follow the latest 3M documentation for applicable shelf-life requirements
3M’s current product information lists a 24-month shelf life for the applicable product configuration.
FAQ
What is 3M™ Adhesive Transfer Tape 9773WL?
3M™ 9773WL+ is a carrierless adhesive transfer tape using 3M™ Adhesive 300MP+ acrylic adhesive. It is designed for bonding foams, plastics, wood, fabrics and other substrates.
Is 9773WL a double-sided tape?
It provides adhesive bonding on both sides of the liner, but technically it is an adhesive transfer tape, not a carrier-based double-coated tape.
What adhesive does 9773WL use?
The current 9773WL+ uses 3M™ Adhesive 300MP+, a high-tack acrylic pressure-sensitive adhesive.
Does 9773WL have a carrier?
No. It is a carrierless adhesive transfer tape. The adhesive is coated directly onto the release liner.
How thick is 3M™ 9773WL+?
The adhesive thickness is 3 mil (0.076 mm), excluding the liner.
Can 9773WL bond foam?
Yes. Foam bonding and gasket fabrication are important applications for this product.
Can 9773WL bond fabric and textiles?
Yes. 3M specifically identifies fabric and textile bonding, including floor covering lamination, as applications.
Can 9773WL bond polypropylene?
Yes. 3M’s published performance data includes adhesion to polypropylene (PP).
Is 9773WL suitable for rough surfaces?
Yes. Its carrierless adhesive construction and adhesive flow characteristics make it suitable for textured and rough surfaces.
Can 9773WL be die-cut?
Yes. The 96 lb polycoated kraft liner is suitable for converting and die-cutting processes.
What is the difference between 9773WL and 9773WL+?
The current 3M product is 9773WL+, using 3M™ Adhesive 300MP+. Older technical documents refer to 9773WL with 300MP adhesive. For new product listings, the current 9773WL+ designation should be used while retaining “9773WL” as a searchable legacy/common model term.
Downloads
Available upon request:
- 3M™ 9773WL Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
