Benefits
Thin-Profile Bonding
The 100 μm adhesive thickness helps support compact electronic product designs where assembly space is limited.
Impact and Vibration Management
The tape is engineered to provide impact resistance and vibration damping, which may help support bonding applications exposed to mechanical shock or vibration.
Final drop-test performance depends on the complete assembly design and must be validated through application-specific testing.
Reliable Adhesive Contact
The modified acrylic adhesive provides high bonding strength and peel adhesion on selected substrates. Actual adhesion depends on the substrate, surface preparation, pressure, dwell time, and environmental conditions.
Conformability
The adhesive is designed to conform to selected curved or irregular surfaces, helping support bonding applications with non-flat geometries.
Converting Stability
The double-liner construction provides stability during selected converting processes, including precision die cutting and kiss cutting.
Technical Specifications
The following information is based on typical data published by 3M. These values are representative only and should not be used as product specifications.
| Property | Typical Value |
|---|---|

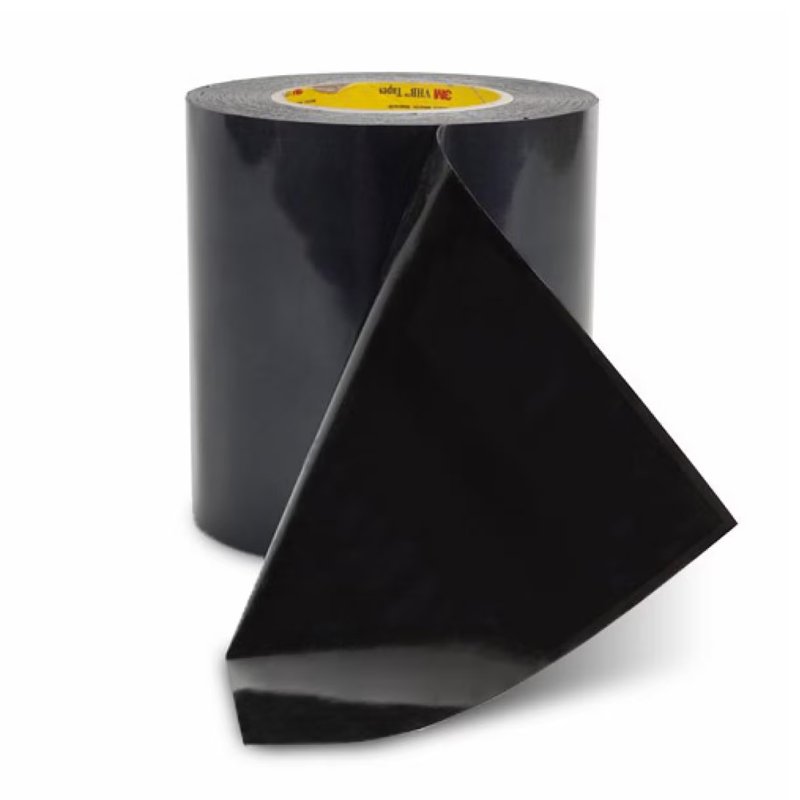

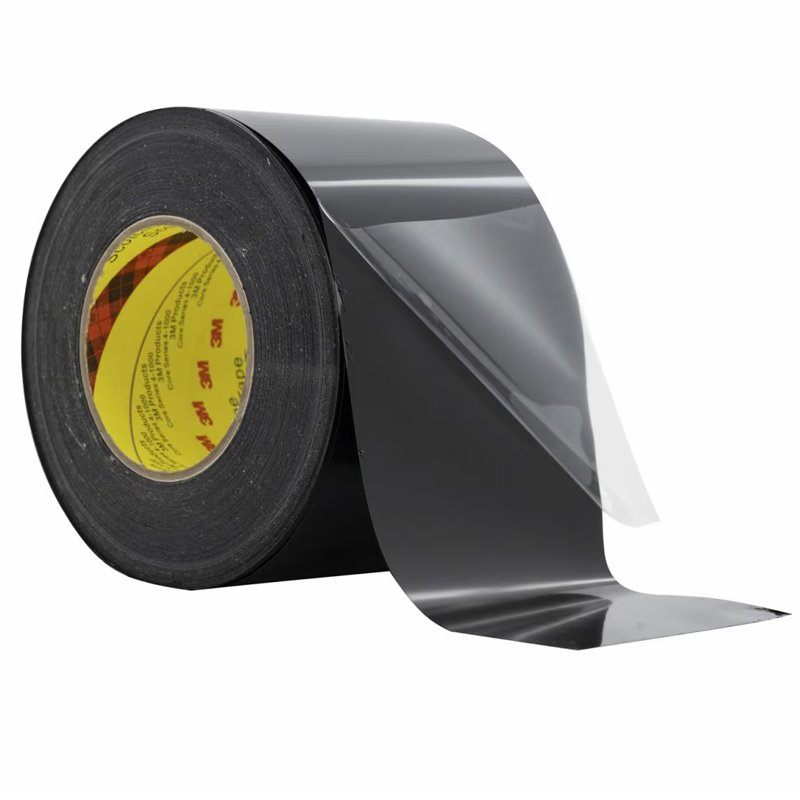

| Product Name | 3M™ Impact Resistant Adhesive Transfer Tape 95010 |
| Adhesive Type | Black modified acrylic pressure-sensitive adhesive |
| Adhesive Thickness | 0.10 mm / 100 μm / 4 mil |
| Tape Construction | Adhesive transfer tape with double-liner construction |
| Liner Construction | Refer to the latest 3M technical data sheet |
| Peel Adhesion to Stainless Steel | 7 N/cm after 20 minutes |
| Peel Adhesion to Polycarbonate | 9.5 N/cm after 72 hours |
| Peel Adhesion to Stainless Steel | 10.5 N/cm after 72 hours |
| Standard Length | 100 m |
| Maximum Width | 570 mm |
| Standard Product Format | 570 mm × 100 m |
| Main Characteristics | Impact resistance, vibration damping, conformability and removability |
Technical Data Disclaimer
Peel adhesion results may vary depending on the substrate, backing material, test method, dwell time, and environmental conditions.
Customers should consult the latest official 3M technical data sheet and conduct application-specific testing before production.
Applications
3M™ 95010 may be evaluated for the following applications:
Electronic Component Bonding
- Electronic component attachment
- Internal component fixation
- Electronic module assembly
- Selected housing and frame bonding
- Compact device assembly
Consumer Electronics
- Portable electronic devices
- Internal electronic components
- Display-related components
- Battery-related bonding applications
- Speaker and camera-related components
- Other selected electronic assemblies
The suitability of the tape depends on the component structure, bonding area, substrate, and required performance.
Impact-Resistant Applications
The tape can be evaluated for applications where bonded components may experience mechanical shock or drop-test conditions.
The tape should not be considered a guarantee that a finished electronic product will pass a specific drop test.
Curved Surface Bonding
The conformable adhesive may support bonding on selected curved or irregular surfaces.
Testing is recommended to verify:
- Contact area
- Adhesive stress
- Surface condition
- Bonding strength
- Long-term performance
Precision Die-Cut Adhesive Components
The double-liner construction may support the production of custom adhesive parts, such as:
- Adhesive pads
- Component attachment shapes
- Small bonding parts
- Custom kiss-cut pieces
- Electronic assembly components
Compatible Materials
3M™ 95010 may be evaluated on selected materials used in electronic and industrial assembly.
Potential substrates include:
- Polycarbonate (PC)
- Selected plastic materials
- Metal components
- Electronic housing materials
- Coated or painted surfaces
- Film and sheet materials
- Other engineered substrates
Substrate Compatibility Considerations
Actual compatibility should be confirmed through testing, particularly for:
- Low-surface-energy plastics
- Textured surfaces
- Coated materials
- Painted surfaces
- Materials containing additives or release agents
- Surfaces exposed to contamination
The following factors may affect bonding performance:
- Surface energy
- Surface cleanliness
- Surface roughness
- Coating type
- Bonding pressure
- Dwell time
- Temperature
- Environmental exposure
Industries
3M™ 95010 may be considered for selected applications in the following industries:
- Consumer electronics
- Electronic component manufacturing
- Mobile device assembly
- Electrical and electronic equipment
- Precision component assembly
- Industrial electronics
- Electronic packaging
- OEM product manufacturing
The actual suitability of 3M™ 95010 should be verified according to the customer’s product design and technical requirements.
Why Choose Yousan?
Yousan provides adhesive tape converting and precision die-cutting services for industrial and electronic applications.
Our potential converting services include:
- Custom-width slitting
- Precision die cutting
- Kiss cutting
- Laminating
- Custom adhesive component production
- OEM and ODM converting
- Application-based converting evaluation
Custom Die-Cut 3M™ 95010 Tape
Custom die-cut adhesive components can help support consistent assembly processes and reduce manual handling.
For a converting evaluation, customers may provide:
- Product drawings or CAD files
- Part dimensions
- Dimensional tolerances
- Adhesive thickness requirements
- Bonding substrate information
- Required quantity
- Packaging requirements
- Assembly process details
Converting feasibility depends on the tape construction, part geometry, tolerance requirements, and production volume.
Installation Guide
The following recommendations are general application guidelines. The final bonding process should be validated according to the actual application.
Step 1: Prepare the Surface
Clean and dry the bonding surfaces. Remove dust, oil, grease, release agents, and other contaminants that may reduce adhesion.
Step 2: Check Substrate Compatibility
Evaluate the adhesive on the actual bonding materials. Special attention should be given to coated surfaces, low-surface-energy plastics, and textured substrates.
Step 3: Apply the Tape
Remove the release liner carefully. Avoid touching or contaminating the adhesive surface.
Step 4: Position the Tape
Align the tape accurately with the bonding area. Avoid wrinkles, air bubbles, and incomplete contact.
Step 5: Apply Uniform Pressure
Apply suitable and uniform pressure to promote contact between the adhesive and substrate.
Step 6: Allow Bond Development
Allow sufficient time for the adhesive bond to develop. Required dwell time depends on the substrate and application conditions.
Step 7: Validate Performance
Before mass production, evaluate:
- Peel adhesion
- Shear performance
- Impact resistance
- Drop-test performance
- Environmental durability
- Rework and removability requirements
Storage
Store the tape in its original packaging and protect it from:
- Direct sunlight
- Excessive heat
- Moisture
- Dust and contamination
- Extreme temperature fluctuations
Specific storage temperature, relative humidity, shelf life, and handling requirements should be confirmed using the latest applicable 3M documentation.
Storage conditions and duration may affect adhesive performance.
FAQ
1. What is 3M™ 95010 tape used for?
3M™ 95010 is designed for selected electronic bonding applications requiring impact resistance, vibration damping, high bonding strength, and a relatively thin adhesive profile.
2. How thick is 3M™ 95010?
The adhesive thickness is approximately 100 μm (4 mil), excluding the release liners.
3. What is the difference between 3M™ 95005 and 95010?
The main difference is adhesive thickness:
- 3M™ 95005: 50 μm (2 mil)
- 3M™ 95010: 100 μm (4 mil)
Both products are designed for impact-resistant electronic bonding applications. The appropriate product should be selected based on the application design and testing requirements.
4. Is 3M™ 95010 suitable for electronic components?
It is designed for selected electronic bonding applications. Compatibility and performance must be evaluated using the actual component materials and assembly conditions.
5. Can 3M™ 95010 be die-cut?
Yes, its double-liner construction provides stability for selected die-cutting and converting processes. Actual feasibility depends on the part design, material format, and dimensional tolerances.
6. Is 3M™ 95010 suitable for curved surfaces?
The adhesive provides good conformability and may be evaluated for selected curved or irregular surfaces. Testing is required to confirm the bonding performance.
7. Is 3M™ 95010 waterproof?
Waterproof performance should not be assumed without supporting technical documentation and application-specific testing.
8. Is 3M™ 95010 a high-temperature tape?
3M™ 95010 should not be marketed as a dedicated high-temperature tape without supporting technical data. Customers should confirm the required temperature range and conduct validation testing.
9. Does 3M™ 95010 guarantee drop-test performance?
No. Drop-test performance depends on the complete product structure, component weight, bonding area, and mechanical design. The finished assembly must be tested under the required conditions.
10. Is 3M™ 95010 available worldwide?
The official 3M product information indicates that this product is available in Asia. Availability should be confirmed for the intended purchasing market.
Downloads
Available upon request:
- 3M™ 95010 Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
