Benefits
Impact Resistance
Designed to help electronic assemblies withstand impact and drop-test requirements when properly selected and validated.
Vibration Damping
The adhesive construction can help reduce the effects of vibration in selected electronic component bonding applications.
Thin Bonding Profile
The 50 μm adhesive thickness supports compact designs where limited bonding thickness is required.
Reliable Adhesion
The modified acrylic adhesive provides high bonding strength and peel adhesion on suitable substrates.
Conformability
The adhesive can conform to curved or irregular surfaces, depending on the substrate and application conditions.
Die-Cutting Stability
The double-liner construction provides stability during converting and precision die-cutting processes.
Technical Specifications
| Property | Specification |
|---|---|

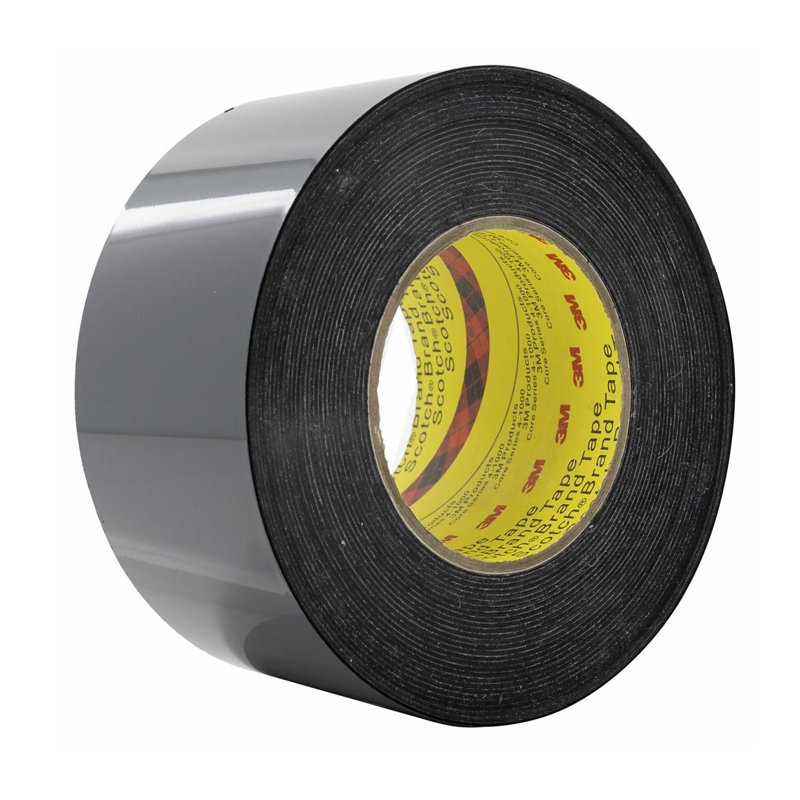

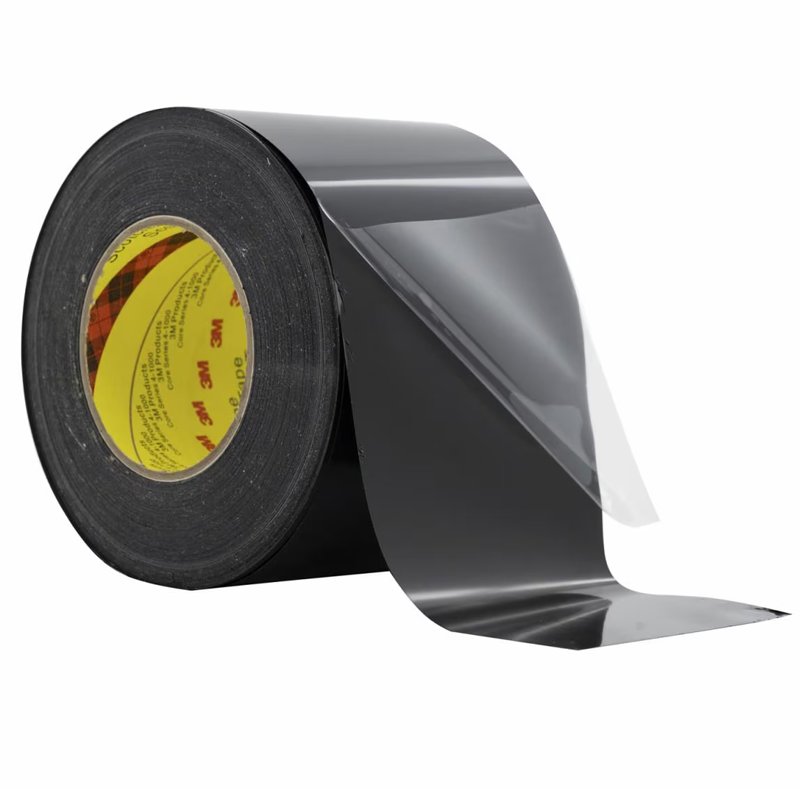

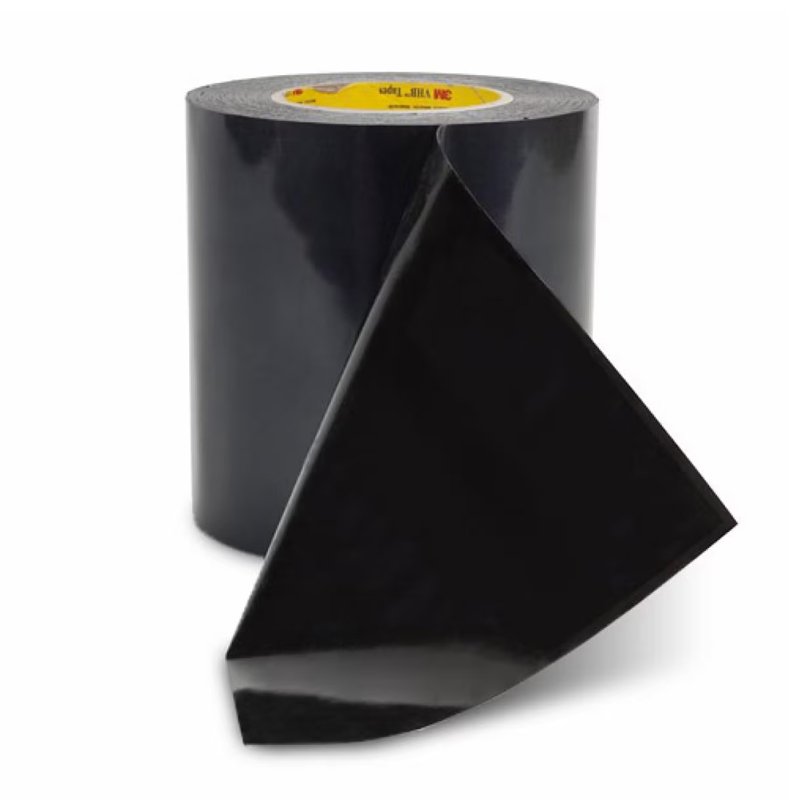

| Product Name | 3M™ Adhesive Transfer Tape 95005 |
| Product Type | Impact-resistant adhesive transfer tape |
| Adhesive Type | Modified acrylic |
| Adhesive Color | Black |
| Adhesive Thickness | 0.05 mm / 50 μm / 2 mil |
| Backing | Adhesive transfer construction |
| Primary Liner | Clear PET |
| Secondary Liner | Clear PET |
| Primary Liner Thickness | 0.05 mm / 1.97 mil |
| Secondary Liner Thickness | 0.03 mm / 1.18 mil |
| Standard Length | 100 m |
| Maximum Width | 590 mm |
| Core Inner Diameter | 76.2 mm / 3 in |
| Peel Adhesion to Stainless Steel, 20 min | 5.5 N/cm |
| Peel Adhesion to Polycarbonate, 72 h | 9.5 N/cm |
| Peel Adhesion to Stainless Steel, 72 h | 10 N/cm |
The listed values are typical or representative data and should not be used as product specifications. The latest official 3M technical data sheet should be consulted for final product qualification.
Applications
3M™ 95005 is designed for bonding a range of electronic components, including:
- Display bonding
- Battery component bonding
- Speaker assembly
- Keyboard assembly
- Trackpad bonding
- Camera lens component bonding
- Antenna bonding
- Flexible printed circuit (FPC) bonding
- Electronic component fixation
- Thin-profile electronic assembly
- Applications requiring impact resistance
- Applications requiring vibration damping
Actual suitability depends on the component structure, substrate type, bonding area, environmental exposure, and required mechanical performance.
Compatible Materials
3M™ 95005 may be evaluated for bonding:
- Polycarbonate (PC)
- Metal components
- Coated metal surfaces
- Electronic component housings
- Plastic components
- Display-related materials
- Flexible printed circuit materials
- Other suitable electronic assembly substrates
Substrate compatibility depends on surface energy, cleanliness, surface treatment, coating, texture, and application conditions. Testing with the actual materials is recommended before mass production.
Industries
Potential industries and application sectors include:
- Consumer electronics
- Mobile device manufacturing
- Display manufacturing
- Computer and tablet manufacturing
- Wearable electronics
- Electronic component assembly
- Automotive electronics
- Smart devices
- Communication equipment
- Precision electronic manufacturing
The product should be qualified for the specific application and relevant reliability requirements.
Why Choose 3M™ 95005?
- Impact-Resistant Design: Developed for electronic bonding applications requiring improved impact resistance.
- Thin Adhesive Construction: 50 μm adhesive thickness supports compact electronic designs.
- Vibration Damping: Suitable for applications where vibration performance is an important consideration.
- Modified Acrylic Adhesive: Provides a combination of adhesion, conformability, and removability.
- Double-Liner Construction: Supports material handling and precision die-cutting.
- Electronic Assembly Applications: Designed for bonding a variety of electronic components.
- Custom Converting Support: Yousan can evaluate slitting, laminating, kiss-cutting, and custom die-cutting based on customer drawings and specifications.
Yousan provides adhesive tape converting and precision die-cutting solutions. Product authenticity, material specifications, and application suitability should be confirmed before production.
Installation Guide
1. Prepare the Bonding Surface
Ensure that the bonding surface is clean, dry, and free from dust, oil, grease, and other contaminants.
2. Check Material Compatibility
Test the tape on the actual substrate, especially when bonding coated plastics, electronic components, or low-surface-energy materials.
3. Apply the Tape
Apply the adhesive transfer tape evenly to the first surface. Avoid wrinkles, air bubbles, and unnecessary stretching.
4. Apply Uniform Pressure
Use appropriate pressure to promote intimate contact between the adhesive and substrate.
5. Remove the Second Liner
Carefully remove the remaining liner without contaminating or touching the exposed adhesive surface.
6. Bond the Second Component
Align the component accurately and apply uniform pressure across the bonding area.
7. Validate the Assembly
Confirm adhesion, impact resistance, vibration performance, dimensional stability, and removability according to the application requirements.
The actual application process should be validated according to the component design, bonding area, production method, and reliability testing requirements.
Storage
- Store the tape in its original packaging.
- Keep the material in a clean and dry environment.
- Protect it from direct sunlight, moisture, and contamination.
- Avoid damaging the roll edges and liner surfaces.
- Follow the storage conditions and shelf-life recommendations in the latest official 3M documentation.
- Inspect the material before use, particularly after extended storage.
Specific storage temperature, humidity, and shelf-life requirements should be confirmed using the applicable 3M product documentation.
FAQ
1. What is 3M™ Adhesive Transfer Tape 95005?
3M™ 95005 is a black, impact-resistant adhesive transfer tape with a modified acrylic adhesive, designed primarily for electronic component bonding.
2. What is the thickness of 3M™ 95005?
The adhesive thickness is approximately 50 μm (2 mil).
3. Is 3M™ 95005 black or transparent?
3M™ 95005 features a black modified acrylic adhesive.
4. Is 3M™ 95005 suitable for electronic components?
Yes. It is designed for applications including display, battery, speaker, keyboard, trackpad, camera lens, antenna, and FPC bonding.
5. Does 3M™ 95005 provide impact resistance?
Yes. The product is designed for impact resistance and can help support electronic assembly drop-test requirements when properly selected and validated.
6. Is 3M™ 95005 suitable for vibration damping?
The product is designed to provide vibration damping in suitable bonding applications. Actual performance depends on the assembly design and test conditions.
7. Can 3M™ 95005 be die-cut?
Yes. Its double-liner construction provides stability for die-cutting and converting processes. The die-cutting method should be validated according to the design and tolerance requirements.
8. Is 3M™ 95005 the same as 3M™ 9505?
No. 3M™ 95005 and 3M™ 9505 are different products. 95005 is a black impact-resistant adhesive transfer tape, while 9505 is a separate adhesive transfer tape product using 3M™ Industrial Acrylic Adhesive 220.
9. Can Yousan provide custom die-cut 3M™ 95005?
Yousan can evaluate custom slitting, laminating, kiss-cutting, and precision die-cutting requirements based on customer drawings, dimensions, tolerances, and material availability.
10. Is 3M™ 95005 suitable for outdoor applications?
The available product information focuses on electronic component bonding and impact resistance. Outdoor suitability must be confirmed through application-specific testing and the latest technical documentation.
Downloads
Available upon request:
- 3M™ 95005 Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
