When manufacturers need a reliable double-sided foam tape for mounting, joining, cushioning, and holding applications, 3M™ Double Coated Urethane Foam Tape 4016 is a well-established industrial solution.
With a 1.6 mm open-cell urethane foam carrier, 3M™ Adhesive 100 acrylic pressure-sensitive adhesive, and high shear holding capability, 3M 4016 is designed for applications where conformability, durable bonding, and vibration damping are important.
Unlike 3M™ VHB™ tapes, 4016 belongs to the 3M Double Coated Urethane Foam Tape family and is primarily positioned for interior applications or exterior applications where the tape is protected from direct environmental exposure.

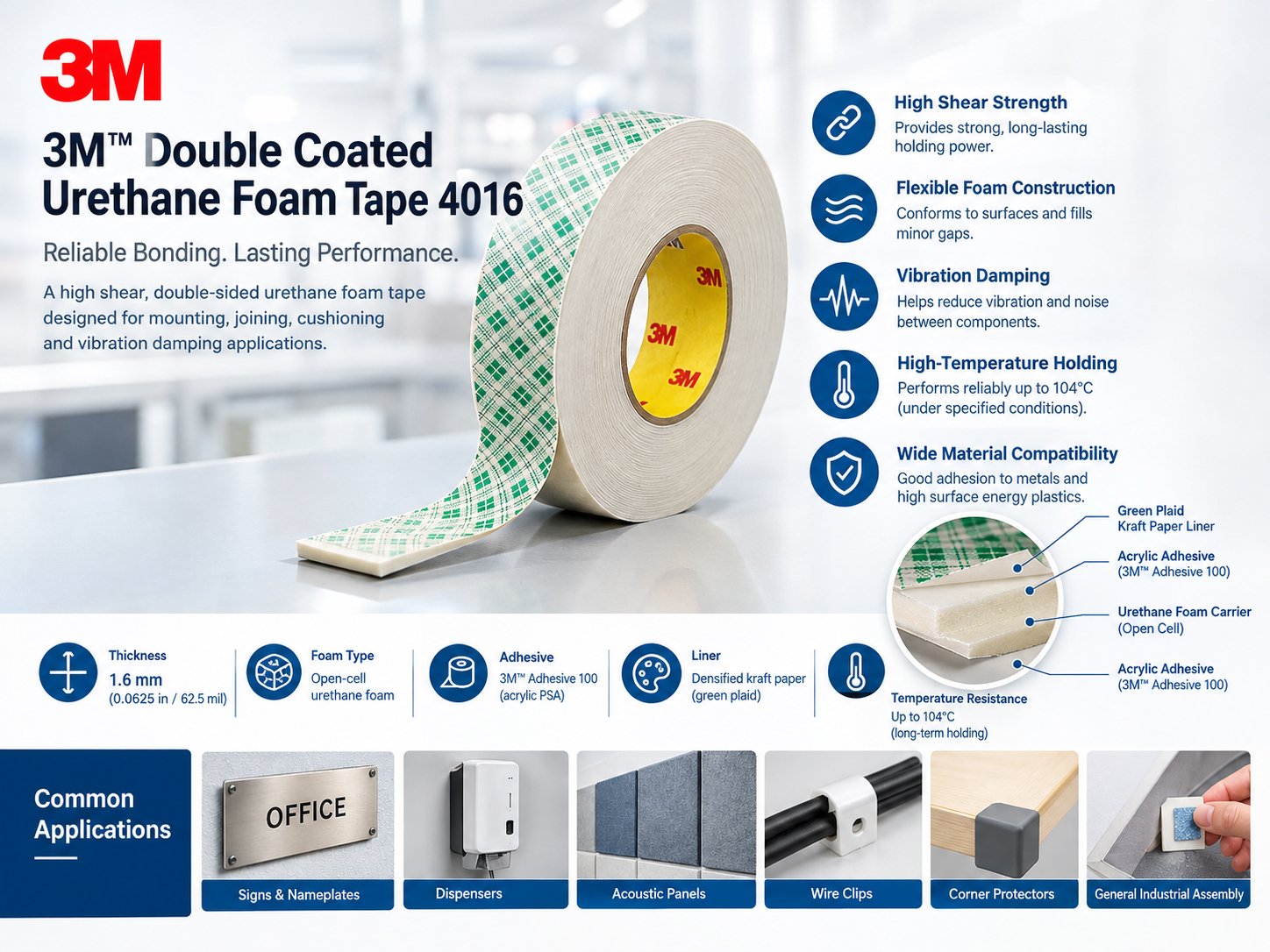

What Is 3M™ Double Coated Urethane Foam Tape 4016?
3M™ Double Coated Urethane Foam Tape 4016 is a double-sided polyurethane foam tape with adhesive coated on both sides of an open-cell urethane foam carrier.
The nominal tape thickness is 1.6 mm (0.0625 in / 62.5 mil), and the foam density is approximately 175 kg/m³. The standard construction uses a green plaid densified kraft paper liner.
The tape uses 3M™ Adhesive 100, a firm acrylic pressure-sensitive adhesive system designed to provide high ultimate bond strength, high shear holding power, and good temperature and chemical resistance. 3M identifies good adhesion to metals and high surface energy plastics.
This combination makes 3M 4016 suitable for mounting and joining applications where a conventional rigid adhesive or mechanical fastener may not provide the desired combination of bonding, cushioning, and vibration damping.
Key Features of 3M 4016
The main features of 3M™ Double Coated Urethane Foam Tape 4016 include:
- 1.6 mm nominal thickness
- Open-cell flexible urethane foam carrier
- Double-sided acrylic adhesive
- 3M™ Adhesive 100
- High shear holding strength
- Good conformability
- Vibration damping capability
- High-temperature holding capability
- Natural/off-white foam appearance
- Green plaid densified kraft paper liner
- Good adhesion to metal and high surface energy plastics
- Suitable for die-cutting and converting
- Suitable for manual and automated dispensing applications
The open-cell foam construction allows the tape to conform to minor surface irregularities while providing a cushioning layer between bonded components.
Why Choose 3M 4016 for Industrial Mounting?
1. High Shear Holding Power
One of the major advantages of 3M 4016 is its shear performance.
According to the 3M technical data sheet, typical static shear performance on aluminum is:
| Test Temperature | Static Shear |
|---|---|
| 23°C | 1,500 g |
| 49°C | 1,000 g |
| 66°C | 750 g |
| 93°C | 750 g |
These values are typical test results rather than specification limits and should not be used as guaranteed performance for a specific application.
2. Flexible Foam Construction
The urethane foam carrier is flexible and conformable. This allows 4016 to maintain contact across surfaces that may have minor irregularities.
For applications involving uneven components, curved surfaces, or slight gaps, the foam carrier can provide advantages over thin film-based double-sided tapes.
3. Vibration Damping
The foam layer provides cushioning and can help dampen vibration between assembled components.
This makes 4016 useful for applications where the bonded components may experience vibration or movement during operation. 3M specifically highlights vibration damping as one of the product’s advantages.
4. High-Temperature Holding
3M identifies long-term holding capability up to 104°C (220°F) under the specified conditions.
This makes 4016 more suitable than many general-purpose mounting tapes for applications exposed to moderately elevated temperatures.
However, it should not automatically be treated as a high-temperature structural tape. Actual temperature performance depends on the substrate, load, bond area, exposure time, and application design.
3M 4016 Technical Specifications
The following values are representative technical data from 3M documentation:
| Property | 3M 4016 Typical Value |
|---|---|
| Product | 3M™ 4016 Double Coated Urethane Foam Tape |
| Tape Type | Double-sided urethane foam tape |
| Carrier | Polyurethane foam |
| Foam Structure | Open cell |
| Adhesive | 3M™ Adhesive 100 |
| Adhesive Type | Acrylic PSA |
| Color | Natural / Off-white |
| Nominal Thickness | 1.6 mm |
| Thickness | 0.0625 in / 62.5 mil |
| Foam Density | 175 kg/m³ |
| Liner | Densified kraft paper |
| Liner Color | Green Plaid |
| Liner Thickness | 0.08 mm |
| Normal Tensile | 345 kPa |
| Static Shear at 23°C | 1,500 g |
| Static Shear at 49°C | 1,000 g |
| Static Shear at 66°C | 750 g |
| Static Shear at 93°C | 750 g |
| Long-Term Temperature Holding | Up to 104°C |
| Short-Term Temperature | Refer to applicable 3M documentation |
3M states that the technical values are representative or typical and should not be used as specification limits.
What Materials Can 3M 4016 Bond?
3M™ Double Coated Urethane Foam Tape 4016 provides good adhesion to metal and high surface energy plastics.
Typical substrates that may be considered include:
- Aluminum
- Steel
- Stainless steel
- High surface energy plastics
- Rigid plastic components
- Certain painted surfaces
- Signage materials
- Nameplate substrates
- Interior wall materials
- Industrial components
Some 3M product information also identifies soft PVC as a suitable material.
For low surface energy plastics, textured materials, powder-coated surfaces, contaminated substrates, or other difficult surfaces, application testing is recommended.
Common Applications for 3M 4016
3M positions 4016 primarily for interior mounting and protected applications.
Common applications include:
Interior Signs and Nameplates
3M 4016 can be used to attach interior signs, nameplates, labels, and identification components.
Dispensers
The tape can be used for mounting soap dispensers, air fresheners, and similar interior equipment.
Acoustic Panels
The foam construction provides cushioning and can be used to attach acoustic panels to walls in suitable applications.
Wire Clips
4016 can be used to attach wire clips and cable management components to appropriate surfaces.
Corner Protectors
The tape can be used for mounting corner protection components where suitable.
General Industrial Assembly
Manufacturers can use 4016 for joining, mounting, attaching, and holding components where a flexible double-sided foam tape is appropriate.
3M 4016 vs. 3M VHB™ Tape
One common mistake when researching 3M 4016 is treating it as a VHB tape.
3M 4016 is not a 3M™ VHB™ Tape.
3M 4016 is a double-coated urethane foam tape with an open-cell polyurethane foam carrier. It is designed primarily for mounting and holding applications, particularly interior applications or applications protected from environmental exposure.
By contrast, 3M VHB products generally use acrylic foam constructions designed for different high-strength bonding requirements.
Therefore, product selection should be based on:
- Required bond strength
- Shear load
- Peel load
- Temperature
- Environmental exposure
- Substrate
- Required durability
- Foam thickness
- Joint design
For applications requiring outdoor weather resistance or structural bonding, a suitable VHB or other specialty tape should be evaluated instead.
How to Apply 3M 4016 Correctly
Proper surface preparation is critical for achieving reliable adhesive performance.
Step 1: Clean the Surface
Bonding surfaces should be clean, dry, and well unified.
3M identifies isopropyl alcohol/water or heptane as typical cleaning solvents, depending on the substrate and contamination. Always follow the solvent manufacturer’s safety instructions.
Step 2: Prepare the Tape
Cut the required length or die-cut shape.
Avoid touching the exposed adhesive surface after removing the liner.
Step 3: Apply the Tape
Apply the tape to the first substrate and press firmly across the entire tape area.
Firm pressure improves adhesive-to-surface contact and helps develop bond strength.
Step 4: Remove the Liner
Remove the green plaid kraft paper liner immediately before joining the second substrate.
Step 5: Assemble the Components
Align the components carefully and bring the second surface into contact with the exposed adhesive.
Step 6: Apply Firm Pressure
Apply sufficient, uniform pressure over the bonded area.
The actual required pressure depends on the substrate and assembly design.
Step 7: Allow Bond Development
The adhesive continues to build strength after application. For demanding applications, allow sufficient dwell time before applying the full service load.
3M reports a typical 72-hour dwell time for certain performance testing.
Recommended Application Temperature
For optimum tape application, 3M recommends an application temperature range of approximately:
21°C to 38°C (70°F to 100°F).
Application to surfaces below 10°C (50°F) is not recommended because the adhesive can become too firm to readily adhere. Once properly applied, low-temperature holding performance is generally satisfactory.
For production environments outside this range, application trials should be conducted before mass production.
Storage and Shelf Life
For best performance, store 3M 4016:
- In the original packaging
- Away from direct sunlight
- In a clean and dry environment
- At approximately 16°C–27°C (60°F–80°F)
- At approximately 40–60% relative humidity
3M recommends using the product within 24 months from the date of manufacture for best performance.
Frequently Asked Questions About 3M 4016
Is 3M 4016 double-sided?
Yes. 3M 4016 is a double-coated urethane foam tape with acrylic adhesive on both sides.
What is the thickness of 3M 4016?
The nominal thickness is 1.6 mm (0.0625 inch / 62.5 mil).
What type of foam is used in 3M 4016?
The carrier is open-cell polyurethane/urethane foam.
What adhesive does 3M 4016 use?
It uses 3M™ Adhesive 100, a firm acrylic pressure-sensitive adhesive system.
Is 3M 4016 a VHB tape?
No. 3M 4016 is a Double Coated Urethane Foam Tape, not a 3M VHB product.
Is 3M 4016 suitable for outdoor use?
It can be considered for exterior applications where the tape is protected from direct environmental exposure. It should not be presented as a general-purpose outdoor weatherproof tape.
Can 3M 4016 bond metal?
Yes. 3M identifies good adhesion to metals and high surface energy plastics.
Can 3M 4016 bond plastic?
Yes, particularly high surface energy plastics. Certain other plastics may require testing or additional surface preparation.
Does 3M 4016 dampen vibration?
Yes. The urethane foam construction can provide cushioning and vibration damping.
Can 3M 4016 be die-cut?
Yes. The product’s liner construction supports industrial converting operations such as die-cutting and automated dispensing.
3M 4016 for Industrial Tape Converting
For manufacturers and converters, 3M 4016 can be supplied in different widths and converted into custom shapes depending on the required application.
Potential converting solutions include:
- Slitting
- Narrow-width rolls
- Custom roll lengths
- Die-cut parts
- Kiss-cut components
- Custom mounting pieces
- Automated dispensing formats
This makes 3M 4016 suitable not only for direct manual application but also for OEM assembly and industrial converting programs.
For custom die-cut requirements, the required component dimensions, substrate, bond area, application temperature, load, and expected service environment should be provided for evaluation.
3M 4016 for B2B Industrial Applications
For purchasing teams, engineers, and OEM manufacturers, selecting the correct foam tape requires more than simply matching thickness.
Important selection factors include:
- Substrate
- Required adhesive strength
- Shear load
- Peel load
- Operating temperature
- Environmental exposure
- Foam thickness
- Required cushioning
- Bond area
- Application method
For example, a 1.6 mm urethane foam tape may be appropriate for interior mounting but may not be the correct solution for a continuously exposed outdoor structural assembly.
Application testing is therefore recommended before final material approval.
Conclusion
3M™ Double Coated Urethane Foam Tape 4016 is a 1.6 mm open-cell urethane foam tape designed for high-shear mounting, joining, holding, cushioning, and vibration-damping applications.
Its combination of a flexible foam carrier and 3M™ Adhesive 100 provides good adhesion to metals and high surface energy plastics, high shear holding capability, and long-term holding at temperatures up to 104°C under specified conditions.
