Benefits
High Load Securing Capability
The reinforced fiberglass filament structure provides excellent strength for:
- Heavy carton sealing
- Bundling products
- Reinforcing packages
- Securing transportation loads
Compared with standard packaging tapes, filament tape offers significantly higher tensile strength and better resistance against stretching.
Reliable Long-Term Holding
The pressure-sensitive adhesive provides strong initial tack and long-term holding performance, helping prevent:
- Package shifting
- Carton failure
- Product damage during shipping
Damage Resistance
The glass filament reinforcement improves resistance against:
- Pulling forces
- Impact
- Abrasion
- Tearing
Suitable for industrial environments where ordinary packaging tapes may fail.
Technical Specifications
| Property | Specification |
|---|---|
| Product Name | 3M™ 8934 Filament Tape |
| Tape Type | Fiberglass Reinforced Filament Tape |
| Backing Material | Polypropylene Film + Fiberglass Filaments |
| Adhesive Type | Synthetic Rubber Resin |
| Color | Clear |
| Total Thickness | Approx. 0.15 mm |
| Tensile Strength | Approx. 525 N/100 mm |
| Elongation at Break | Approx. 6% |
| Adhesion to Steel | Approx. 4.5 N/cm |
| Reinforcement | Continuous Glass Filament |
| Temperature Resistance | Approx. 60°C |
| Application | Packaging / Bundling / Reinforcement |
Technical values may vary depending on tape width and test conditions.
Applications
Packaging & Logistics
- Heavy-duty carton sealing
- Export packaging
- Pallet reinforcement
- Shipping protection
- Transportation securing

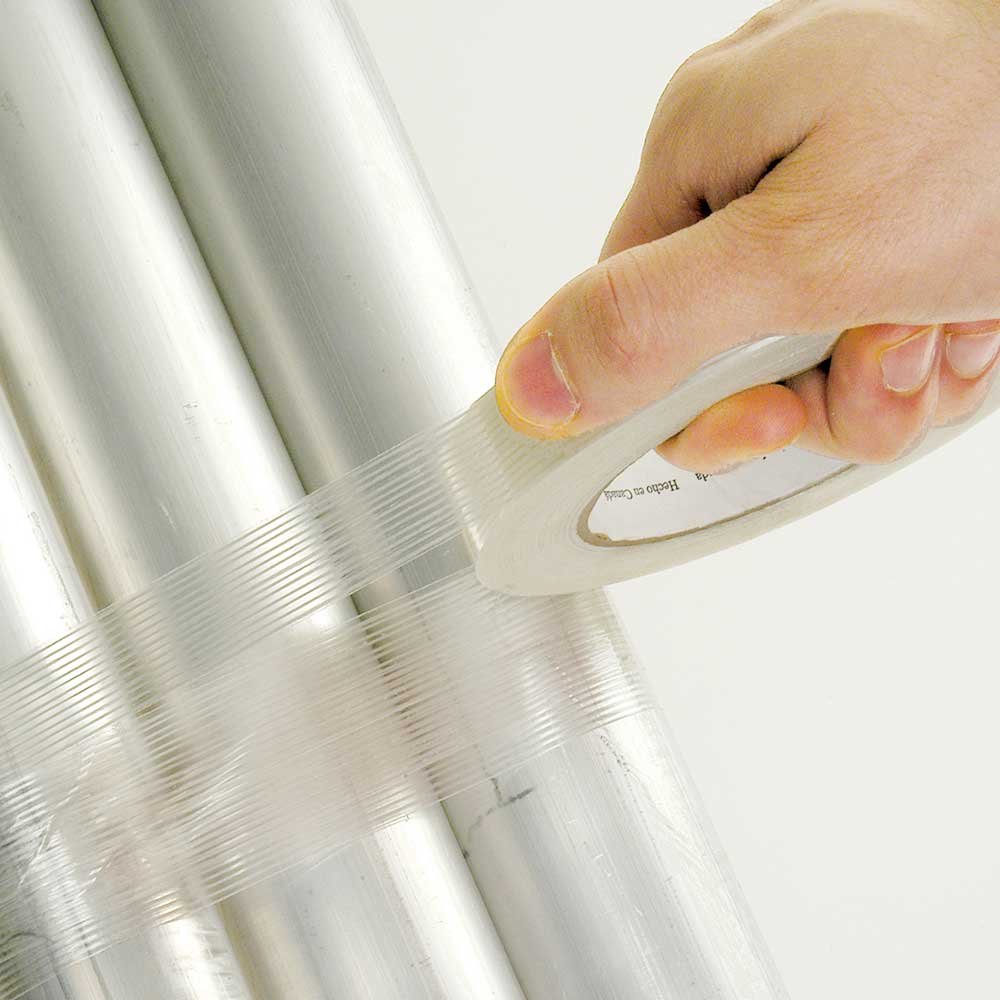

Industrial Bundling
- Metal pipe bundling
- Plastic profile bundling
- Wood and construction material bundling
- Cable bundling
Manufacturing
- Appliance packaging
- Furniture packaging
- Machinery component securing
- Industrial material handling
Compatible Materials
| Material | Application |
|---|---|
| Corrugated Cardboard | Carton reinforcement |
| Kraft Paper | Packaging |
| Metal | Bundling |
| Plastic | Product securing |
| Wood | Construction packaging |
| Glass | Transportation protection |
| Composite Materials | Industrial handling |
Industries
- Logistics & Transportation
- Automotive Parts
- Electronics Manufacturing
- Furniture Manufacturing
- Building Materials
- Appliance Manufacturing
- Industrial Packaging
Why Choose 3M™ 8934 Filament Tape?
Compared with conventional packaging tapes:
✅ Higher tensile strength
✅ Better resistance to tearing
✅ Stronger load securing
✅ Improved transportation safety
✅ Suitable for heavy-duty packaging
✅ Reliable performance in industrial environments
3M™ 8934 is an ideal solution where packaging needs extra reinforcement and mechanical strength.
Installation Guide
- Ensure the application surface is clean and dry.
- Apply tape firmly to the surface.
- Use sufficient pressure to activate the adhesive.
- Avoid excessive stretching during application.
- For heavy loads, apply additional reinforcement layers if required.
- Test packaging performance before shipment.
Storage
Recommended storage conditions:
- Temperature: 15–25°C
- Relative humidity: 40–60% RH
- Keep in original packaging
- Avoid direct sunlight
- Keep away from excessive moisture
- Store rolls vertically or horizontally according to packaging requirements
FAQ
What is 3M™ 8934 used for?
3M™ 8934 is mainly used for heavy-duty packaging, carton reinforcement, bundling, and transportation securing applications.
Is 3M™ 8934 stronger than regular packing tape?
Yes. The fiberglass reinforcement provides much higher tensile strength and resistance to tearing compared with standard BOPP carton sealing tape.
Can 3M™ 8934 be used for palletizing?
Yes. It is suitable for pallet reinforcement and securing products during transportation.
Is 3M™ 8934 waterproof?
The polypropylene backing provides good moisture resistance, but the tape should not be considered a waterproof sealing solution for submerged applications.
Can 3M™ 8934 be customized?
Yes. Guangdong Yousan can provide:
- Custom widths
- Roll conversion
- OEM packaging
- Industrial tape solutions
Downloads
Available upon request:
- 3M™ 8934 Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Custom Converting Solution Guide
Please contact our sales team if you require the latest technical documentation.
