Benefits
OEM-Qualified Performance
Developed specifically for permanent bonding of automotive exterior and interior trim components.
Superior Gap Filling
The 1.2 mm acrylic foam core effectively compensates for uneven surfaces and manufacturing tolerances.
Excellent Stress Relaxation
The viscoelastic foam absorbs vibration, impact, and thermal movement between different materials, reducing stress on bonded joints.
Strong Long-Term Adhesion
Provides excellent initial tack and develops very high final adhesion to automotive paints, metals, plastics, and glass.
Outstanding Outdoor Durability
Resists UV exposure, moisture, road salt, solvents, and temperature cycling throughout the vehicle’s service life.
Improved Manufacturing Efficiency
Eliminates the need for screws, rivets, and clips while simplifying assembly and improving product appearance.
Technical Specifications
| Property | Specification |
|---|---|

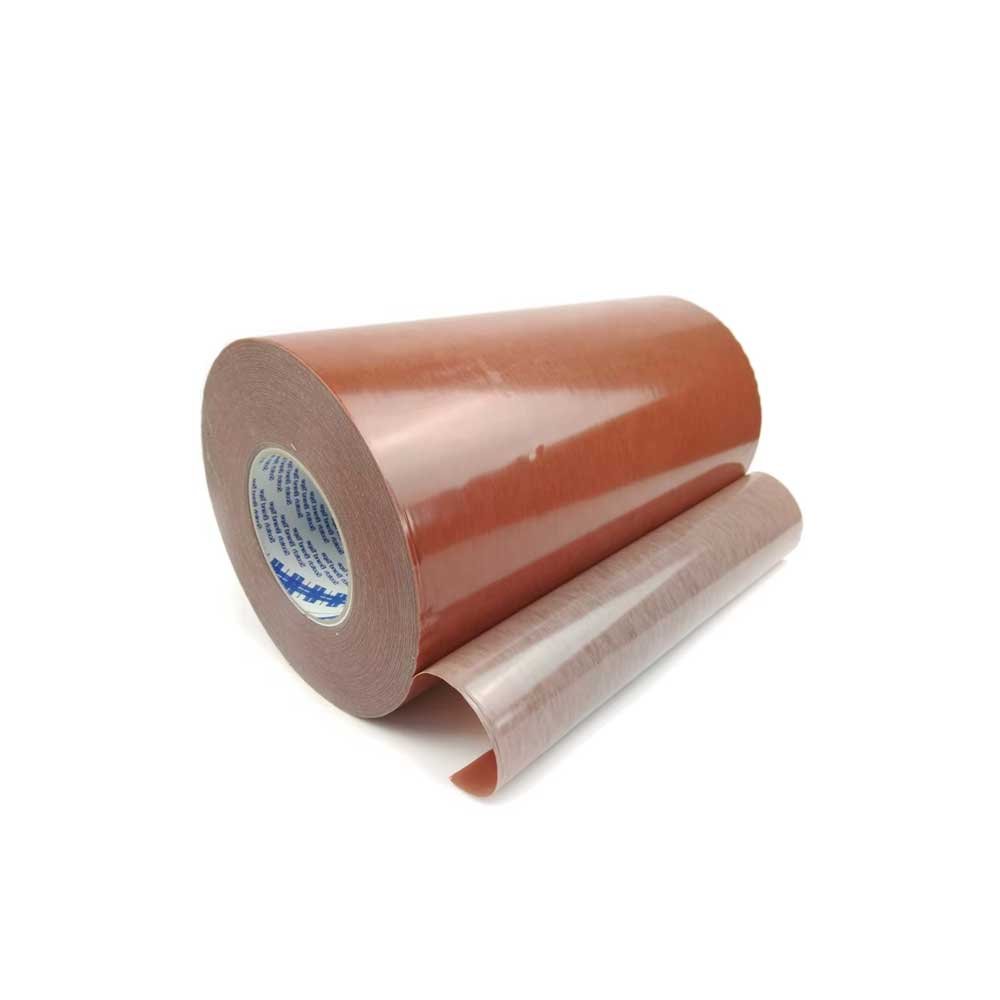

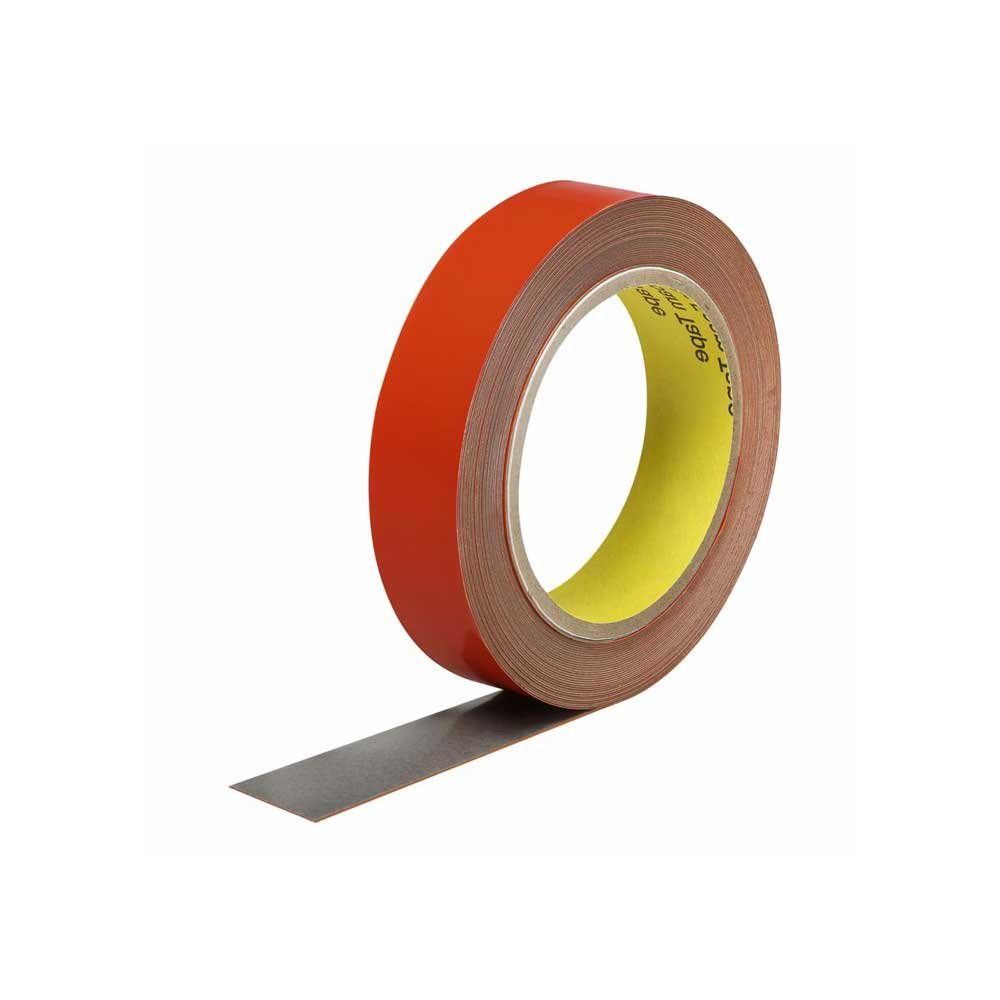

| Product Name | 3M™ GT7112 Acrylic Foam Tape |
| Tape Type | Double-Sided Acrylic Foam Tape |
| Foam Color | Gray |
| Foam Core | Viscoelastic Acrylic Foam |
| Adhesive | Acrylic Pressure-Sensitive Adhesive |
| Thickness | 1.2 mm (0.047 in) |
| Liner | Dark Red Polyethylene Release Liner |
| Temperature Resistance | Excellent |
| UV Resistance | Excellent |
| Weather Resistance | Excellent |
| Solvent Resistance | Excellent |
| Typical Applications | Automotive Exterior & Interior Attachment |
| Converting Services | Slitting, Rewinding, Laminating, Die-Cutting |
Applications
Typical applications include:
- Body side moldings
- Claddings
- Rocker panels
- Wheel arch extensions
- Pillars
- Side mirrors
- Spoilers
- Sill plates
- Step pads
- Sensor brackets
- Automotive decorative trim
- Plastic body components
- Exterior garnish panels
Compatible Materials
| Excellent Compatibility | Good Compatibility | Surface Testing Recommended |
|---|---|---|
| Automotive Paint | ABS | Polypropylene (PP) |
| Painted Steel | Polycarbonate | Polyethylene (PE) |
| Aluminum | PMMA | TPO |
| Stainless Steel | Rigid PVC | Silicone Rubber |
| Glass | Engineering Plastics | PTFE |
Note: Adhesion testing or the use of an adhesion promoter is recommended for PP, PE, TPO, and other low-surface-energy plastics.
Industries
- Automotive OEM
- Automotive Tier 1 Suppliers
- Electric Vehicles (EV)
- Commercial Vehicles
- Transportation Equipment
- Industrial Manufacturing
- Appliance Manufacturing
- Plastic Component Assembly
Why Choose 3M™ GT7112?
- Genuine 3M automotive acrylic foam technology
- 1.2 mm thickness offers enhanced gap-filling capability
- Excellent adhesion to automotive paints and engineering plastics
- Outstanding vibration damping and stress relaxation
- High resistance to UV, weathering, solvents, and temperature cycling
- Maintains clean bond-line aesthetics
- Compatible with automated production lines
- Available in custom slit rolls and precision die-cut parts
- Meets multiple automotive OEM requirements
- Professional converting services from Guangdong Yousan
Installation Guide
- Clean bonding surfaces using isopropyl alcohol (IPA) or an approved automotive cleaner.
- Ensure all surfaces are clean, dry, and free from oil, wax, and dust.
- Apply the tape using firm, even pressure across the bonding area.
- Avoid repositioning after initial contact.
- Allow 24–72 hours at room temperature for maximum bond strength.
- Perform adhesion testing before mass production, especially on low-surface-energy substrates.
Storage
Store the tape in its original unopened packaging.
Recommended storage conditions:
- Temperature: 16–27°C (60–80°F)
- Relative Humidity: 40–60% RH
- Keep away from direct sunlight and excessive humidity.
- Store horizontally.
- Follow the FIFO (First-In, First-Out) inventory principle.
FAQ
What is 3M™ GT7112 used for?
GT7112 is designed for permanently bonding automotive exterior trim, including claddings, rocker panels, spoilers, wheel arch extensions, pillars, and decorative moldings.
How thick is GT7112?
The nominal thickness is 1.2 mm (0.047 inch).
Is GT7112 suitable for outdoor automotive applications?
Yes. It provides excellent resistance to UV exposure, weathering, moisture, solvents, and temperature cycling, making it suitable for long-term exterior use.
Can GT7112 replace mechanical fasteners?
Yes. GT7112 is widely used to replace screws, rivets, and clips while reducing vehicle weight and improving appearance.
Can GT7112 be die-cut?
Yes. Guangdong Yousan offers precision die-cutting, slitting, laminating, rewinding, and custom converting services.
What is the difference between GT7110, GT7112, and GT7116?
- GT7110: 1.0 mm
- GT7112: 1.2 mm
- GT7116: 1.6 mm
GT7112 provides greater gap-filling capability and vibration damping than GT7110 while maintaining excellent conformability and long-term durability.
Downloads
Available upon request:
- 3M™ GT7112 Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Automotive Bonding Guide
- Die-Cutting Capability Guide
- Product Brochure
Please contact our sales team if you require the latest technical documentation.
