Benefits
- Provides strong and reliable bonding for demanding assembly applications
- Bonds effectively to difficult low surface energy substrates
- Helps simplify plastic-to-metal and dissimilar-material assembly
- Polyester carrier improves dimensional stability during converting
- Dual liner facilitates selective die-cutting
- High initial adhesion supports efficient assembly
- Thin profile helps maintain a clean, low-profile finished design
- Suitable for foam, plastic, metal, and painted surface bonding
- Can reduce reliance on mechanical fastening in suitable applications
Technical Specifications
| Property | Specification |
|---|---|

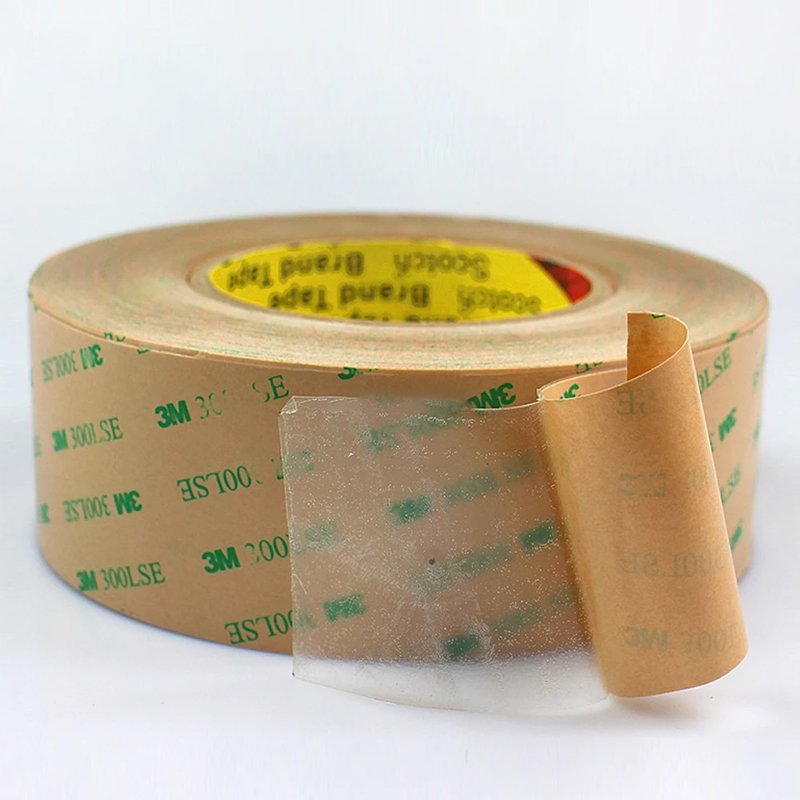

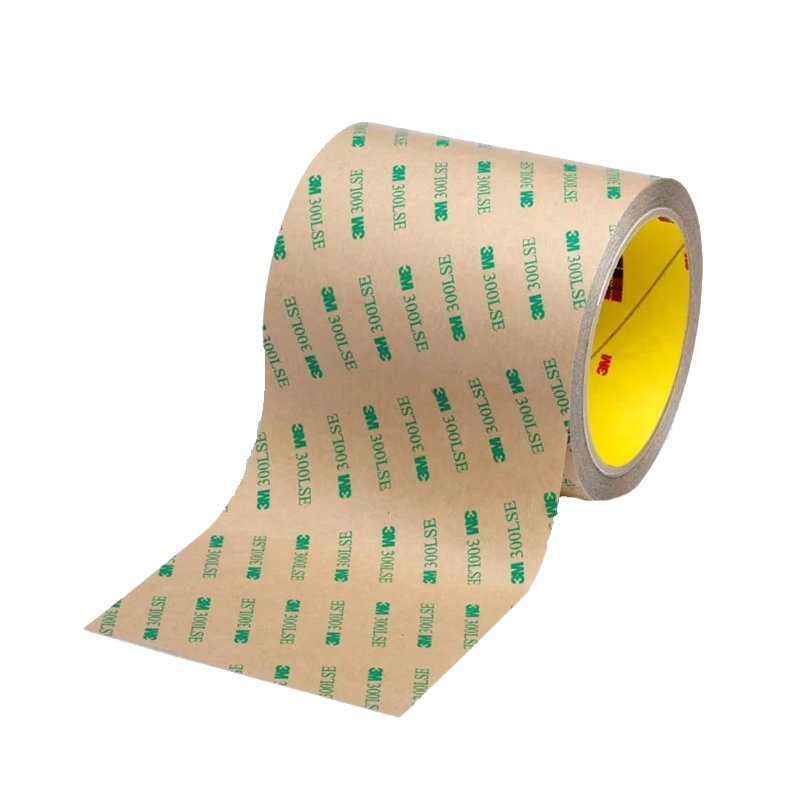

| Product | 3M™ Double Coated Tape 9474LE |
| Tape Type | Double coated polyester tape |
| Adhesive | 3M™ 300LSE Acrylic Adhesive |
| Carrier | Clear Polyester (PET) |
| Total Tape Thickness | 0.17 mm (6.7 mil) |
| Face Adhesive Thickness | 0.071 mm (2.8 mil) |
| Back Adhesive Thickness | 0.086 mm (3.4 mil) |
| Carrier Thickness | 0.013 mm (0.5 mil) |
| Liner | Polycoated Kraft (PCK) |
| Liner Structure | Dual liner |
| Primary Liner Thickness | 0.11 mm (4.2 mil) |
| Secondary Liner Thickness | 0.11 mm (4.2 mil) |
| Liner Color | Tan |
| Tape Color | Clear |
| 180° Peel Adhesion – Stainless Steel, 15 min | 6.6 N/cm (60 oz/in) |
| 180° Peel Adhesion – ABS, 72 h | 12 N/cm (110 oz/in) |
The above values are typical properties from the September 2024 3M Technical Data Sheet and should not be used as product specifications.
3M also identifies 9474LE as a 170 μm Double Coated Polyester Tape using 300LSE acrylic adhesive.
Applications
3M™ Double Coated Tape 9474LE is suitable for a wide range of industrial bonding and assembly applications, including:
- Foam-to-painted surface bonding
- Low surface energy plastic bonding
- Polypropylene (PP) bonding
- Lens and logo bonding
- Touchpad bracket assembly
- Battery bonding
- Gasket attachment
- Plastic component assembly
- Metal-to-plastic bonding
- Decorative trim attachment
- Industrial component mounting
- Precision die-cut adhesive components
3M specifically recommends 9474LE for foam-to-powder-coated painted surfaces, LSE plastic adhesion, lens and logo bonding, touchpad bracket assembly, battery bonding, and gasket attachment.
Compatible Materials
3M™ 9474LE is designed to bond a broad range of similar and dissimilar substrates.
Low Surface Energy Materials
- Polypropylene (PP)
- Other LSE plastics
- Powder-coated surfaces
High Surface Energy Materials
- Stainless steel
- Aluminum
- Other metals
- Glass
- Paper
Other Materials
- ABS
- Foam
- Painted surfaces
- Plastic components
- Gaskets
The 3M 300LSE adhesive family is designed to bond metals, most plastics, glass, papers, and painted surfaces, with particularly strong performance on many LSE plastics.
Industries
- Electronics
- Consumer electronics
- Automotive
- Appliances
- Industrial manufacturing
- Battery manufacturing
- Transportation
- Medical equipment
- General industrial assembly
- Consumer products
Why Choose 3M™ Double Coated Tape 9474LE?
3M™ 9474LE combines a PET film carrier with 3M™ 300LSE Acrylic Adhesive, making it a strong choice for applications where conventional double-sided tapes may have difficulty bonding to low surface energy substrates.
Its excellent adhesion to PP and other LSE plastics, combined with good adhesion to metals and painted surfaces, makes it particularly useful for dissimilar-material bonding. The PET carrier also provides dimensional stability, while the dual-liner construction improves handling during selective die-cutting and converting.
For manufacturers requiring custom adhesive components, 9474LE is especially suitable for slitting, laminating and precision die-cutting.
Installation Guide
1. Surface Preparation
Clean the bonding surfaces and remove dust, oil, grease, moisture and other contaminants.
2. Prepare the Tape
Cut 3M™ 9474LE to the required size or use a precision die-cut component.
3. Apply the First Side
Remove the appropriate liner and apply the adhesive side to the first substrate.
4. Apply Pressure
Apply firm, even pressure across the bonding area to maximize adhesive contact.
5. Remove the Second Liner
Carefully remove the remaining liner without touching or contaminating the exposed adhesive.
6. Position the Second Substrate
Align the mating substrate accurately before making full contact.
7. Apply Firm Pressure
Press the complete assembly to establish good contact between the adhesive and substrate.
8. Allow Bond Development
The 3M 300LSE adhesive develops increasing bond strength with time and temperature. Avoid exposing the assembly to maximum loads before sufficient bond development.
Storage
Store 3M™ Double Coated Tape 9474LE in its original packaging in a clean, dry environment.
Recommended storage practices include:
- Keep the product in its original packaging
- Protect from direct sunlight
- Avoid excessive heat and humidity
- Keep away from dust and contamination
- Do not expose the adhesive to unnecessary moisture or chemicals
- Follow the latest 3M technical documentation for applicable shelf-life requirements
For production use, customers should confirm storage conditions and shelf life against the current 3M documentation for their specific product configuration.
FAQ
What is 3M™ Double Coated Tape 9474LE?
3M™ 9474LE is a 0.17 mm double-coated polyester tape featuring 3M™ 300LSE Acrylic Adhesive.
Is 3M™ 9474LE a PET tape?
Yes. Its carrier is a clear polyester (PET) film approximately 0.013 mm thick.
What adhesive does 9474LE use?
It uses 3M™ 300LSE Acrylic Adhesive, which provides high initial adhesion and strong bonding to many low surface energy substrates.
Can 3M™ 9474LE bond polypropylene?
Yes. Excellent adhesion to polypropylene and other low surface energy plastics is one of its key advantages.
Can 9474LE bond metal to plastic?
Yes. Its 300LSE adhesive is designed to bond a wide range of similar and dissimilar materials, including metals and plastics.
What is the thickness of 3M™ 9474LE?
The total tape thickness without liner is 0.17 mm (6.7 mil).
Can 9474LE be die-cut?
Yes. The PET carrier provides dimensional stability for slitting and die-cutting, while its dual-liner construction facilitates selective die-cutting.
Is 9474LE suitable for battery bonding?
Yes. Battery bonding is one of the recommended applications listed by 3M.
Can 9474LE be used for foam bonding?
Yes. 3M specifically identifies foam-to-powder-coated painted surface bonding as a recommended application.
What is the difference between 9474LE and general-purpose PET double-sided tape?
9474LE uses 3M 300LSE acrylic adhesive, which is specifically engineered for high adhesion to LSE substrates such as polypropylene and powder-coated surfaces.
Downloads
Available upon request:
- 3M™ 9474LE Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Product Brochure
- Precision Die-Cutting Capability Guide
Please contact our sales team if you require the latest technical documentation.
