Glass Fiber Thermal Conductive Tape

Glass fiber thermal conductive tape is a high-performance adhesive tape designed to provide reliable thermal transfer and electrical insulation in electronic and industrial applications. It consists of a fiberglass-reinforced backing, which gives the tape excellent mechanical strength, dimensional stability, and high temperature resistance, combined with a thermally conductive adhesive layer. This tape efficiently dissipates heat from heat-generating components to heat sinks or chassis, while also providing electrical isolation and strong bonding.

Features:

Glass fiber reinforced backing for durability and tear resistance.
Excellent thermal conductivity to improve heat dissipation.
Electrically insulating yet thermally conductive.
High temperature resistance and dimensional stability.
Strong adhesion to metals, ceramics, and plastics.

Applications:

Attaching heat sinks to power transistors, LEDs, or ICs, Bonding components in high-power electronic assemblies, Thermal management in battery packs and modules, Insulating and heat-conducting layers in motors and transformers, Mounting power devices where both insulation and heat transfer are required.

Additional Documents:

Glass Fiber Thermal Conductive Tape (TDS)

Adhesive Tapes Selection Guide

Category: Glass Fiber Thermal Conductive Tape

Description

Technical data

Product Code / Technical Parameters	P8010	P8015	P8020	P8025	P8030	P8035	P8040	P8050	P8070
Color	White	White	White	White	White	White	White	White	White
Total Thickness [mm]	0.1	0.15	0.2	0.25	0.3	0.35	0.4	0.5	0.7
Backing Thickness [mm]	0.05	0.05	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Backing	Glass Fiber
Adhesive	Acrylic
180° Peel Strength [N/inch]	12	12	15	15	15	15	18	18	20
Initial Adhesion [#]	2	2	2	2	3	3	3	3	3
Thermal Conductivity [W/mk]	0.3～0.8
Long-Term Temperature Resistance [℃]	80
Short-Term Temperature Resistance [℃]	120

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

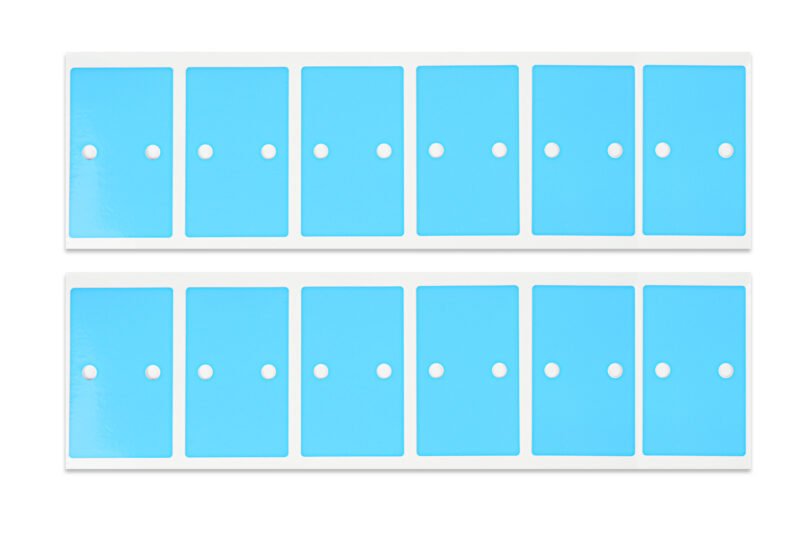

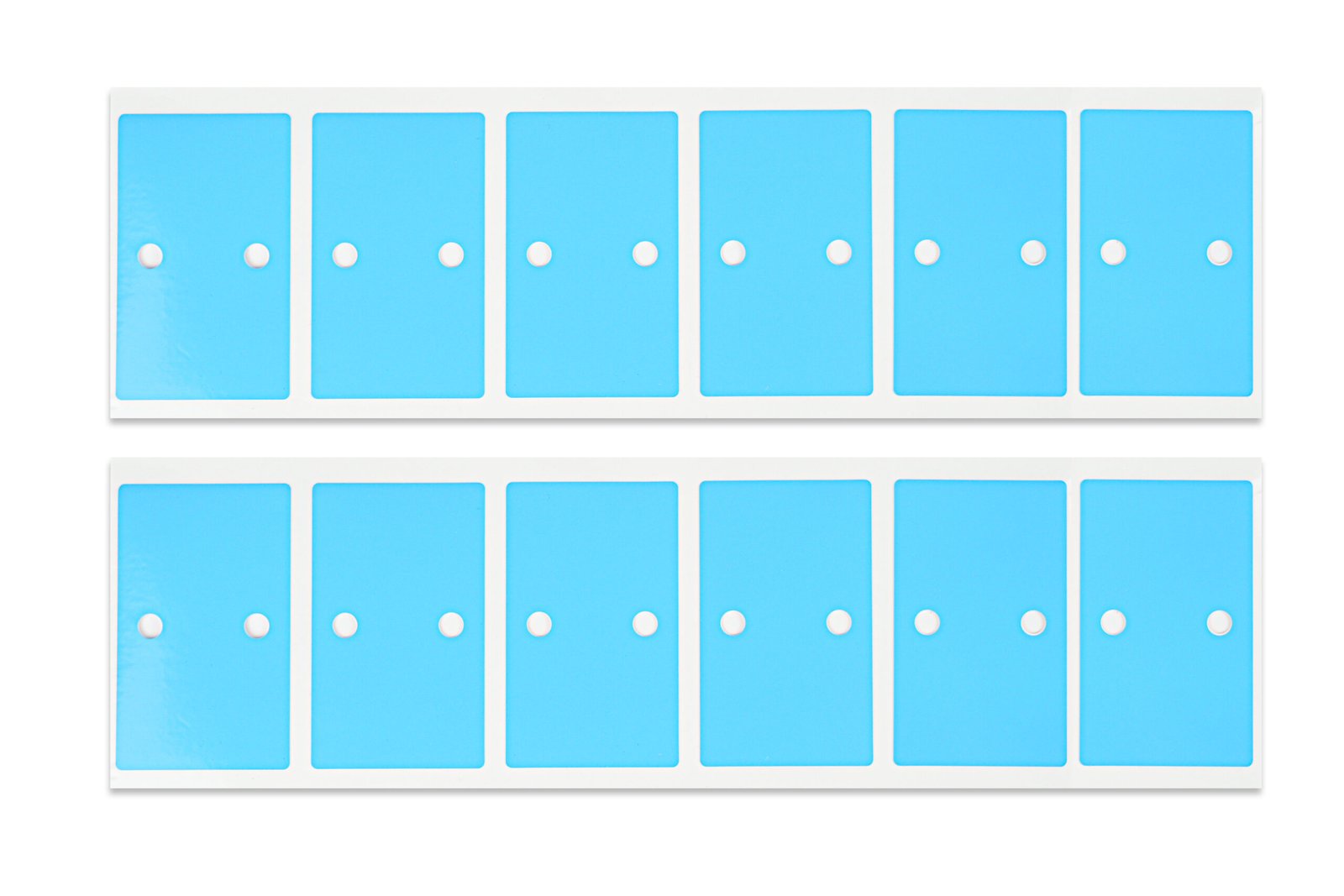

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
