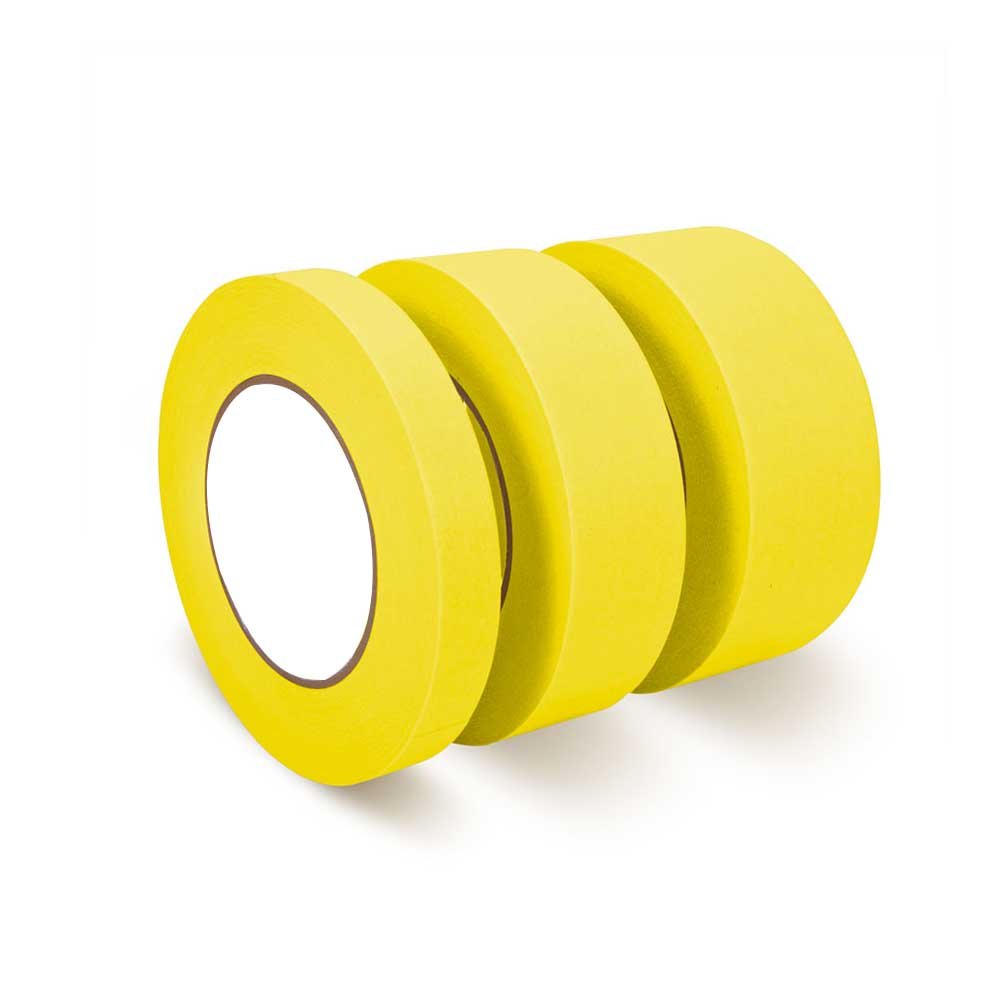

Automotive Yellow Masking Tape

Automotive Yellow Masking Tape is a high-performance crepe paper masking tape specifically designed for automotive refinishing, painting, and surface protection applications. It is coated with a premium rubber-based adhesive that delivers strong initial tack, reliable holding power, and clean removal without residue. This tape features excellent conformability, allowing it to adhere smoothly to curves, contours, and irregular surfaces commonly found on vehicle bodies. The bright yellow color ensures high visibility during application and removal, improving efficiency and accuracy in professional paint shops. Automotive Yellow Masking Tape offers good temperature resistance, making it suitable for use in spray booths and low to medium baking cycles. It resists paint bleed-through, solvents, and moisture, helping achieve sharp, clean paint lines and professional-grade finishes. Widely used in automotive repair shops, OEM painting, and detailing operations, this tape is ideal for masking during spraying, sanding, priming, and general surface protection.

Features:

  • High-quality crepe paper backing with excellent flexibility and tearability.
  • Strong rubber-based adhesive with good initial tack and holding strength.
  • Conforms easily to curves, edges, and complex automotive surfaces.
  • Clean removal without residue within the recommended time frame.
  • Good heat resistance for automotive spray booths and low/medium bake cycles.
  • High visibility yellow color for easy identification and removal.
  • Resistant to paint bleed-through, solvents, and moisture.

Applications:

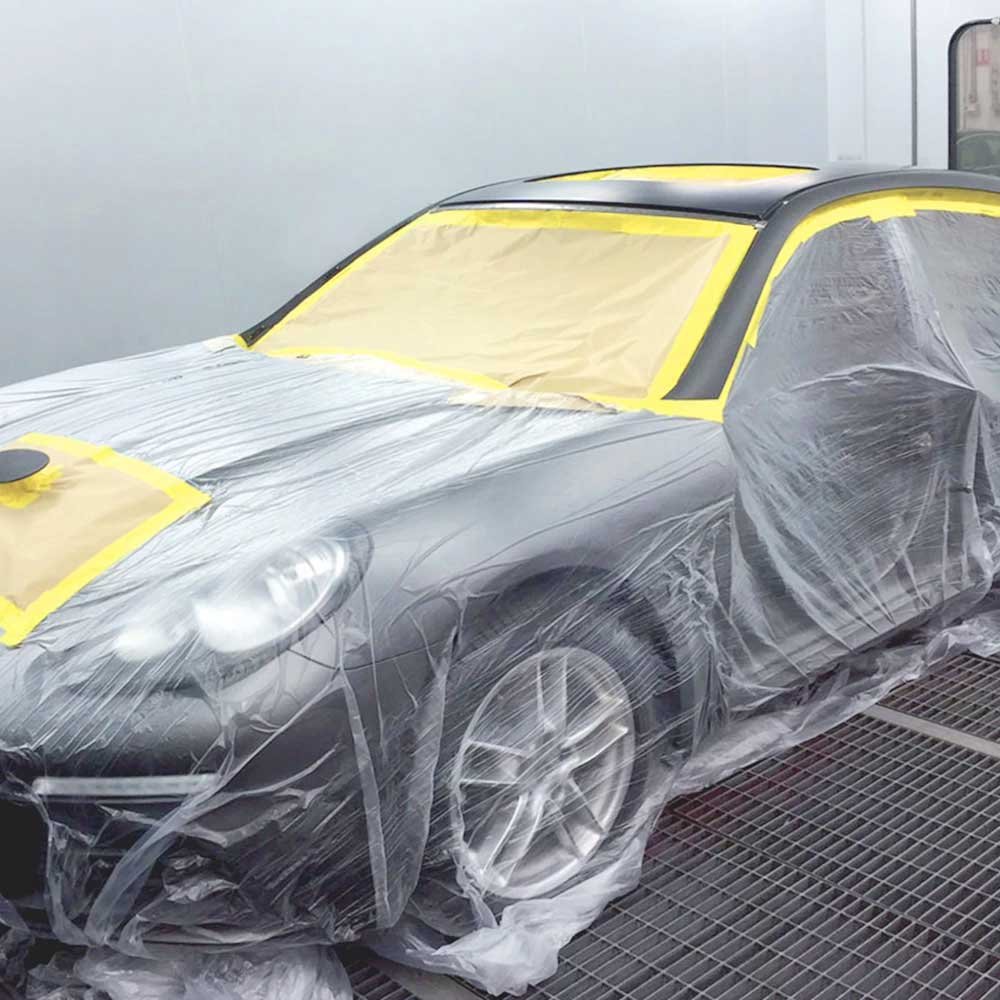

Automotive refinishing and repainting operations, Masking during spray painting, priming, and clear coating, Protection of trims, glass, rubber seals, and body panels, Use in auto body shops, OEM paint lines, and detailing centers, General-purpose masking for sanding, polishing, and surface preparation.

Additional Documents:

Automotive Yellow Masking Tape (TDS)

Adhesive Tapes Selection Guide


Category:

Technical data

Product Code / Technical Parameters P1731 P1728 P1728H P1709 P1709G P1716 P1717N P1717F
Color Dark yellow Dark yellow Yellow Dark yellow Green Yellow Yellow light yellow
 Total Thickness[mm] 0.155 0.15 0.16 0.15 0.16 0.16 0.17 0.17
Adhesive Rubber Rubber Rubber Rubber Rubber Rubber Rubber Rubber
Backing  Masking paper  Masking paper  Masking paper  Masking paper  Masking paper  Masking paper  Masking paper  Masking paper
180°Peel Strength[N/25mm] 7.5 7.5 7.5 9 8.5 9 8.5 9
Tensile Strength[N/25mm] 65 85 85 80 90 75 75 85
Elongation Rate[%] 7 8~10 8~10 10 10~12 7 9~13 8
Temperature resistance[℃] 80℃/30min 100℃/30min 120℃/30min 120℃/30min 120-130℃/30min 150℃/30min 150℃/30min 170℃/30min

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
