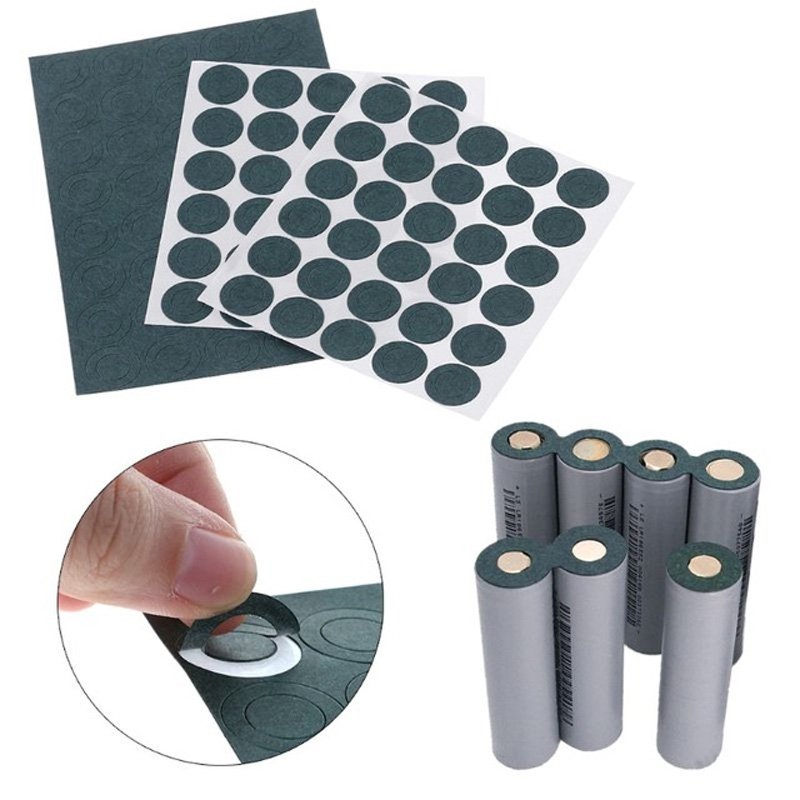

Highland Barley Paper

Highland Barley Paper is a type of pure cellulose-based insulating paper made from high-quality wood pulp or plant fibers. Known for its excellent mechanical strength, good dielectric performance, and cost-effectiveness, it is widely used in low- and medium-voltage electrical insulation systems such as motors, transformers, and lighting ballasts.

Features:

  • Good Electrical Insulation: Provides stable dielectric properties for basic electrical barrier and slot insulation.
  • Cost-Effective Solution: An economical insulating material for general-purpose electrical applications.
  • Good Mechanical Strength: Maintains integrity during cutting, folding, and assembly processes.
  • Printable & Writable Surface: Can be marked or labeled for identification in assembly operations.
  • Environmentally Friendly: Made from biodegradable plant-based fibers.

Applications:

Slot liner insulation in small electric motors, Layer insulation in transformers, Wrapping or interleaving material in coil windings, Die-cut electrical barrier components in household appliances, Temporary masking or protective sheets in electrical assembly.

Additional Documents:

Highland Barley Paper (TDS)

Adhesive Tapes Selection Guide

Category:

Technical data

Product model / Technicl Parameters P7015 P7017 P7020 P7025 P7030 P7050 P7015F P7020F P7025F
Total thickness[mm] 0.15 0.17 0.2 0.25 0.3 0.5 0.15 0.2 0.25
Nominal grammage[g/m2] 155 180 210 255 300 600 155 210 255
Film nominal thickness[um] 25 25 25 25 25 25 25 25 25
Tensile strength（MD）[N/10mm] ≥100 ≥110 ≥120 ≥120 ≥150 ≥150 ≥100 ≥120 ≥120
Tensile strength（TD）[N/10mm] ≥70 ≥75 ≥80 ≥95 ≥105 ≥105 ≥70 ≥80 ≥95
Elongation At Break（MD）[%] ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2
Elongation At Break（TD）[%] ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8
Electric breakdown voltage [KV] ≥2 ≥3 ≥4 ≥5 ≥5.5 ≥6 ≥2 ≥4 ≥5
Bond strength at 120± 2℃, 10Min No delamination, no blister, no adhesive flow

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

✔️ OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

✔️ ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
