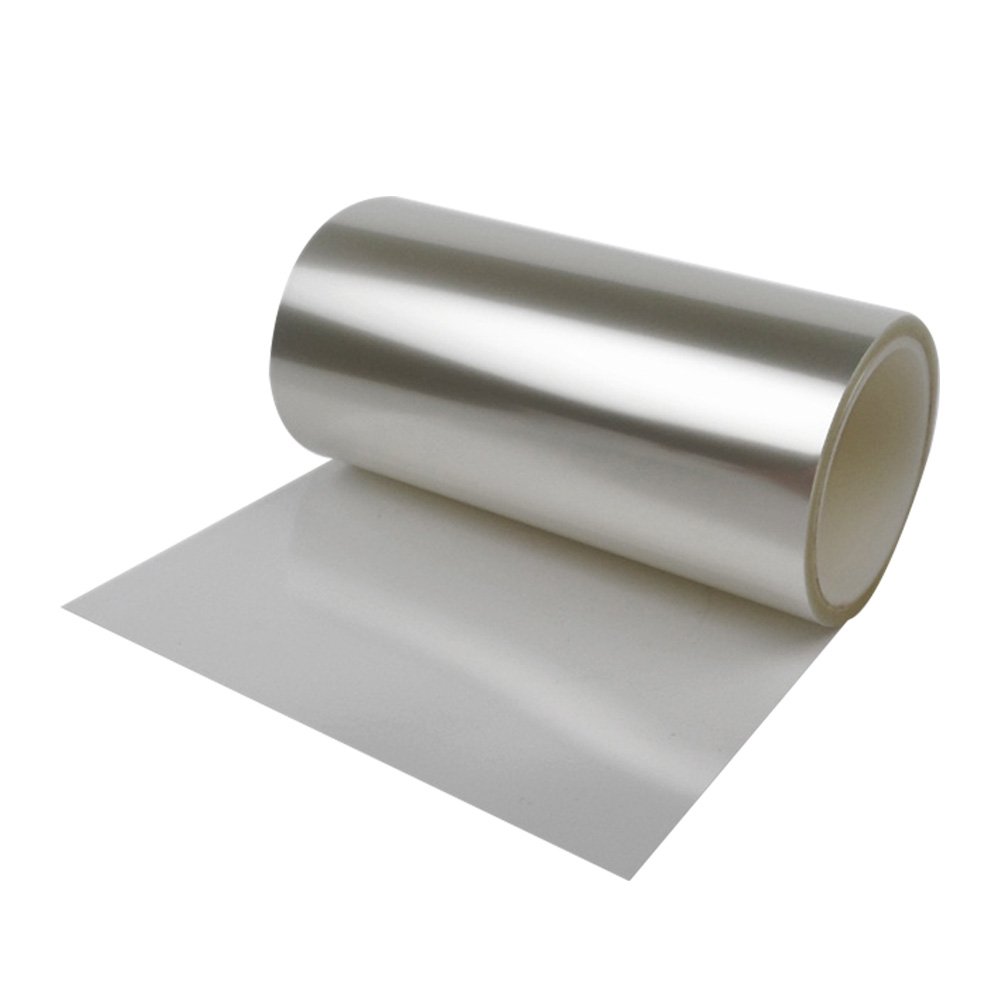

PET Splice Tape Non-fluoroplastic Film

PET Splice Tape Non-fluoroplastic Film refers to high-performance polymer films that do not contain fluorine compounds but still offer excellent mechanical, thermal, and electrical properties. Typically made from materials like polyimide (PI), polyethylene terephthalate (PET), or polyethylene naphthalate (PEN), these films are widely used in flexible electronics, insulation.

Features:

Excellent electrical insulation properties.
High thermal resistance (depending on material type).
Good mechanical strength and dimensional stability.
Chemically resistant and moisture-resistant.
Lightweight and flexible for easy processing.
Environmentally friendly (fluorine-free).
Cost-effective alternative to fluoroplastic films.
Suitable for high-speed die-cutting and lamination.

Applications:

Insulation layers in electronic components, Flexible printed circuit (FPC) base materials, Motor and transformer insulation, Display and touchscreen protective layers, Thermal barrier layers in EV battery modules, Wire and cable wrapping, Industrial masking and lamination, Packaging for high-temperature or cleanroom use.

Additional Documents:

Pet Splice Tape Non-fluoroplastic Film (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code / Technical Parameters	P0308RA-1	P0308BA	P0308YA
Color	Red	blue	Yellow
Backing Thickness[mm]	0.038±0.002	0.038±0.002	0.038±0.002
Total Thickness[mm]	0.08	0.08	0.08
Backing	PET film	PET film	PET film
Adhesive	Silicone	Silicone	Silicone
180°Peel Strength[g/25mm]	1000	1000	1000
Tensile Strength[25mm/Mpa]	MD≥95，TD≥80
Sticky Displacement[mm/24H]	≤0.1
initial tack‌[25mm/#]	≥20
Long-Term Temperature Resistance[℃]	180
Short-Term Temperature Resistance[℃]	220

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
