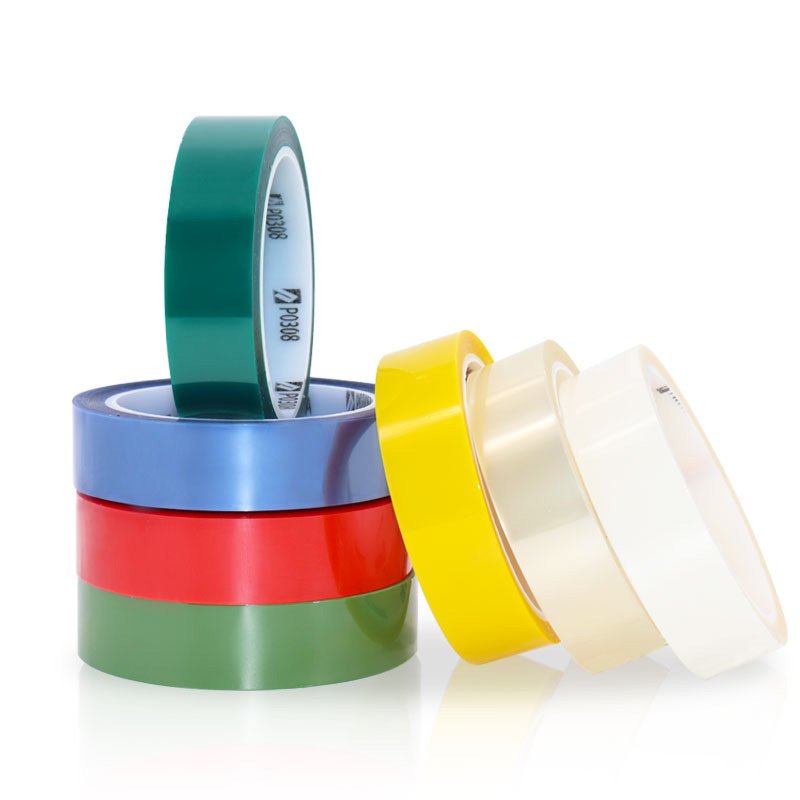

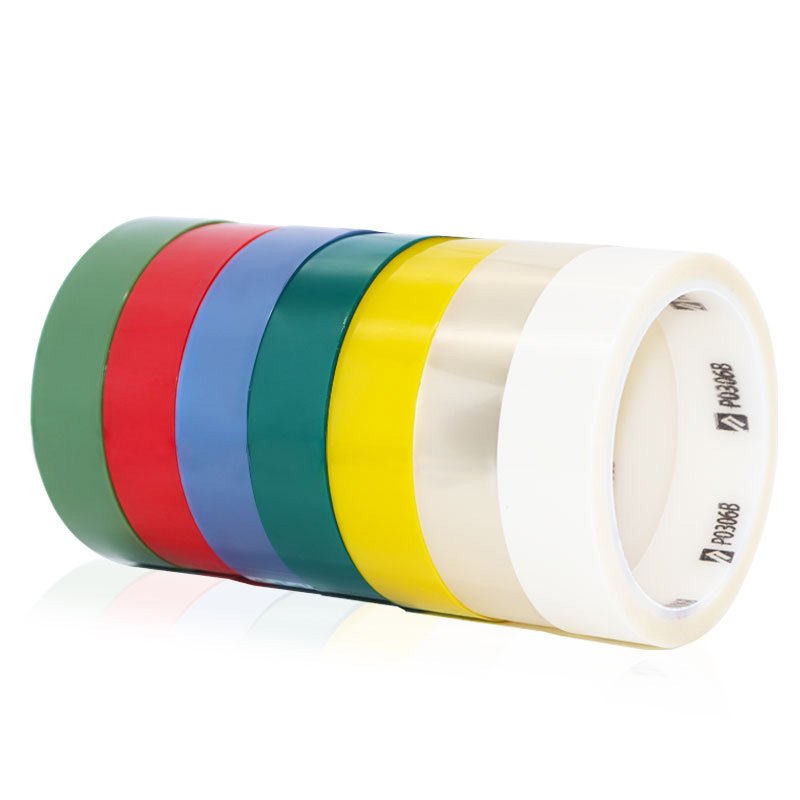

PET High Temperature Tape

PET High Temperature Tape is made from durable polyester (PET) film coated with a high-performance pressure-sensitive adhesive, typically silicone or acrylic. It is engineered to withstand elevated temperatures while providing excellent adhesion, dimensional stability, and clean removal, making it ideal for various electronic, electrical, and industrial masking applications.

Features:

Withstands temperatures up to 180°C (acrylic) or 220–260°C (silicone).
Excellent adhesion to metal, glass, plastic, and PCB substrates.
Leaves no adhesive residue after removal.
High tensile strength and chemical resistance.
Suitable for die-cutting, slitting, and automated application.
Available in various widths, lengths, and thicknesses.

Applications:

PCB solder masking and wave soldering, Powder coating and surface protection during high-temperature processes, Electrical insulation in transformers, motors, and coils, Lithium battery pack manufacturing, Label overlamination and barcode protection.

Additional Documents:

PET High Temperature Tape (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code / Technical Parameters	P0305K	P0306	P0306A	P0306B	P0307	P0308	P0308-75L	P0309	P03095	P0312	P0315	P0306E	P0307E
Color	Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue (Customizable)
Total Thickness [mm]	0.05	0.06	0.055	0.06	0.07	0.08	0.08	0.09	0.095	0.12	0.15	0.06	0.07
Backing Thickness [mm]	0.025	0.025	0.038	0.038	0.025	0.05	0.05	0.05	0.025	0.075	0.1	0.025	0.05
Backing	PET
Adhesive	Silicone
180° Peel Strength [N/inch]	7-8	8	8	8	8	7.5	8-9	10	8	11	10	6	7-8
Tensile Strength [N/inch]	135	135	150	150	150	150	150	150	150	175	200	135	135
Elongation At Break [%]	70	70	70	70	70	70	70	70	70	70	70	70	70
Long-Term Temperature Resistance [℃]	180	180	180	180	180	180	180	180	180	180	180	180	180
Short-Term Temperature Resistance [℃]	200	200	200	200	200	200	200	200	200	200	200	200	200

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
