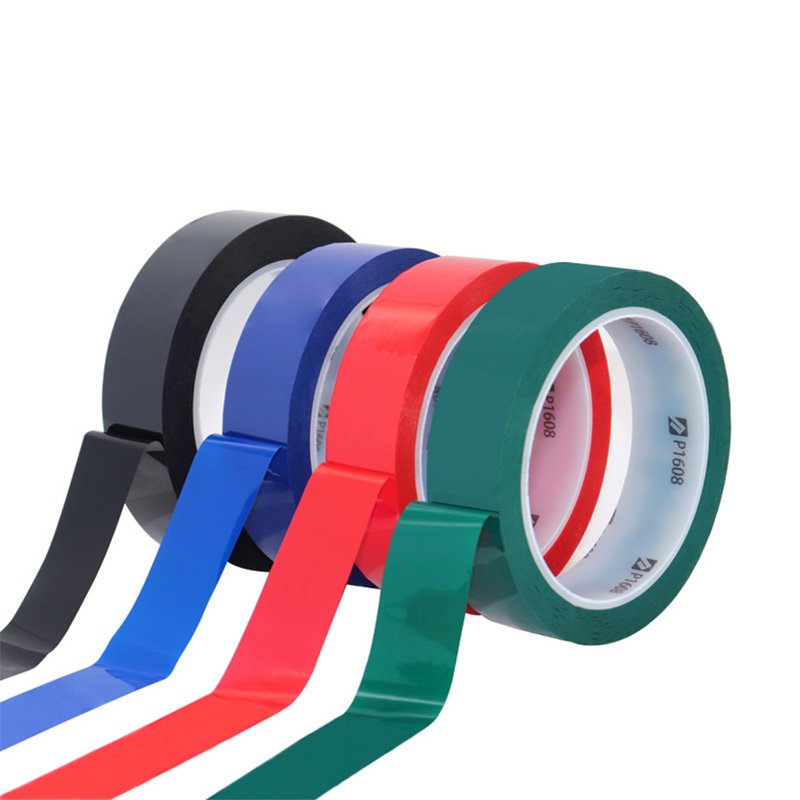

Mylar Tape

Mylar Tape is a high-performance polyester film-based adhesive tape, engineered for electrical insulation, heat resistance, and mechanical protection. It is made from PET (polyethylene terephthalate) film, commonly coated with an acrylic or rubber-based pressure-sensitive adhesive, offering excellent dielectric strength and dimensional stability. Mylar tape is widely used in transformers, coils, motors, capacitors, and electronics assembly.

Features:

  • Made from durable Mylar® polyester film.
  • Excellent electrical insulation and dielectric properties.
  • Withstands temperatures typically up to -10°C ~ 150°C.
  • High tensile strength and tear resistance.
  • Good chemical and abrasion resistance.
  • Available in various thicknesses, widths, and die-cut formats.

Applications:

Insulation wrapping for coils, transformers, and motors, Phase insulation and slot liners in electrical assemblies, PCB masking and protection during soldering or wave processes, Battery pack insulation in EV and energy storage systems, Shielding and isolation in consumer electronics and industrial devices.

Additional Documents:

Mylar Tape (TDS)

Adhesive Tapes Selection Guide

Category:

Technical data

Product Code / Technical Parameters P1603 P1605 P16055 P1606 P1608 P1611
Color Transparent, Green, Red, Blue, Black, White, Light Yellow, Dark Yellow
 Total Thickness [mm] 0.03 0.052 0.055 0.06 0.08 0.11
Backing Thickness [mm] 0.02 0.025 0.025 0.025 0.05 0.025
Backing PET PET PET PET PET PET
Initial Adhesion [#] ≥3 ≥3 ≥3 ≥3 ≥3 ≥3
180° Peel Strength [N/inch] 4-6 6-8 6-8 6-8 6-8 6-8
Breakdown Voltage [KV] ≤3 ≥3 ≥3 ≥3 ≥3 ≥3
Tensile Strength [N/inch] 60 87.5 90 90 225 60
Elongation At Break [%] 70 70 70 70 70 70
Temperature Resistance [℃] -10 ~ 150 -10 ~ 150 -10 ~ 150 -10 ~ 150 -10 ~ 150 -10 ~ 150
Flame Retardant Grade UL510 UL510 UL510 UL510 UL510 UL510

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

✔️ OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

✔️ ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
