PI Overlay Film

PI Overlay Film

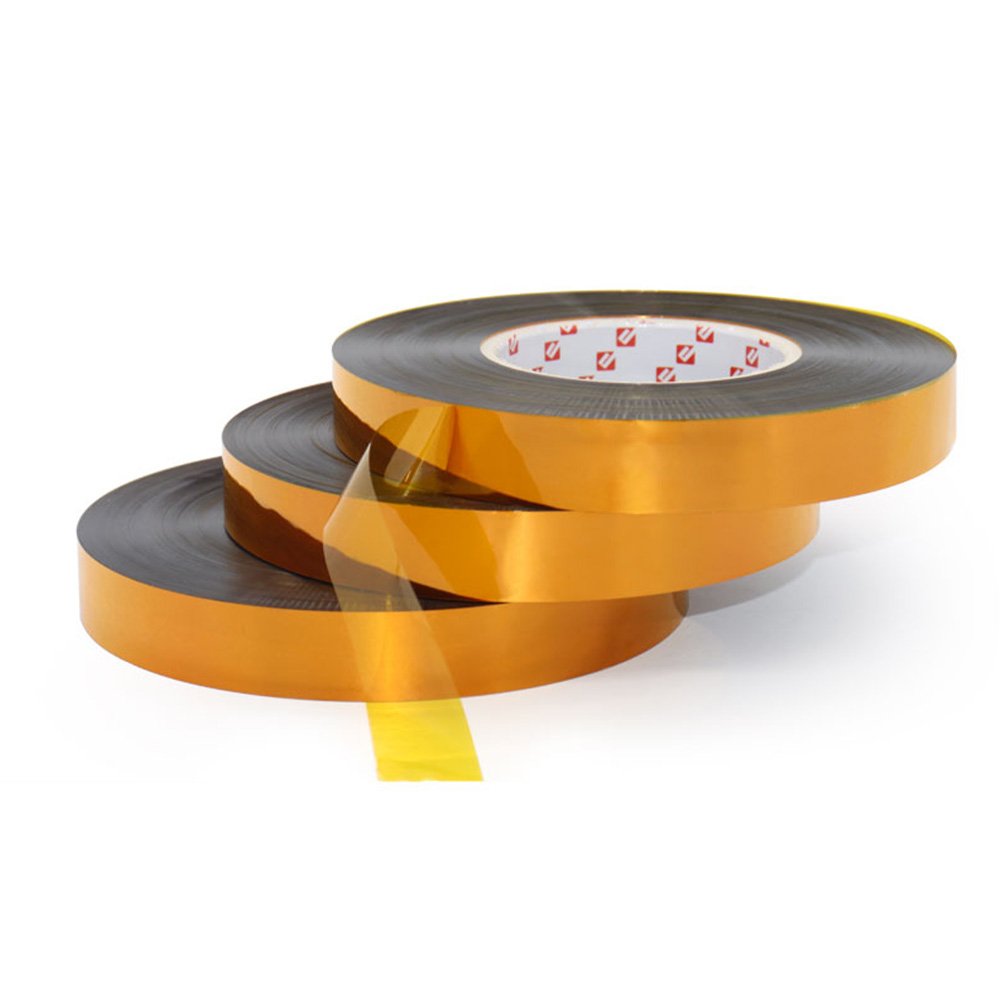

PI overlay film is a covering film made of PI film as the base material, coated with epoxy glue, and covered with release liner. It has the characteristics of halogen-free flame retardancy, high temperature resistance, low smoke and low toxicity, good insulation, environmental friendliness, and mechanical properties.

Features:

Excellent thermal resistance (up to 280°C).
Superior electrical insulation properties.
High mechanical strength and flexibility.
Chemically resistant and flame retardant.
Compatible with various adhesive systems.
Low outgassing, ideal for cleanroom applications.

Applications:

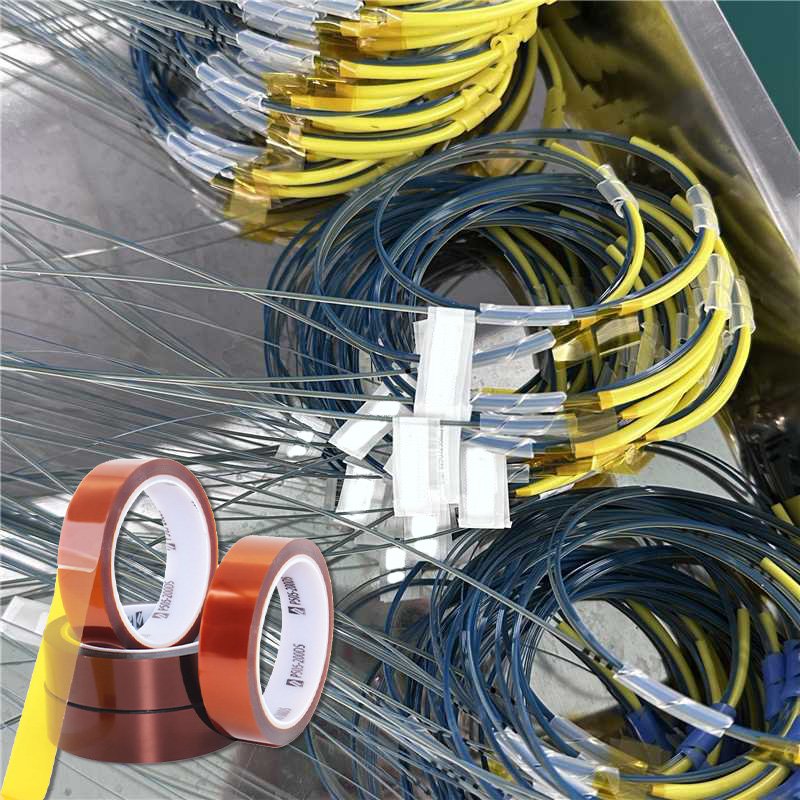

Flexible Printed Circuits (FPC) overlay protection, PCB insulation layers, Electronic shielding and encapsulation, Aerospace and automotive electronics, High-temperature electrical insulation, Wearable and miniaturized device assemblies.

Additional Documents:

PI Overlay Film (TDS)

Adhesive Tapes Selection Guide

Technical data

Color	yellow
Backing Thickness[mm]	13/25
Adhesive layer thickness [mm]	10/15/25/30/35
Backing	PI
Adhesive	Epoxy adhesive
180°Peel Strength[N/inch]	0.8-1.2
Antistatic index (membrane impedance) [Ω ]	105 -1011
Dielectric constant(1MHz)	3.8
Dissipation factor(1MHz)	0.036
Volume resistivity	5.8X108
Surface resistance	2.2X105
Temperature resistance[℃]	280，>10s

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

Accept OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

Accept ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
