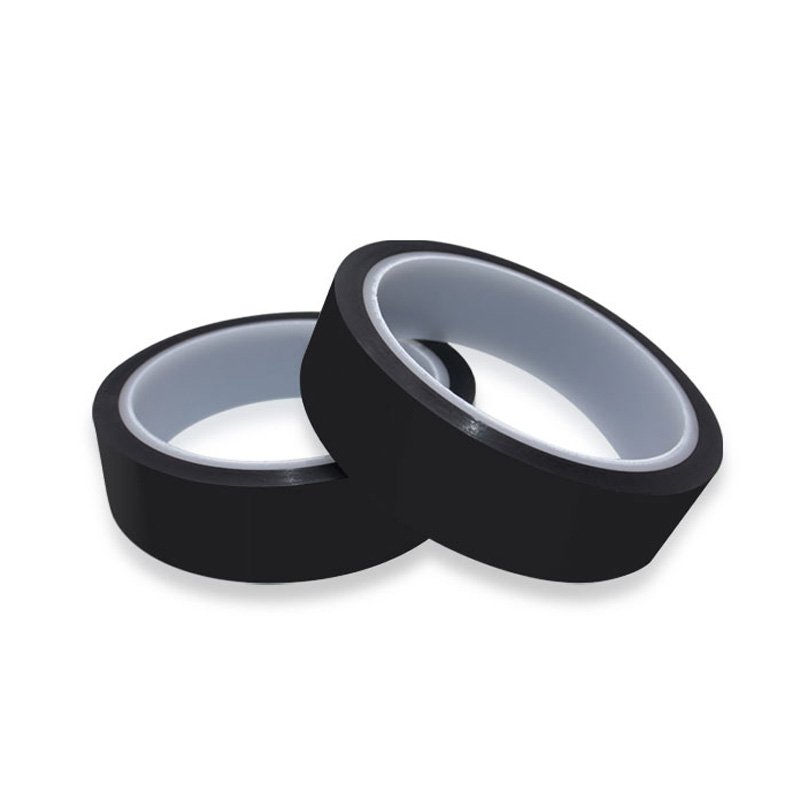

Black Kapton Tape

Black kapton tape (Black polyimide tape) is a high-temperature adhesive tape made of polyimide film and coated with silicone pressure-sensitive adhesive. It has excellent insulation, breakdown voltage resistance, high temperature resistance of 260 degrees and other characteristics.

Features:

Made of black-dyed polyimide film for full light blocking.
Excellent thermal stability: withstands up to 260°C continuous and up to 280°C short-term.
High dielectric strength for electrical insulation and circuit protection.
Chemical and abrasion resistant, ideal for harsh environments.
Clean removal with minimal residue.
Available with silicone or acrylic adhesive, and customizable sizes or die-cut shapes.

Applications:

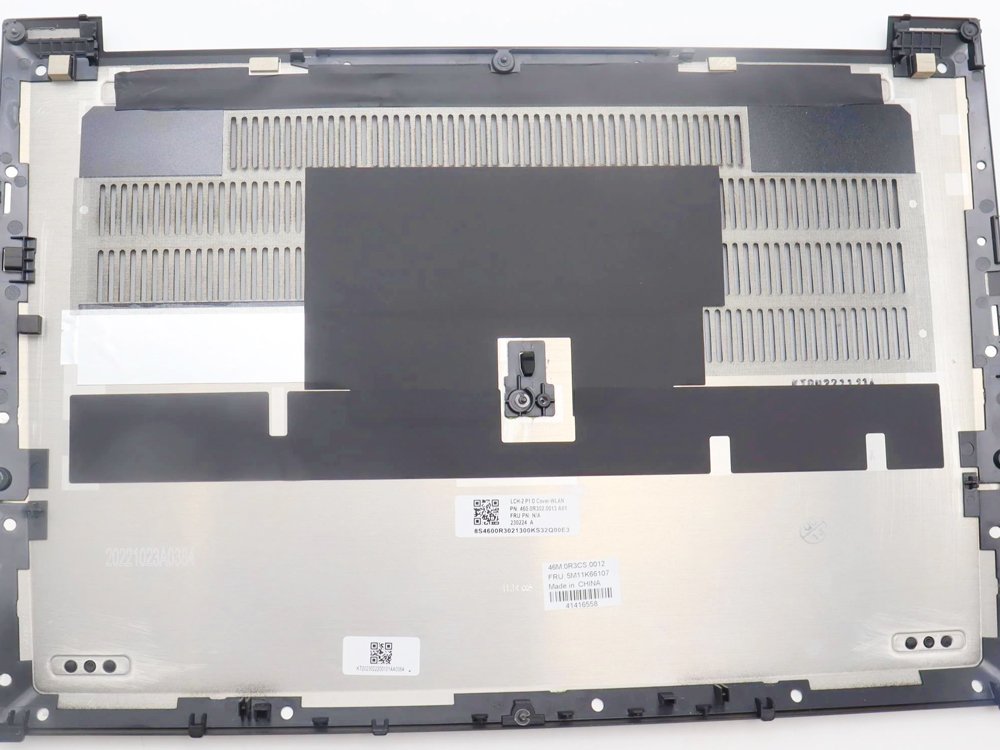

Lithium-ion battery packs (insulation, black shielding), Light-blocking in optical and sensor modules, PCB masking and protection during soldering or reflow, Aerospace and defense electronics requiring UV-blocking insulation, Automotive electronics, cameras, and display modules.

Additional Documents:

Black Kapton Tape (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code / Technical Parameters	P0105B	P0108B
Color	Black
Total Thickness [mm]	0.05	0.08
Backing Thickness [mm]	0.025	0.025
Backing	PI	PI
Adhesive	Silicone
180° Peel Strength [N/inch]	4.5-5	5-5.5
Tensile Strength [kg/25mm]	10	20
Elongation At Break [%]	45	55
Breakdown Voltage [KV]	5	7
Long-Term Temperature Resistance [℃]	260	260
Short-Term Temperature Resistance [℃]	280	280

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

Accept OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

Accept ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
