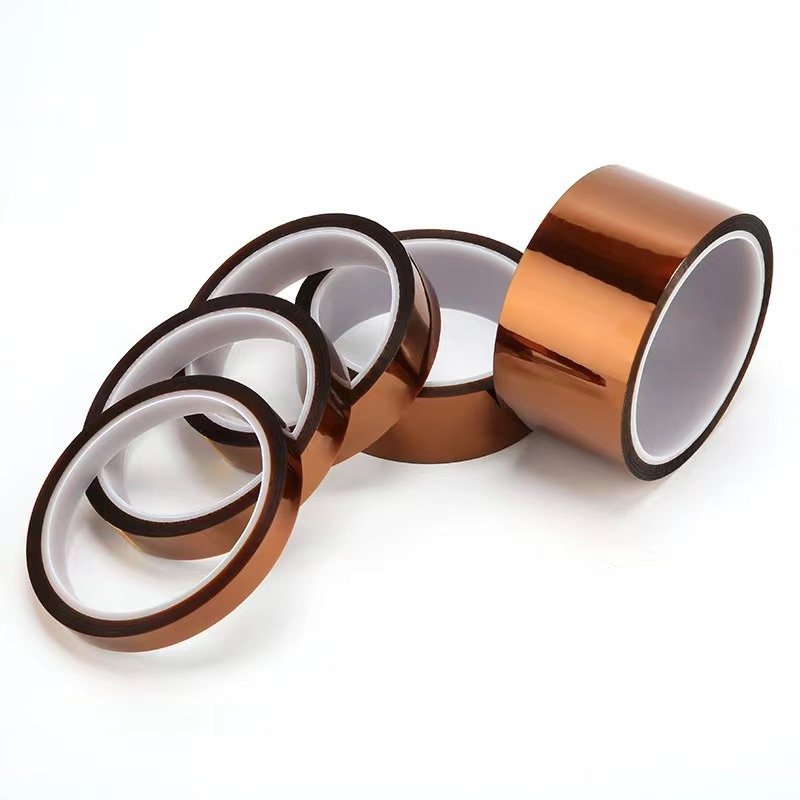

Acrylic Kapton Tape

Acrylic kapton tape is a high-temperature adhesive tape made of polyimide film and coated with silicone pressure-sensitive adhesive. It has excellent insulation, breakdown voltage resistance, high temperature resistance of 150°C and other characteristics.

Features:

High-Temperature Resistance: Withstands continuous temperatures up to 150°C, suitable for extreme thermal environments.
Excellent Electrical Insulation: Ideal for use in transformers, motors, lithium batteries, and PCB masking.
Strong Acrylic Adhesive: Provides firm, long-lasting adhesion to metal, plastic, and silicone surfaces, with excellent holding power.
Clean Removal: Removes without leaving sticky residue, even after prolonged heat exposure.
Chemical & Solvent Resistance: Resistant to oils, acids, and most industrial solvents—perfect for harsh manufacturing environments.
Thin, Flexible Polyimide Film: Offers excellent conformability to irregular surfaces and tight spaces.
RoHS & REACH Compliant: Safe for use in global electronic and industrial applications.

Applications:

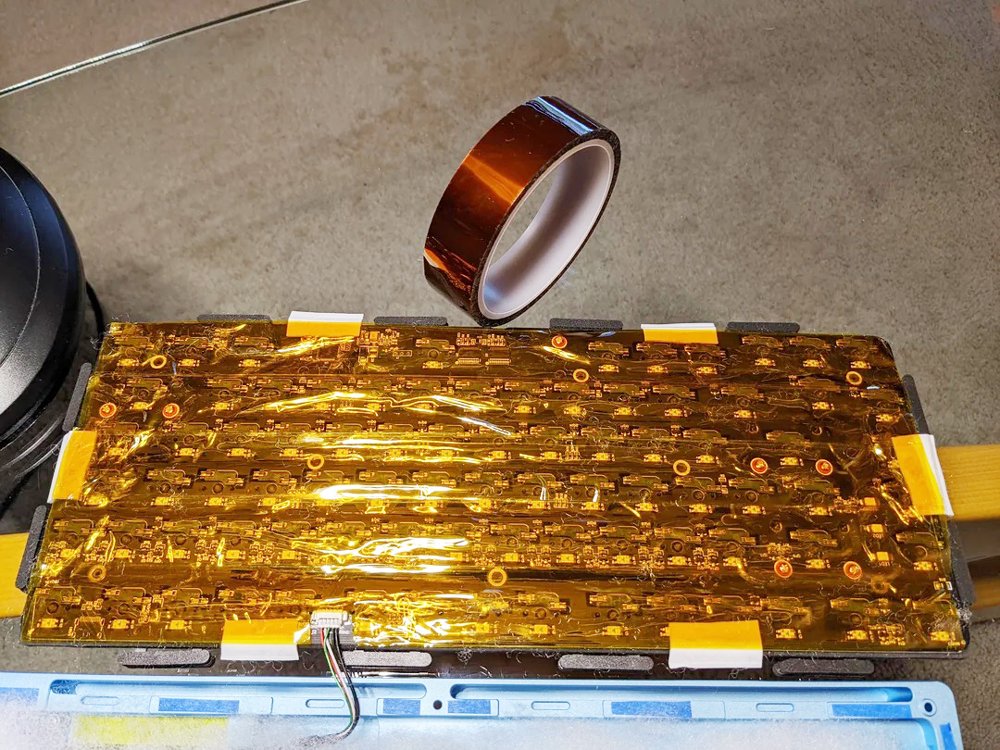

Nsulation for lithium-ion battery modules and EV packs, Masking in electronics manufacturing and PCB lamination, Bonding and wrapping of transformers, coils, and sensors, Protective barrier in LED, solar, and flexible circuit applications, EMI/RFI shielding in industrial or aerospace assemblies..

Additional Documents:

Acrylic Kapton Tape (TDS)

Adhesive Tapes Selection Guide

Category: Kapton Tape

Description

Technical data

Product Code / Technical Parameters	P0105A
Color	Gold， Red, Green, Transparent
Total Thickness [mm]	0.05
Backing Thickness [mm]	0.025
Backing	PI
Adhesive	Silicone
180° Peel Strength [N/inch]	3~5
Tensile Strength [kg/25mm]	10
Elongation At Break [%]	45
Breakdown Voltage [KV]	5
Long-Term Temperature Resistance [℃]	100
Short-Term Temperature Resistance [℃]	150

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

Accept OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

Accept ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight, to prevent damage to the packaging, and to avoid keeping it with volatile solvents. The storage temperature is 0-40°C and the humidity is <80%. To maintain optimal performance, this product should be used within 12 months from the date of manufacture.
