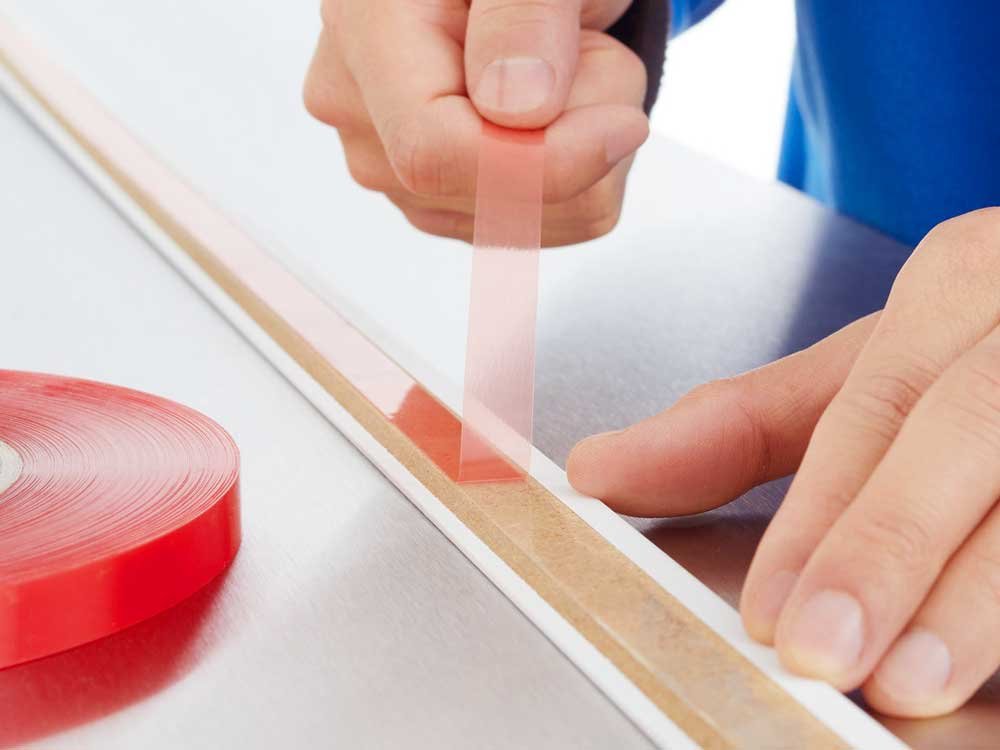

Red Film Transparent Pet Double-Sided Tape

Red Film Transparent Pet Double-Sided Tape is made of transparent PET film as the base material and coated with special acrylic pressure-sensitive adhesive on both sides. It has excellent adhesion, good initial tack and stickiness, good high humidity resistance, excellent aging resistance, excellent shear resistance at high and low temperatures, and strong tensile resistance.

Features:

Transparent PET carrier for invisible bonding.
Strong initial tack and long-term holding power.
Red PET liner for easy identification and clean release.
Excellent resistance to heat, humidity, and aging.
Thin and durable for tight tolerance assembly.

Applications:

Smartphone and tablet screen lamination, Transparent film, glass, and acrylic bonding, Nameplate and label mounting, Display panel assembly and lens bonding, Electronics and appliance component fixing.

Additional Documents:

Red Film Transparent Pet Double-Sided Tape (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code	Color	Total Thickness [um]	Backing [mm]	Adhesive	Initial Tack [mm]	180°Peel Strength [N/inch]	Retentivity [hour]	Long-Term Temperature Resistance [℃]	Short-Term Temperature Resistance [℃]
P3208M	Transparent	80	0.012	Acrylic	≤120	≥10	≥24	80	120
P3210M	Transparent	100	0.012	Acrylic	≤100	≥12	≥24	80	120
P3216M	Transparent	160	0.012	Acrylic	≤100	≥15	≥24	80	120
P3220M	Transparent	205	0.012	Acrylic	≤100	≥17	≥24	80	120
P3220LM	Transparent	205	0.012	Acrylic	≤100	≥18	≥24	40	60

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
