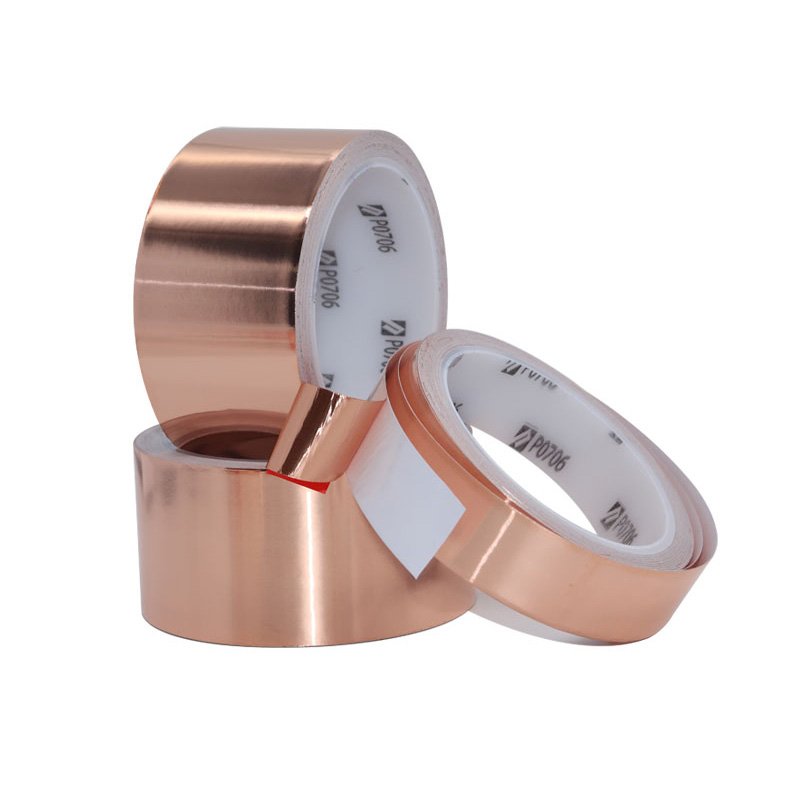

Copper Foil Tape

Copper foil tape is a thin, flexible strip of pure copper coated on one side with a conductive or non-conductive adhesive. Known for its excellent electrical conductivity, shielding capability, and corrosion resistance, copper foil tape is widely used in electronics, EMI/RFI shielding, grounding, and arts & crafts. The copper backing ensures superior performance in both electrical and thermal conduction, while its malleability allows it to conform to irregular surfaces.

Features:

Made of high-purity copper foil with excellent electrical and thermal conductivity.
Available with conductive or insulating adhesive.
Effective EMI/RFI shielding and grounding.
Easy to cut, shape, and apply by hand.
Resistant to oxidation, moisture, and UV.

Applications:

EMI/RFI shielding of enclosures, cables, and connectors, Grounding and static discharge in electronic devices, Repairs and modifications of circuit boards, Arts, crafts, and decorative applications, Stained glass soldering and creative projects.

Additional Documents:

Copper Foil Tape (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code / Technical Parameters	P0703	P07038	P07045	P0705	P0706	P0707	P0709	P0710	P0712	P0715
Color	Copper
Total Thickness [mm]	0.03	0.038	0.045	0.05	0.06	0.07	0.09	0.1	0.12	0.15
Backing Thickness [mm]	0.009	0.018	0.035	0.018	0.025	0.035	0.05	0.05	0.075	0.1
Backing	Copper foil
Adhesive	Acrylic
180° Peel Strength [N/inch]	8	10	10	10	12	12	12	12	15	15
Initial Adhesion [#]	2	2	2	2	2	3	3	3	3	3
Retentivity [hour]	48
Surface Resistance [mΩ]	50
Long-Term Temperature Resistance [℃]	80
Short-Term Temperature Resistance [℃]	120

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
