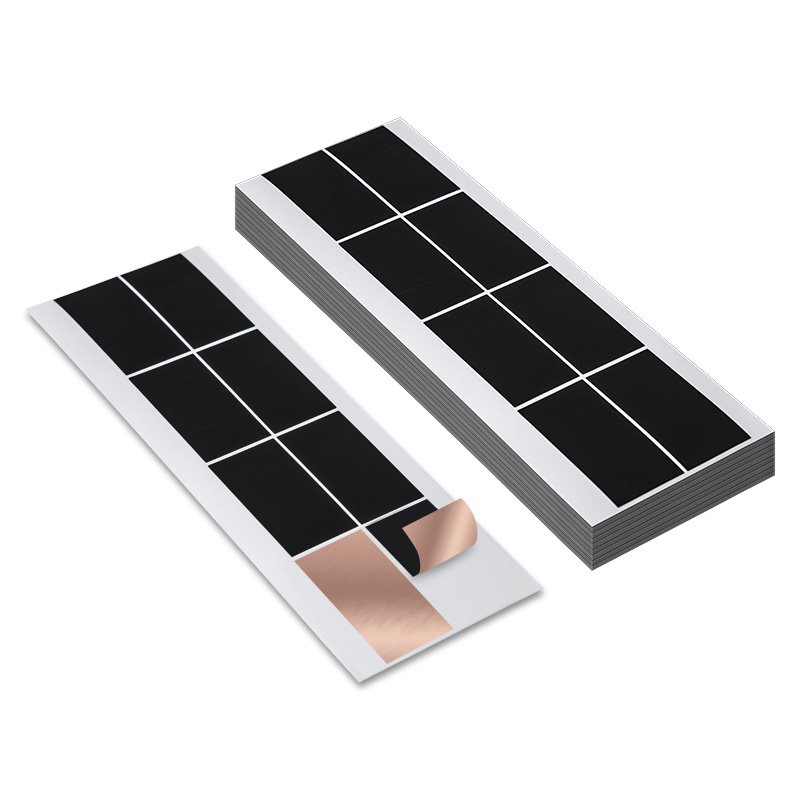

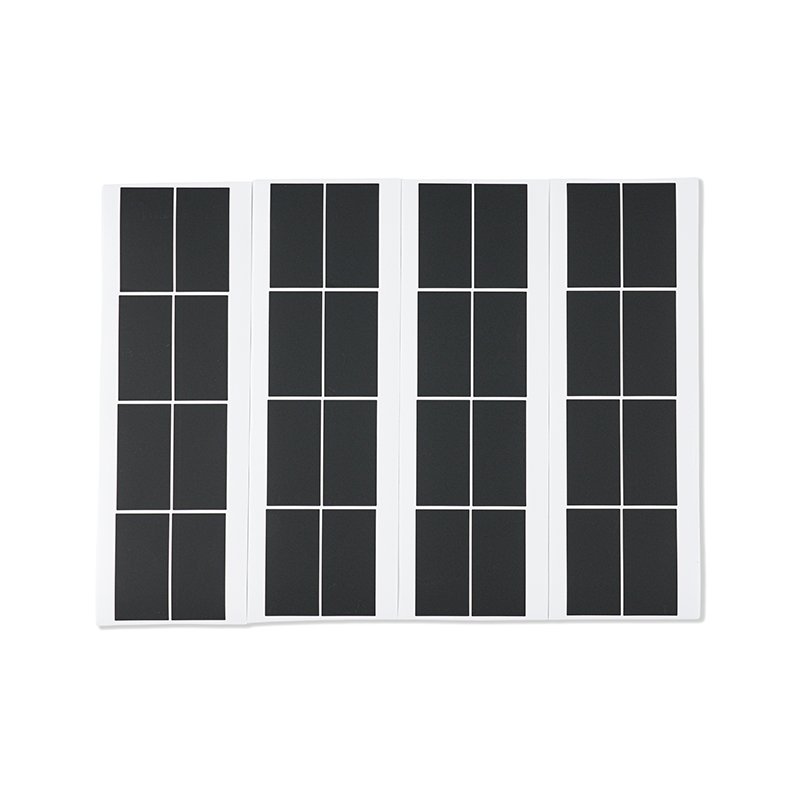

Nano Carbon Copper Foil Tape

Nano carbon copper foil tape is a high-performance adhesive tape composed of a conductive copper foil layer coated with a nano-carbon material and a pressure-sensitive adhesive. This advanced combination offers exceptional electrical conductivity, superior EMI/RFI shielding, excellent thermal management, and strong adhesion. Compared to standard copper foil tapes, the addition of the nano-carbon layer improves contact performance, reduces resistance, and enhances heat dissipation — making it ideal for demanding electronic, automotive, and aerospace applications..

Features:

Outstanding electrical conductivity with low contact resistance.
Excellent EMI/RFI shielding and grounding capabilities.
Enhanced heat dissipation and thermal conductivity.
Strong adhesion to metals, plastics, and composite surfaces.
Flexible and conformable, easy to apply on complex shapes.
Resistant to chemicals, moisture, and temperature extremes.

Applications:

Shielding and grounding of electronic circuits, cables, and enclosures, Thermal management and heat spreading for high-power components, Battery packs and circuitry in electric vehicles (EVs), Aerospace, military, and high-frequency communication equipment, Anywhere advanced conductive and thermal performance is required.

Additional Documents:

Nano Carbon Copper Foil Tape (TDS)

Adhesive Tapes Selection Guide

Category: Nano Carbon Copper Foil Tape

Description

Technical data

Product Code / Technical Parameters	P1503	P1505	P1506	P1508	P1510	P1511	P1512	P1515
Color	Black	Black	Black	Black	Black	Black	Black	Black
Total Thickness [mm]	0.03	0.05	0.06	0.08	0.1	0.11	0.12	0.15
Backing Thickness [mm]	0.009	0.02	0.03	0.035	0.05	0.07	0.07	0.07
Backing	Nano Carbon Copper Foil
Adhesive	Acrylic
180° Peel Strength [N/inch]	10	10	12	12	12	12	12	12
Initial Adhesion [#]	2	2	3	3	3	3	3	3
Retentivity [hour]	48
Long-Term Temperature Resistance [℃]	80
Short-Term Temperature Resistance [℃]	120
Surface Resistance [mΩ]	50
Base Thermal Conductivity [W/mk]	400
Composite Thermal Conduction Coefficient [W/mk]	600-800

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
