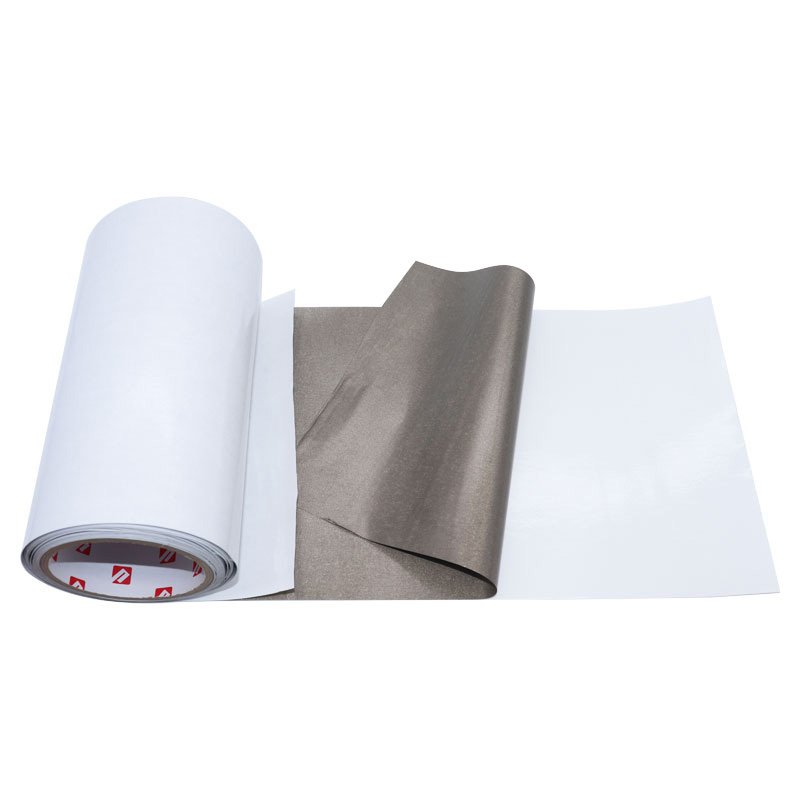

Conductive Double-Sided Tape

Conductive double-sided tape is a high-performance adhesive tape engineered for electrical and electromagnetic applications. It consists of a thin carrier (such as copper foil, aluminum foil, or conductive fabric) coated on both sides with electrically conductive adhesive. This tape ensures conductivity through the thickness (Z-axis) as well as along the surface (X-Y axes), providing effective EMI/RFI shielding, grounding, and bonding for electronic components and assemblies.

Features:

Excellent conductivity in all directions (X, Y, Z axes).
Thin, flexible, and easy to handle.
High adhesion to metals, plastics, and electronic components.
Provides reliable electrical connection between surfaces.
Good shielding effectiveness against electromagnetic interference (EMI).

Applications:

Bonding and grounding in electronics and telecommunications, EMI/RFI shielding of seams, joints, and enclosures, Fixing and grounding flexible printed circuits (FPC), Attaching conductive gaskets and foams, Assembly of touch screens, displays, and sensors.

Additional Documents:

Conductive Double-Sided Tape (TDS)

Adhesive Tapes Selection Guide

Technical data

Product Code / Technical Parameters	P0405D	P0408D	P0410D	P0412D	P0415D	P0420D
Color	White
Total Thickness [mm]	0.05	0.08	0.1	0.12	0.15	0.2
Backing Thickness [mm]	0.03	0.03	0.08	0.08	0.08	0.08
Backing	Conductive Cloth
Adhesive	Conductive Acrylic
180° Peel Strength [N/inch]	12/12	12/12	12/12	15/15	15/15	15/15
Initial Adhesion [#]	2	2	2	2	2	2
Retentivity [hour]	48
Surface Resistance [mΩ]	50
Long-Term Temperature Resistance [℃]	80
Short-Term Temperature Resistance [℃]	120

Legal Disclaimer

The values given are typical values, and do not constitute a specification. We recommend testing the suitability of the self-adhesive tape for the designated application or use. Please contact us or e-mail info@ysdiecut.com to determine product availability.

OEM: Delivers tailor-made adhesive tape products and die-cut components under your brand specifications—designed to integrate seamlessly into your end products.

ODM: Tape ODM (Original Design Manufacturing) refers to a service model where designs, develops, and manufactures ready-to-sell adhesive tape products that can be branded and marketed under your own label.

Tapes Manufacturer
Yousan New Materials

Storage
It is recommended to store in a clean and dry place, away from direct sunlight to prevent damage to the packaging, and to avoid storing with volatile solvents. Store at 25±5°C and humidity at 50±5%.
