3M Adhesive Transfer Tape 467MP is one of the industry’s most widely used high-performance acrylic adhesive films. Engineered with the renowned 3M 200MP high-strength acrylic adhesive, 467MP provides exceptional bond strength, excellent thermal resistance, and long-term durability for demanding industrial and electronics manufacturing applications.
This article provides an in-depth technical overview of 467MP, covering its material structure, performance characteristics, environmental resistance, converting capabilities, and key engineering applications.
1. Material Construction and Adhesive System
1.1 Carrier-Free Adhesive Transfer Construction
3M 467MP is a carrier-less adhesive transfer tape, consisting of:
-
- High-performance acrylic adhesive (200MP) – 0.05 mm (2 mil)
- Polycoated kraft paper liner – 0.08 mm
The absence of a carrier provides:
- A thin, flexible adhesive interface
- Excellent conformability to smooth or slightly textured surfaces
- Strong bond-line integrity with metals and high-surface-energy plastics
1.2 200MP Acrylic Adhesive Characteristics
The 200MP adhesive platform is known for:
- Exceptional shear and peel strength
- Superior resistance to moisture, temperature, UV, and chemicals
- Excellent performance in high-temperature processing
- Reliable long-term adhesion for metal and plastic substrates
It is widely used in high-reliability electronic and industrial assemblies where performance consistency is critical.
2. Key Physical and Mechanical Properties
Velcro tapes (hook and loop tapes) are fastening systems consisting of two sides:
| Property | Typical Value | Test Method |
|---|---|---|
| Adhesive thickness | 0.05 mm (2 mil) | ASTM D3652 |
| Total thickness (with liner) | 0.13 mm | ASTM D3652 |
| Peel adhesion (180° to SS) | 13–16 N/25 mm | ASTM D3330 |
| Static shear | >10,000 minutes @ 22°C | ASTM D3654 |
| Short-term temperature resistance | 204°C | 3M Data |
| Long-term temperature resistance | 149°C | 3M Data |
| Recommended substrates | Stainless steel, aluminum, PET, PC, ABS | — |
These specifications make 467MP ideal for permanent bonding applications that require structural strength and dimensional stability.
3. Environmental and Reliability Performance
3.1 High-Temperature Resistance
467MP withstands:
-
- 204°C (short-term) exposure during processing
- Up to 149°C (continuous) in sustained operating conditions
This makes it suitable for:
- Screen-printing processes
- Heat-assisted lamination
- Post-processing cycles in electronics manufacturing
3.2 Humidity and Moisture Resistance
Tested under 85°C / 85% RH conditions, the adhesive maintains strong shear and peel performance with minimal degradation.
3.3 Chemical Resistance
The adhesive resists:
- IPA
- Industrial cleaners
- Motor oils
- Solvents
- Mild acids and alkalis
467MP maintains stability without edge-lifting, adhesive bleed, or discoloration.
3.4 UV and Weatherability
The tape performs reliably in indoor and outdoor environments, making it suitable for industrial labels, rating plates, and nameplates subjected to UV exposure.
4. Converting & Processing Capabilities
4.1 Die Cutting
The carrier-less adhesive structure provides extremely clean cut edges and is highly compatible with:
- Rotary die cutting
- Flat-bed die cutting
- Laser cutting
This makes 467MP the preferred choice for precision die-cut components in electronics.
4.2 Lamination
Recommended lamination pressure: 4–12 kg/cm²
Optimal temperature: 21–40°C (optional light heating improves wet-out)
4.3 Surface Preparation
For maximum bond strength:
- Surfaces must be clean, dry, and free of oil
- Metal panels should be degreased
- For difficult plastics, 3M Primer 94 may improve adhesion
5. Engineering Applications
5.1 Metal Nameplates & Industrial Rating Plates
Ideal for:
- Stainless steel and aluminum nameplates
- Product identification labels
- Industrial compliance plates
Its high shear strength ensures labels remain securely bonded even under vibration and temperature fluctuations.
5.2 Membrane Switch Assembly
Used in:
- Control panels
- Medical diagnostic equipment
- Keypads
- POS systems
The thin adhesive layer provides excellent switch tactile response and electrical isolation.
5.3 Electronic Displays and Optics
Suitable for bonding:
- Polycarbonate and polyester overlays
- Light-guide films (LGF)
- Plastic display windows
- Structural layers in display modules

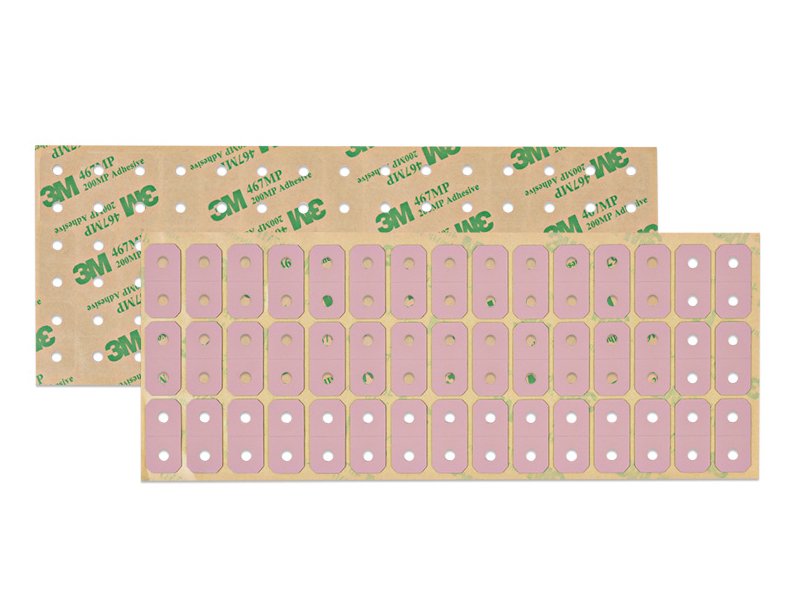

5.4 Precision Die-Cut Components
Commonly used in:
- Dust gaskets
- Cushioning pads
- Optical film layers
- EMI/RFI shielding assemblies
5.5 Engineering Plastics Bonding
Compatible materials:
- PC
- PET
- ABS
- PMMA
- Painted surfaces
6. Comparison: 3M 467MP vs. 3M 468MP
| Parameter | 467MP | 468MP |
|---|---|---|
| Adhesive thickness | 0.05 mm | 0.13 mm |
| Best for | Smooth surfaces, tight spacing | Rough surfaces, gap-filling |
| Peel strength | High | Very high |
| Applications | Nameplates, electronics, overlays | Metal plates, structural laminations |
7. Conclusion
3M Adhesive Transfer Tape 467MP is a proven, high-performance industrial adhesive film designed for precision bonding applications. With its durable 200MP acrylic adhesive system, excellent environmental resistance, and compatibility with modern converting processes, 467MP remains one of the most trusted and versatile adhesive solutions for:
- Electronics manufacturing
- Metal nameplates
- Industrial labels
- Membrane switches
- Precision die-cut components
- Plastic and metal bonding
It delivers consistent performance, long-term reliability, and superior processability, making it an essential material for engineers and manufacturers seeking high-quality bonding solutions.
